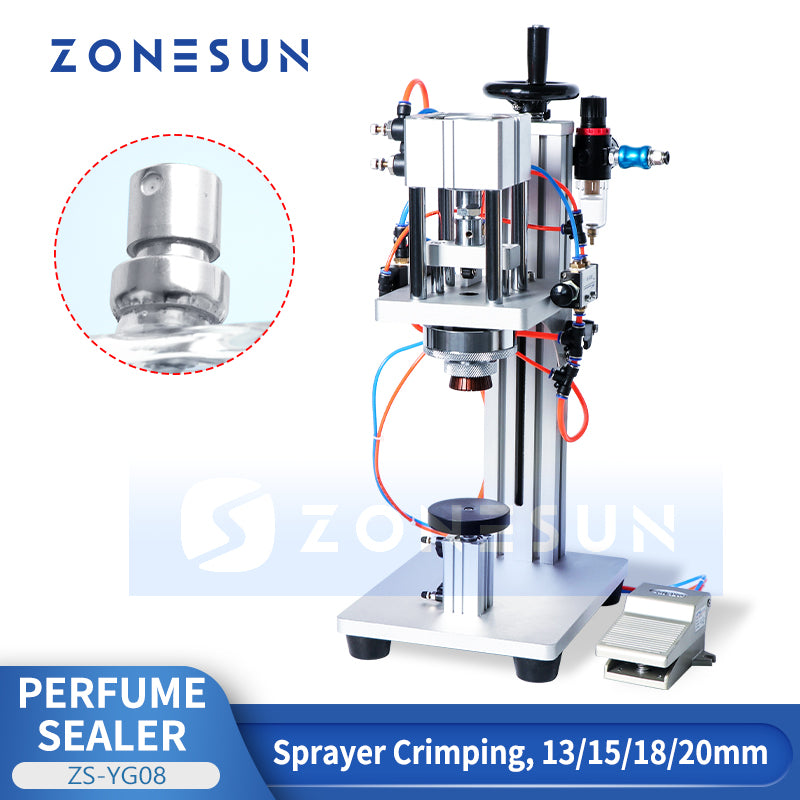

ZONESUN ZS-YG08 Pneumatic Perfume Bottle Spray Caps Capping Crimping Machine

ZONESUN ZS-YG08 13/15/18/20mm Pneumatic Perfume Crimping Capping Machine

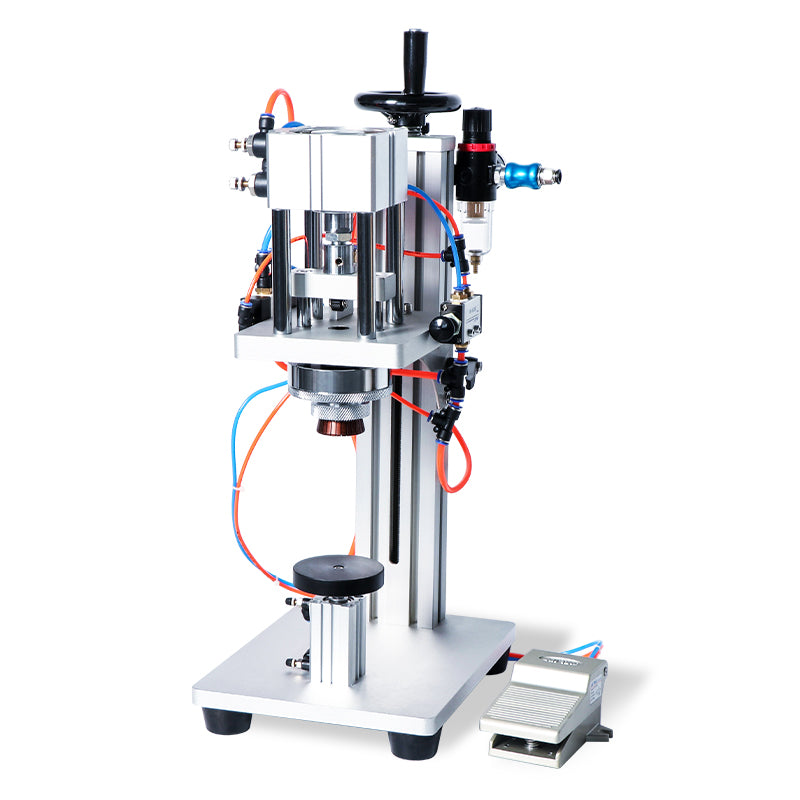

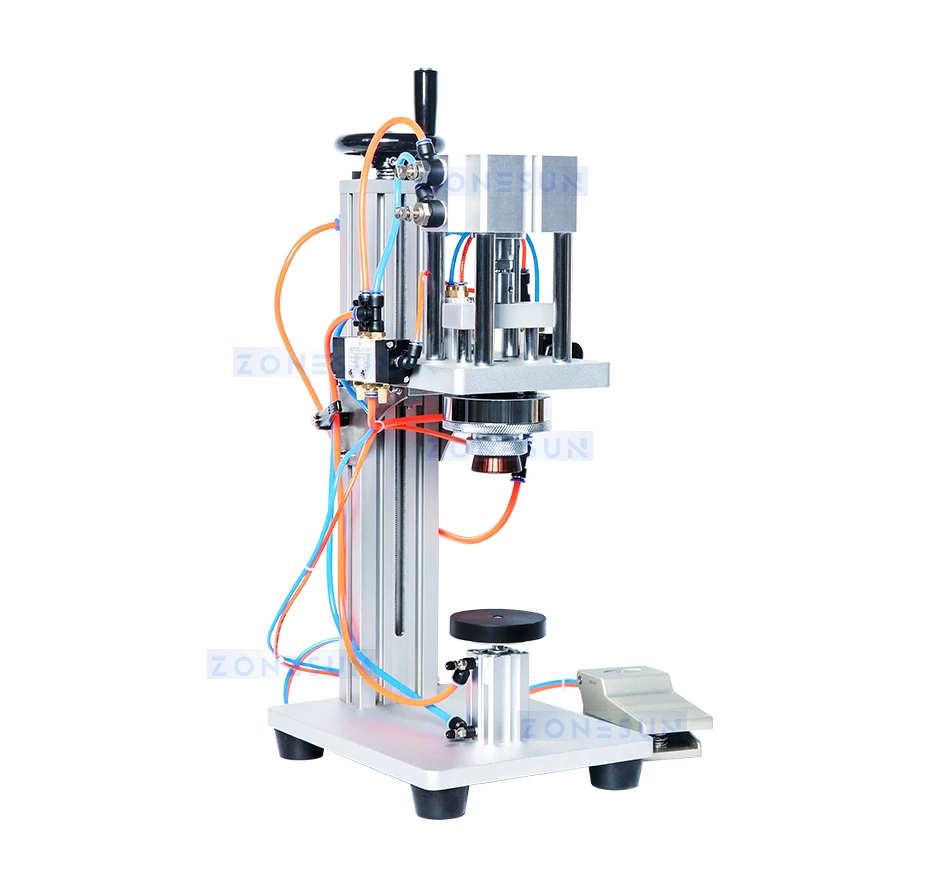

The ZONESUN ZS-YG08 pneumatic perfume capping machine is engineered for efficient and precise sealing of perfume bottles and vials. Operated via foot pedal and powered by compressed air, it features an adjustable working height and interchangeable capping heads to accommodate various bottle sizes. Ideal for cosmetic labs, fragrance production, and boutique packaging, this machine delivers high-speed performance with minimal effort, making it a reliable choice for professional sealing tasks.

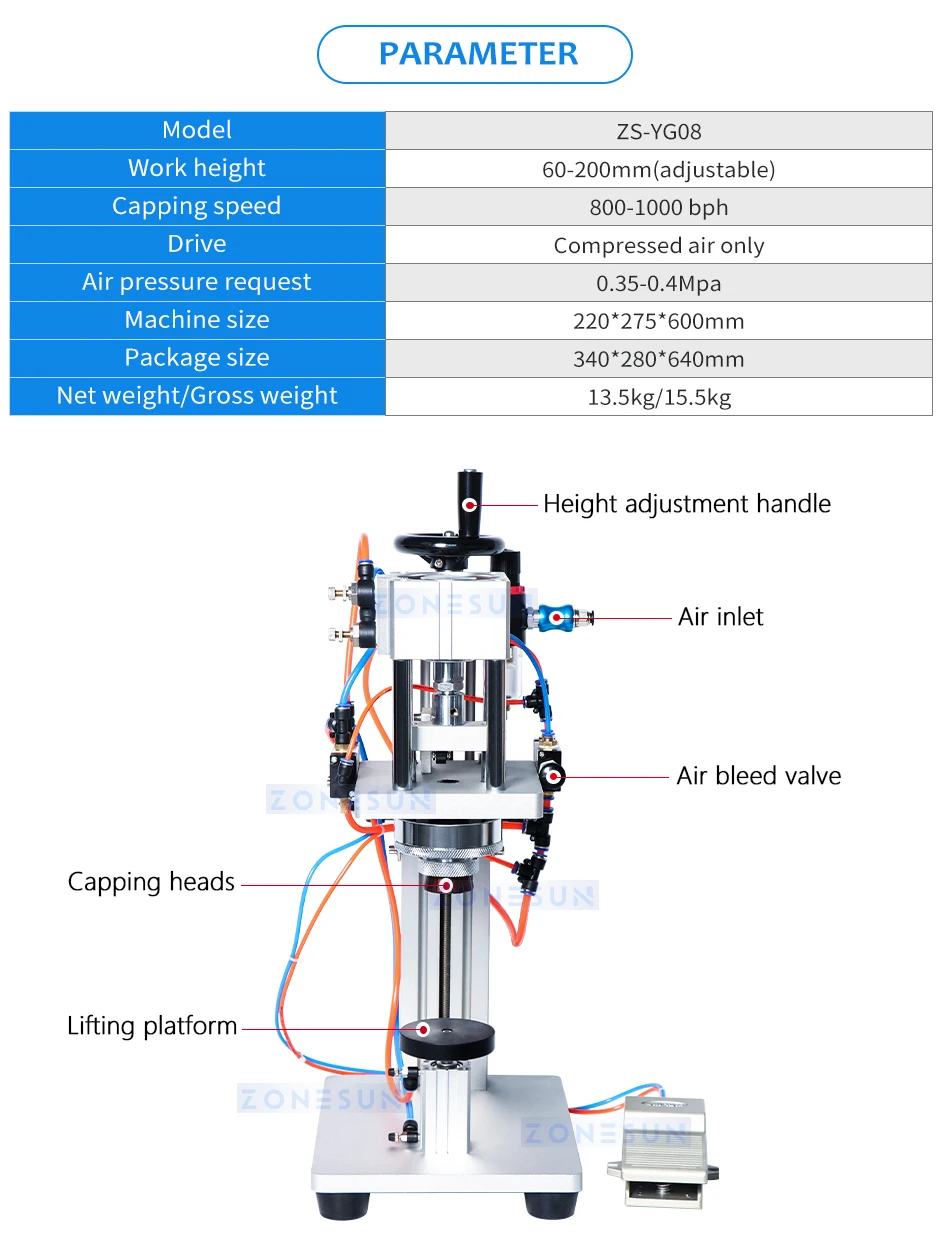

PARAMETER

Model ZS-YG08
Work Height 60–200 mm (adjustable)
Capping Speed 800–1000 bottles/hour
Drive Type Compressed air only
Air Pressure Required 0.35–0.4 MPa
Machine Size 220 × 275 × 600 mm
Package Size 340 × 280 × 640 mm
Net Weight 13.5 kg
Gross Weight 15.5 kg

If you want the machine use for the 20mm and 15mm perfume bottle, please choose machine for 20mm and buy one extra capping head for 15mm. Thank you.

NOTE: Air compressor required,Sold separately

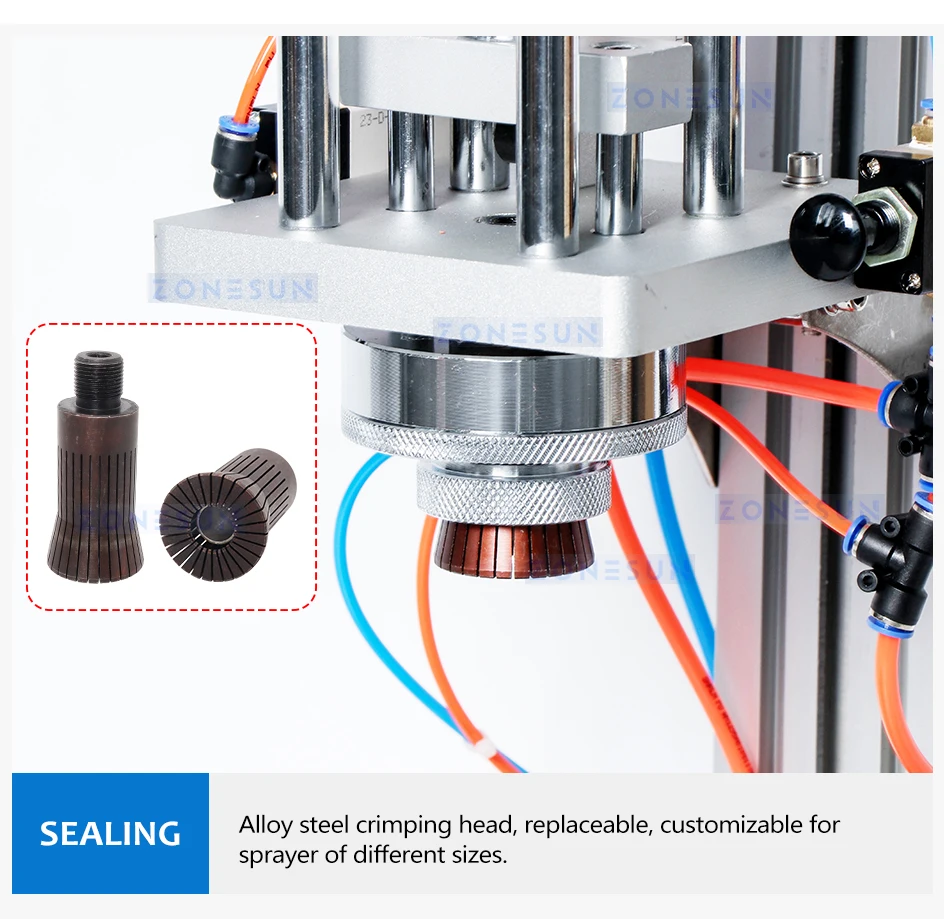

SEALING

Alloy steel crimping head, replaceable, customizable for sprayer of different sizes.

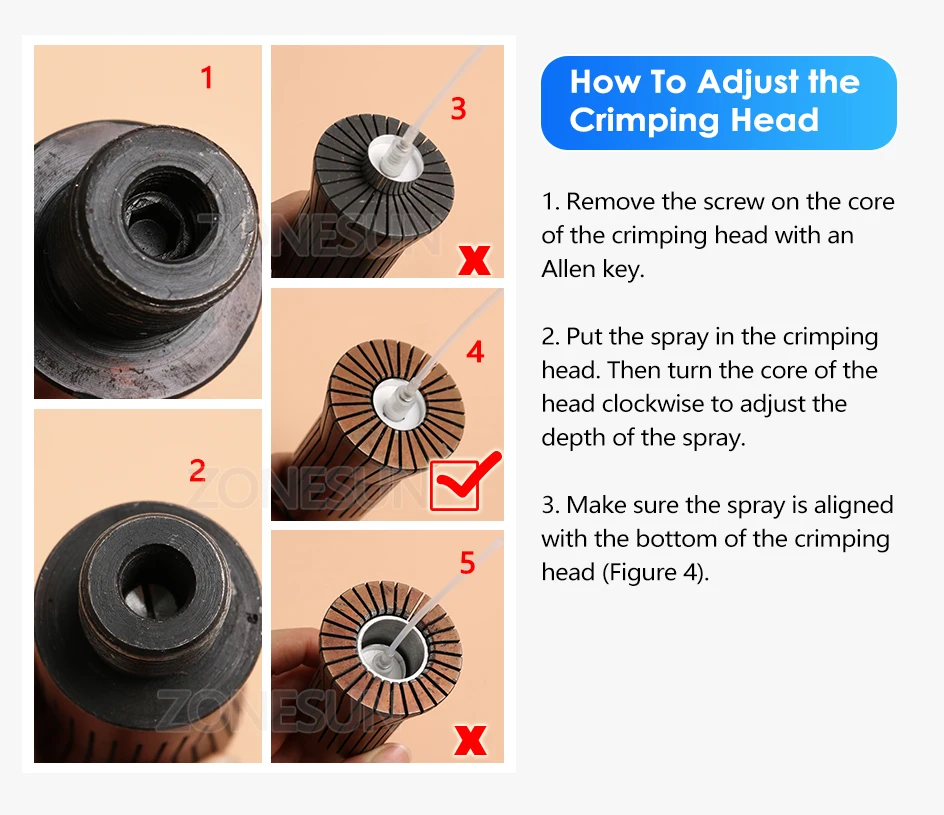

How To Adjust the Crimping Head
1. Remove the screw on the core of the crimping head with an Allen key.
2. Put the spray in the crimping head. Then turn the core of the head clockwise to adjust the depth of the spray.
3. Make sure the spray is aligned with the bottom of the crimping head (Figure 4).

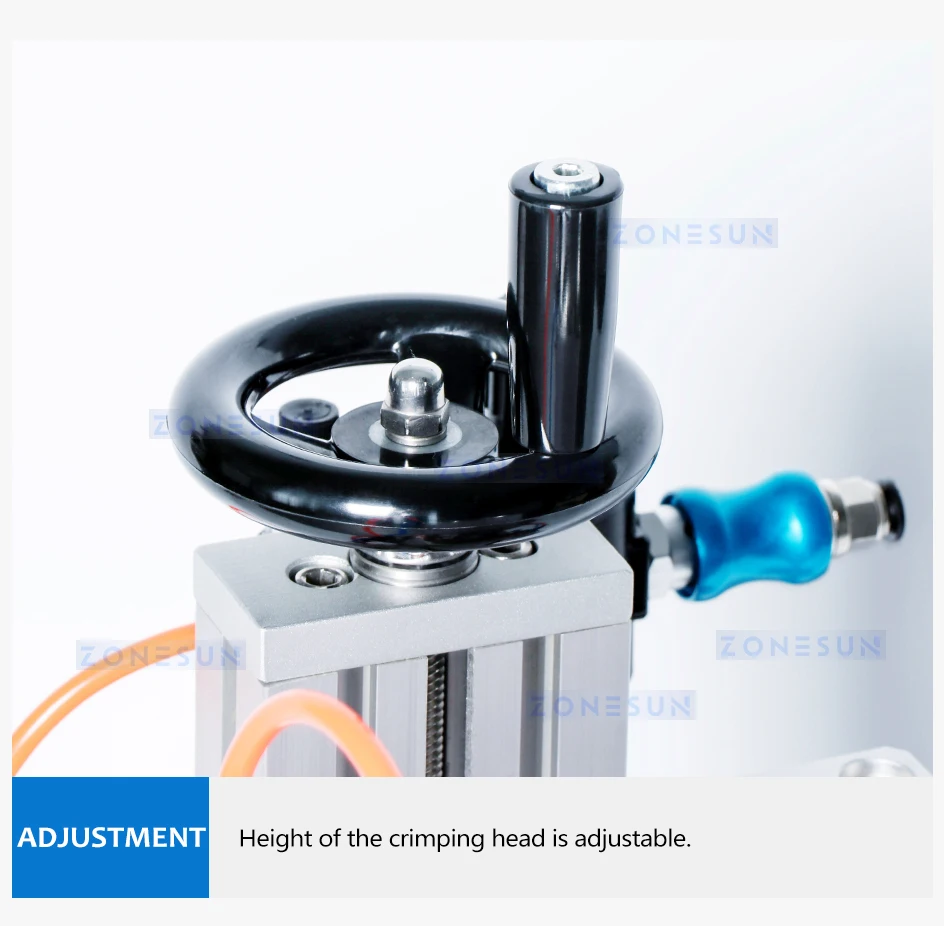

ADJUSTMENT
Height of the crimping head is adjustable.





Features:

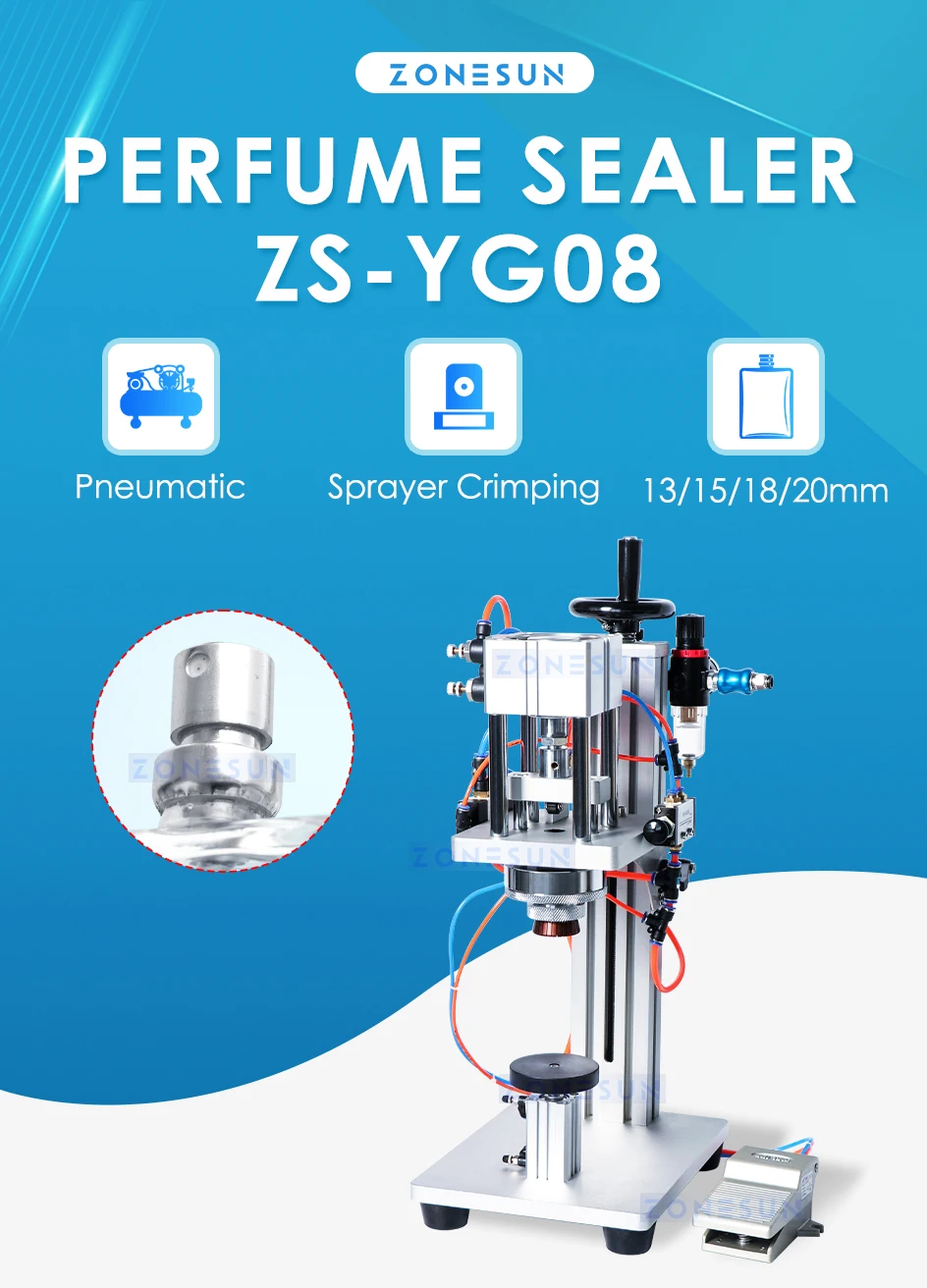

Pneumatic Perfume Bottle Capping

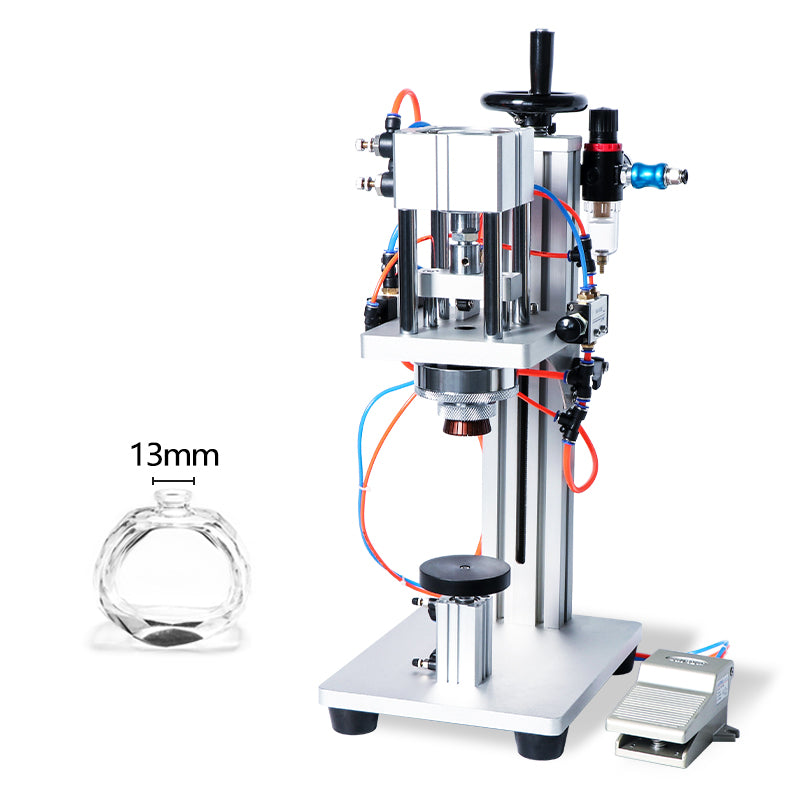

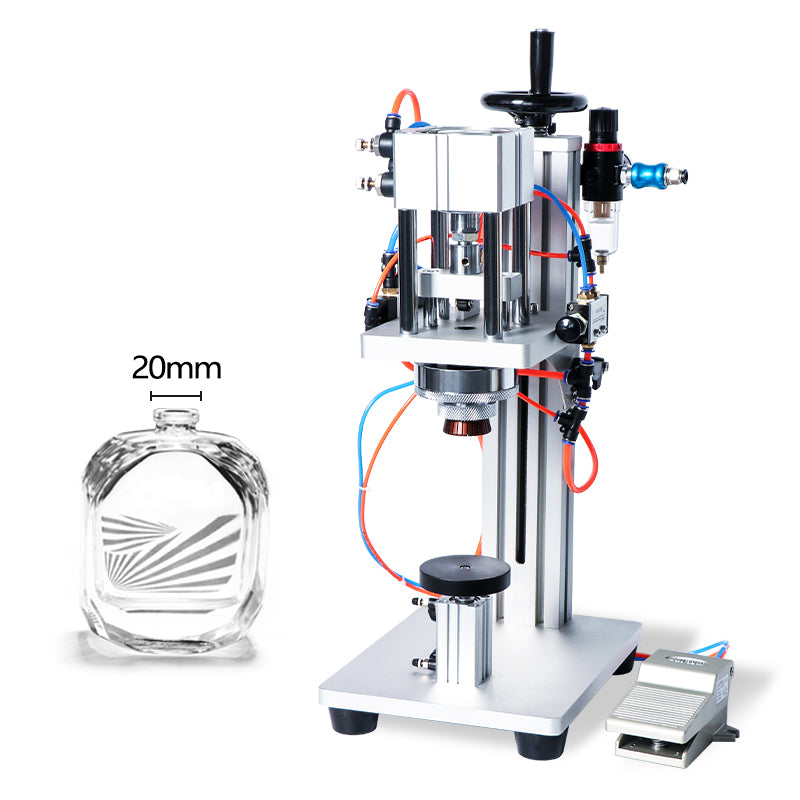

This pneumatic machine crimps sprayer caps on perfume bottles and supports common 13, 15, 18, and 20 mm sizes.

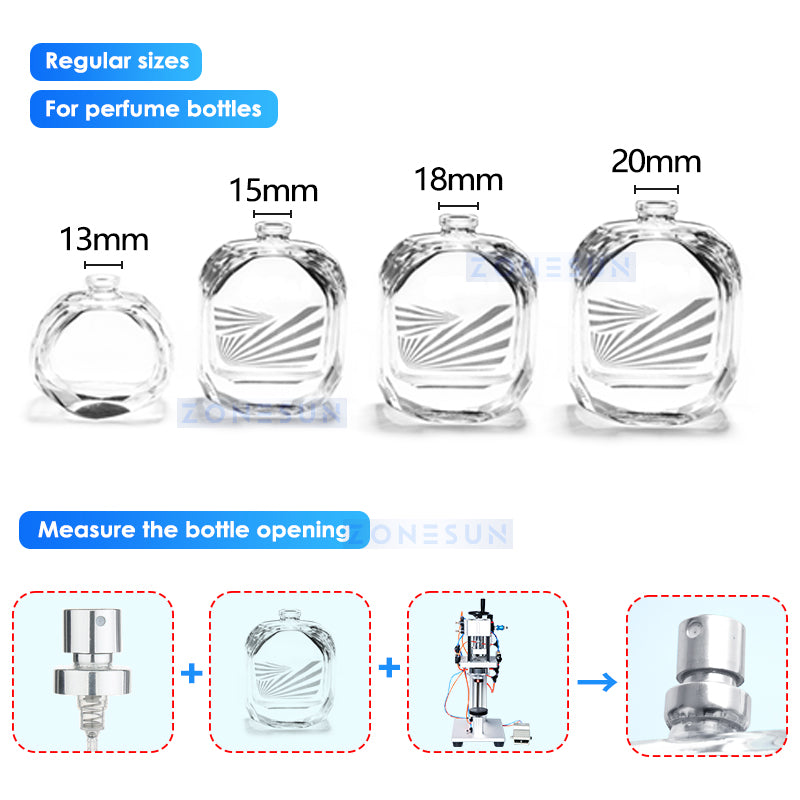

Perfume Bottle Applications

Suitable for crimping the perfume sprayers and bottle types shown in the image.

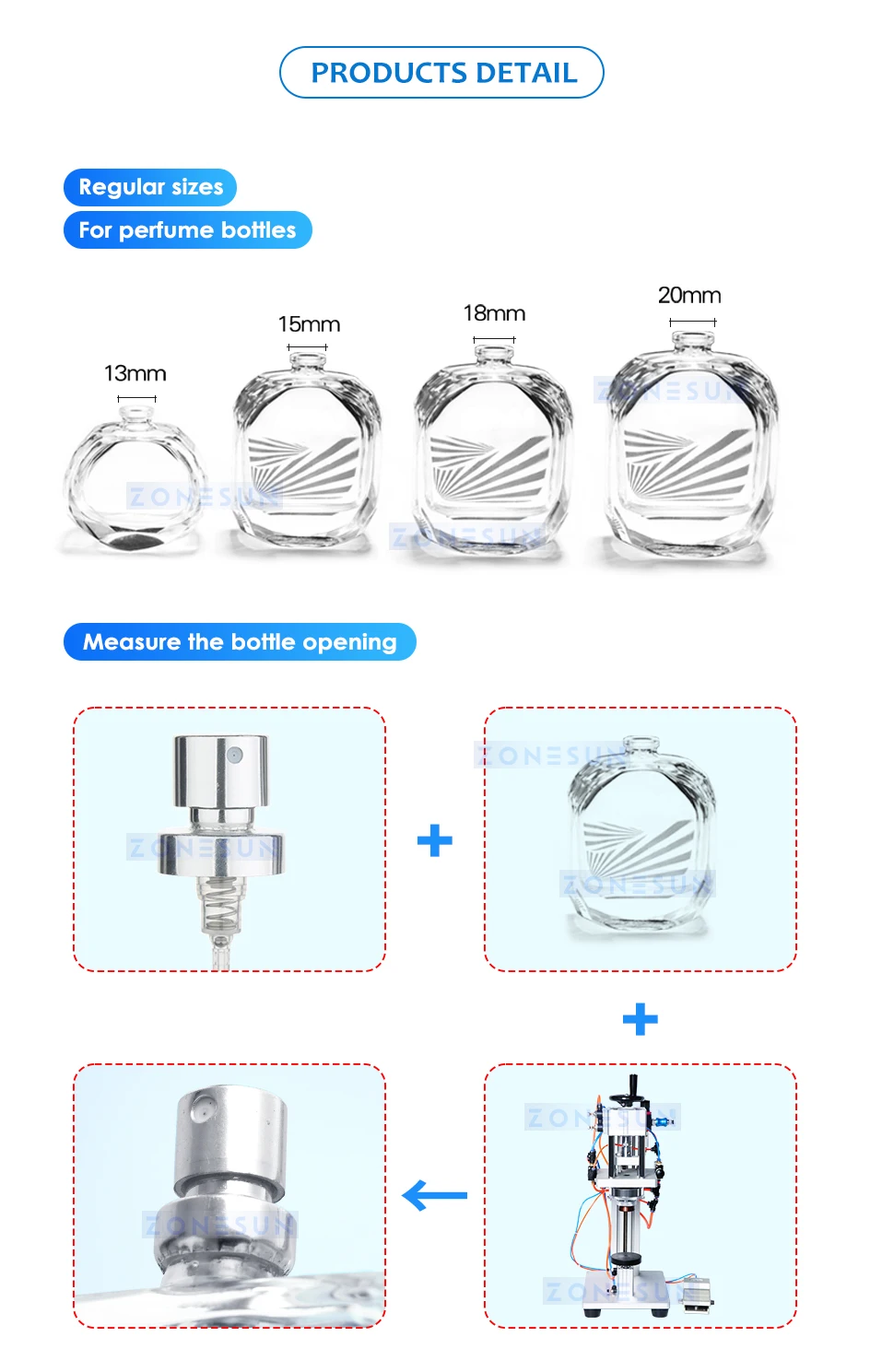

Selecting the Correct Capping Head

Choose the capping head according to the bottle-opening and sprayer size to ensure proper crimping.

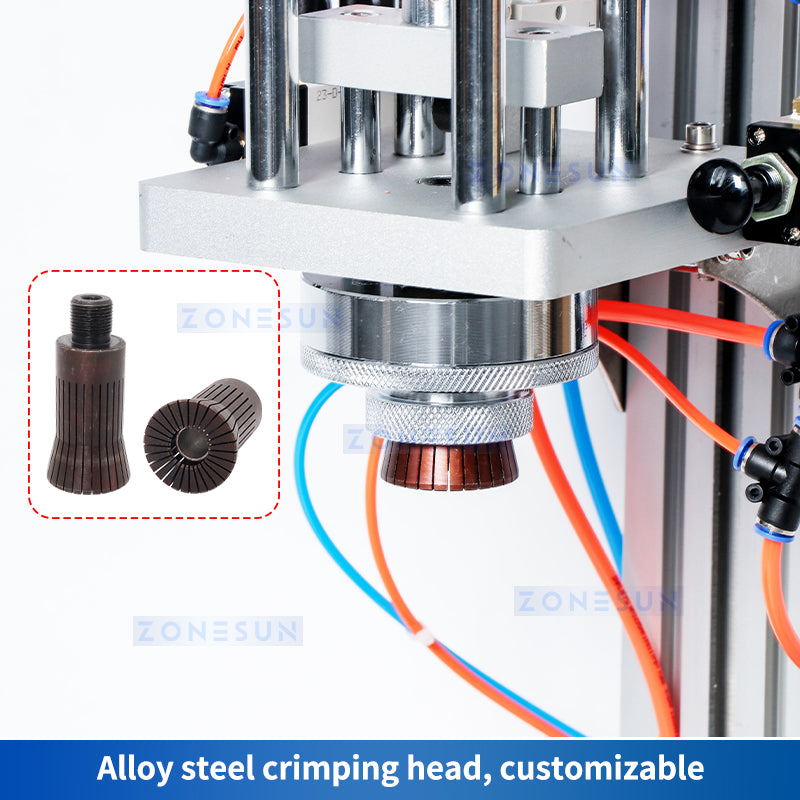

Replaceable Crimping Head

The alloy-steel crimping head is replaceable and can be customized for different sprayer sizes.

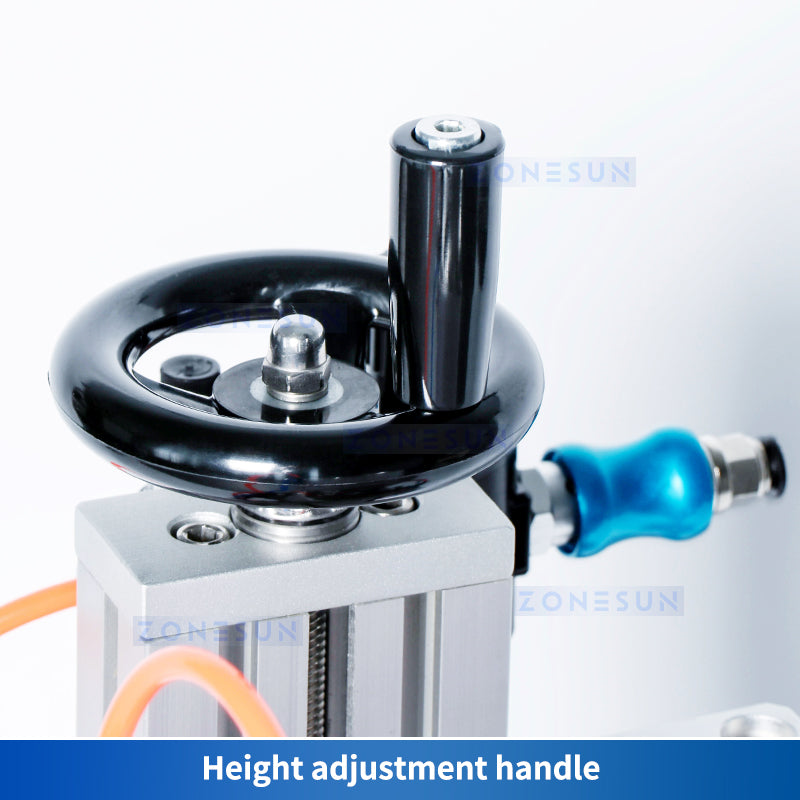

Adjustable Capping Height

The crimping-head height can be adjusted to suit different bottle heights.

Crimping-Head Adjustment

The inner depth of the crimping head can be adjusted so the sprayer cap is crimped evenly.

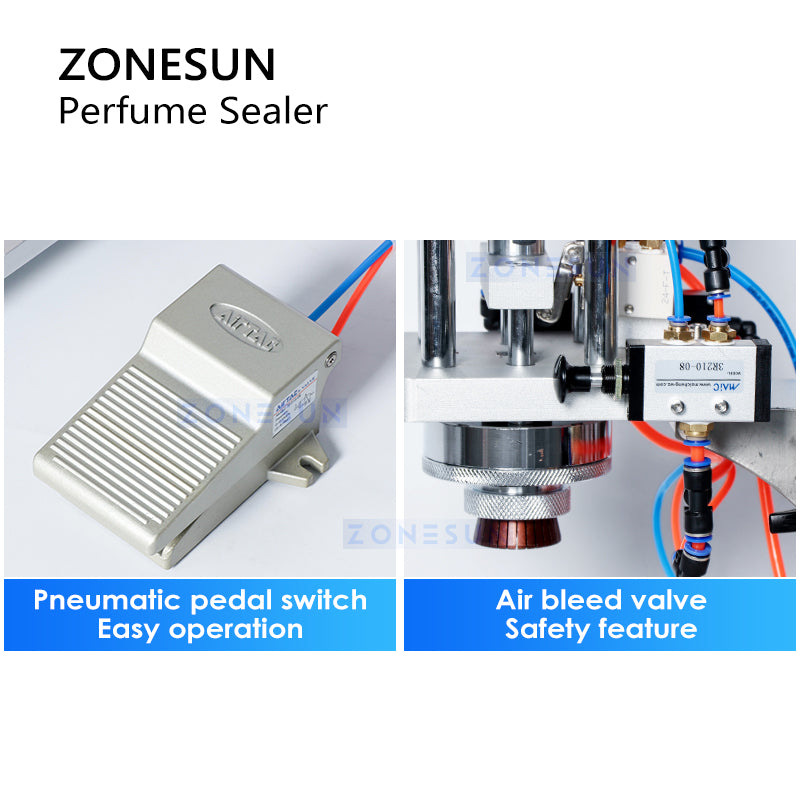

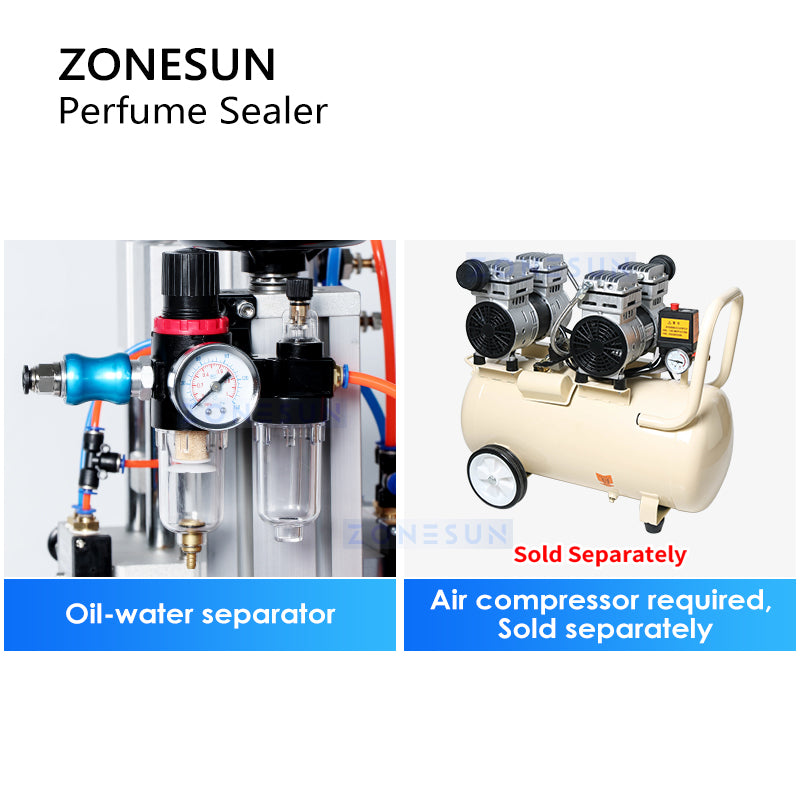

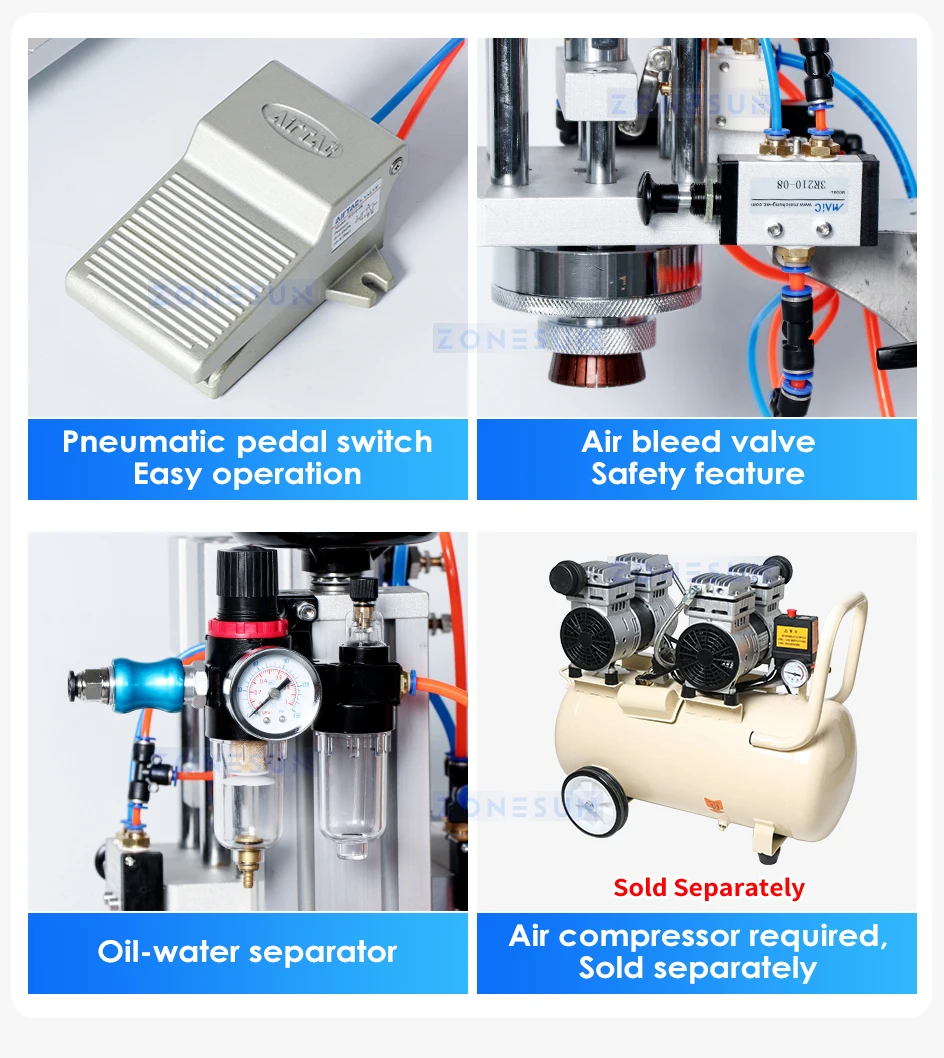

Pneumatic Controls and Air Requirement

The pedal switch supports convenient operation, the bleed valve and oil-water separator support pneumatic control, and an air compressor is required and sold separately.
