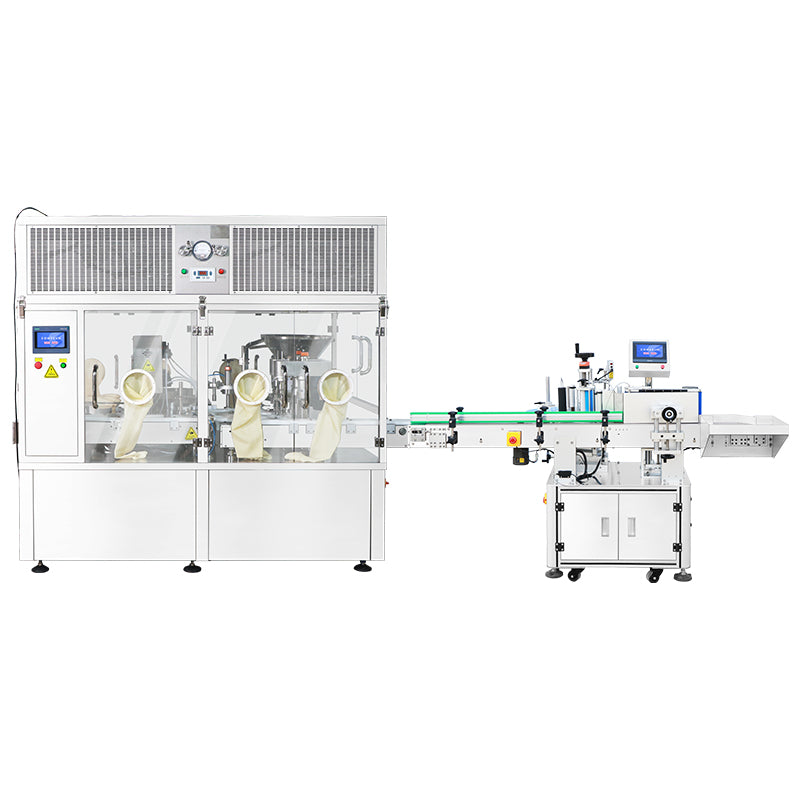

ZONESUN ZS-AFCL9 Automatic Vial Filling Capping and Labeling Line with Laminar Flow Hood

Description

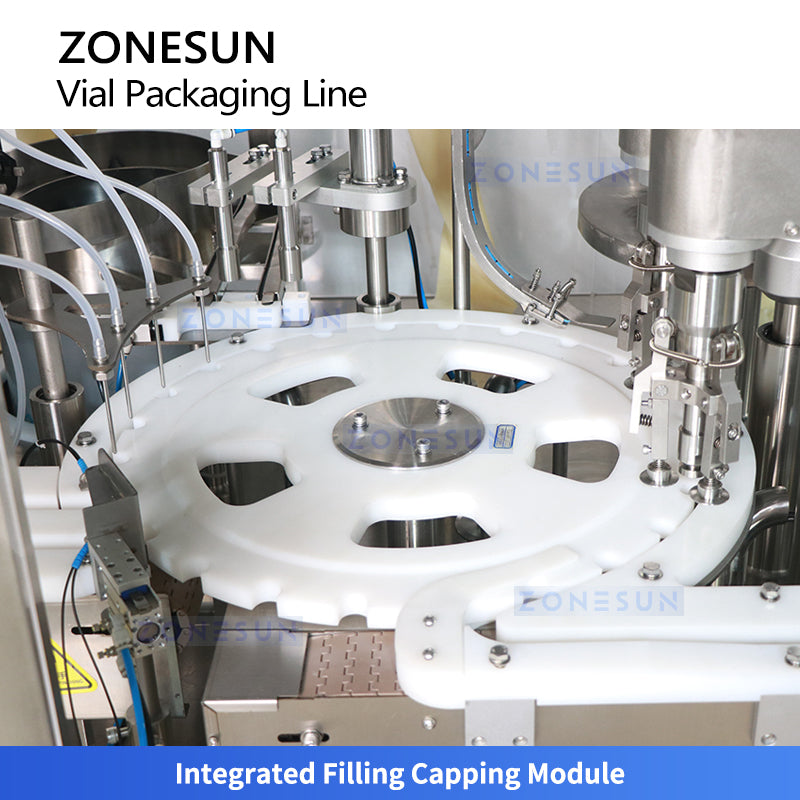

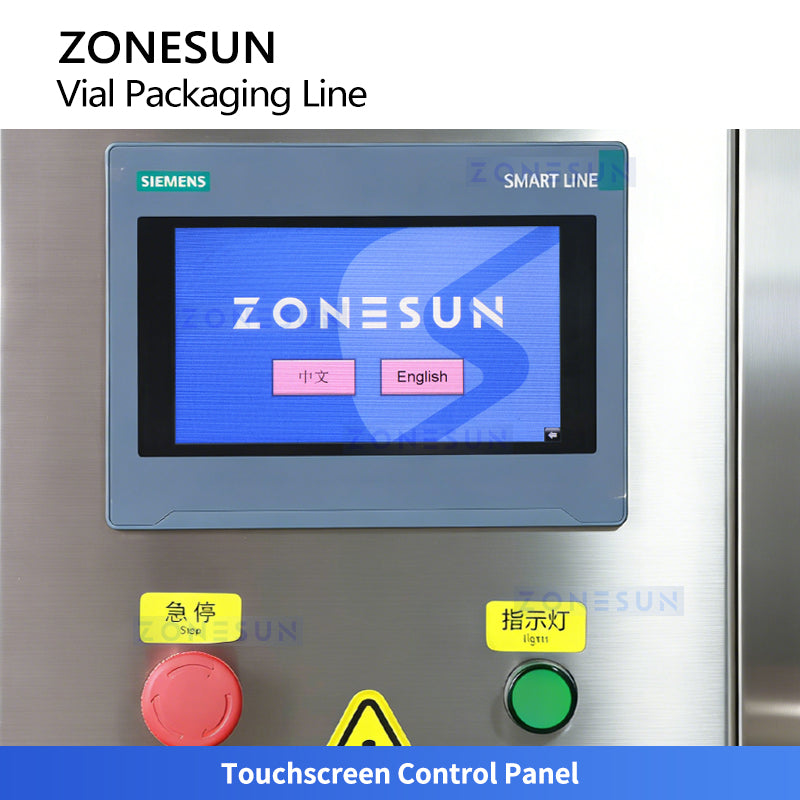

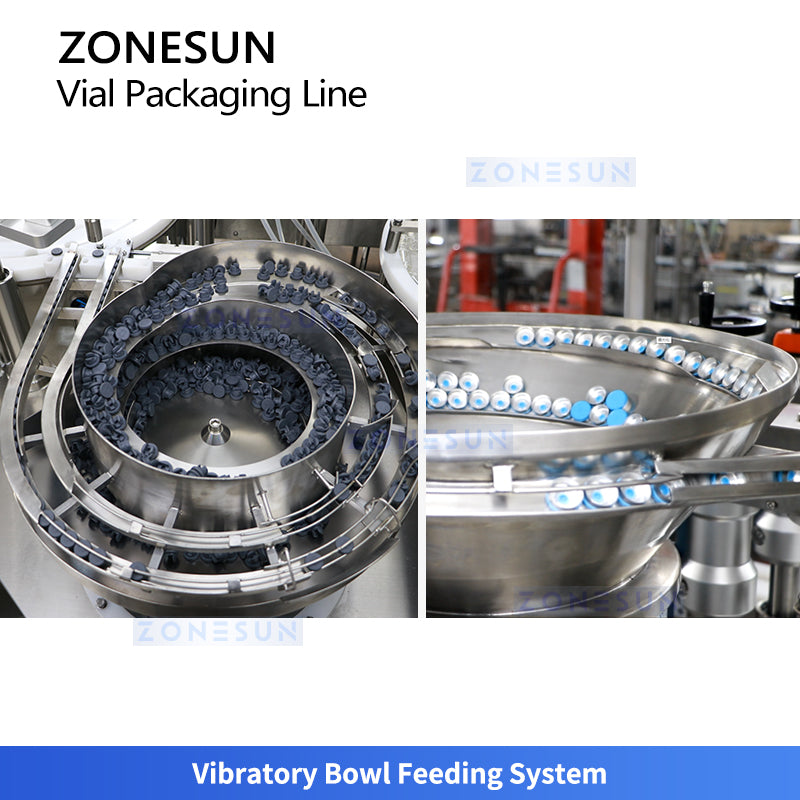

The ZONESUN ZS-AFCL9 is a high-speed automatic vial packaging line for pharmaceutical and cosmetic use. Running up to 3000 bottles per hour, it integrates filling, stoppering, capping, and labeling in a compact cam-driven rotary system. This automatic vial packing line combines an automatic filling capping machine with a side-belt labeling machine for efficient vial processing. Equipped with a laminar flow hood, glove ports, and dust-protection enclosure, it ensures sterile conditions and product safety. With modular design, touchscreen control, and vibratory bowl feeding, the line delivers precise, hygienic, and efficient vial handling. Ideal for pharmaceutical vials, cosmetic bottles, and sterile liquid packaging.

Filling Capping Machine

• Machine Model: ZS-AFC39
• Voltage: 110/220 V, 50–60 Hz
• Power Consumption: 3 kW
• Working Capacity: About 30–60 BPM (based on filling volume)
• Filling Pump: Peristaltic pump
• Filling Nozzle Quantity: 2
• Filling Range: Customized
• Filling Accuracy: ±3%
• Machine Dimensions (L×W×H): About 2330 × 1400 × 2100 mm
• Machine Weight: About 900 kg
• Package Size:
  • Main Machine: About 2530 × 1700 × 1930 mm
  • Laminar Flow Hood: About 2200 × 1270 × 1680 mm
• Package Weight:
  • Main Machine: About 1407 kg
  • Laminar Flow Hood: About 418 kg
  • Total: About 1825 kg

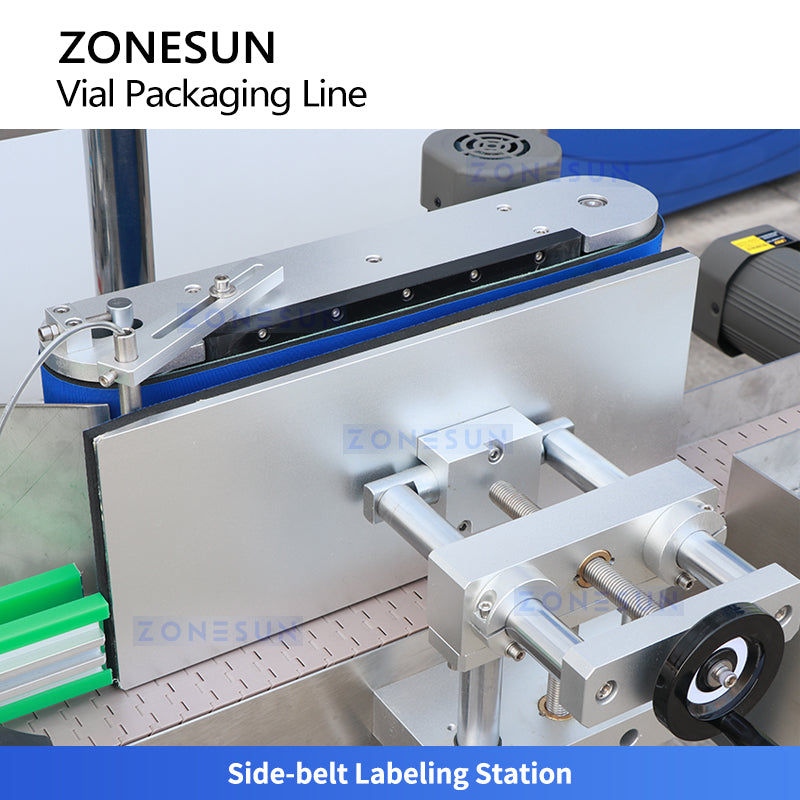

Labeling Machine

• Machine Model: ZS-TB821
• Voltage: 220 V / 110 V, 50–60 Hz
• Power Consumption: 570 W
• Labeling Accuracy: ±1.0 mm
• Labeling Speed: About 40–120 bottles/min (depending on label size)
• Applicable Product Size: Round bottles, diameter φ25–φ120 mm
• Label Size: Width 20–300 mm × Height 20–95 mm
• Label Roll Inner Diameter (ID): φ76 mm
• Label Roll Outer Diameter (OD): φ300 mm
• Machine Dimensions (L×W×H): About 2040 × 1180 × 1370 mm
