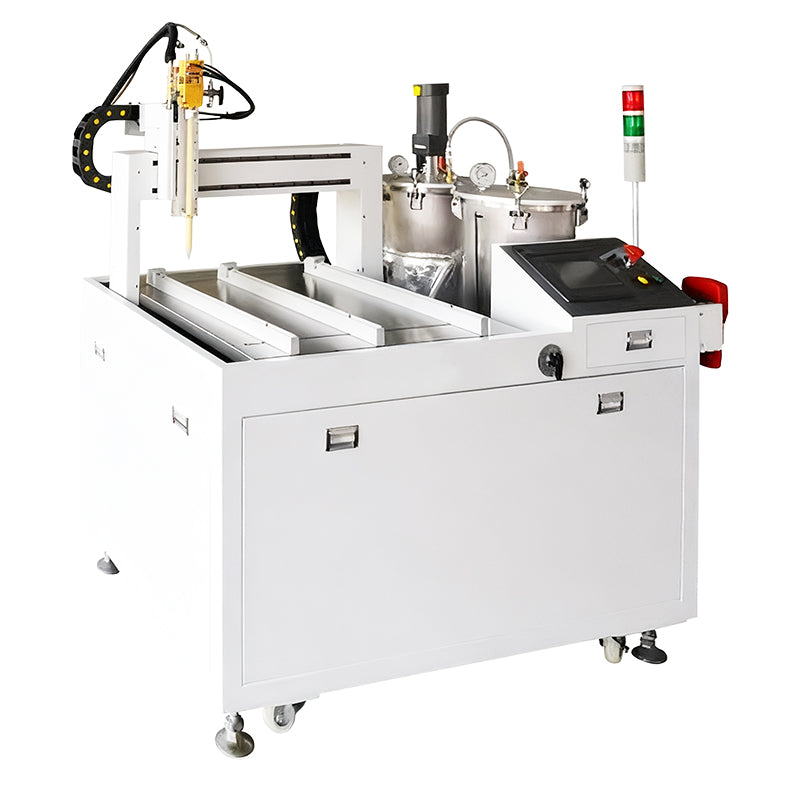

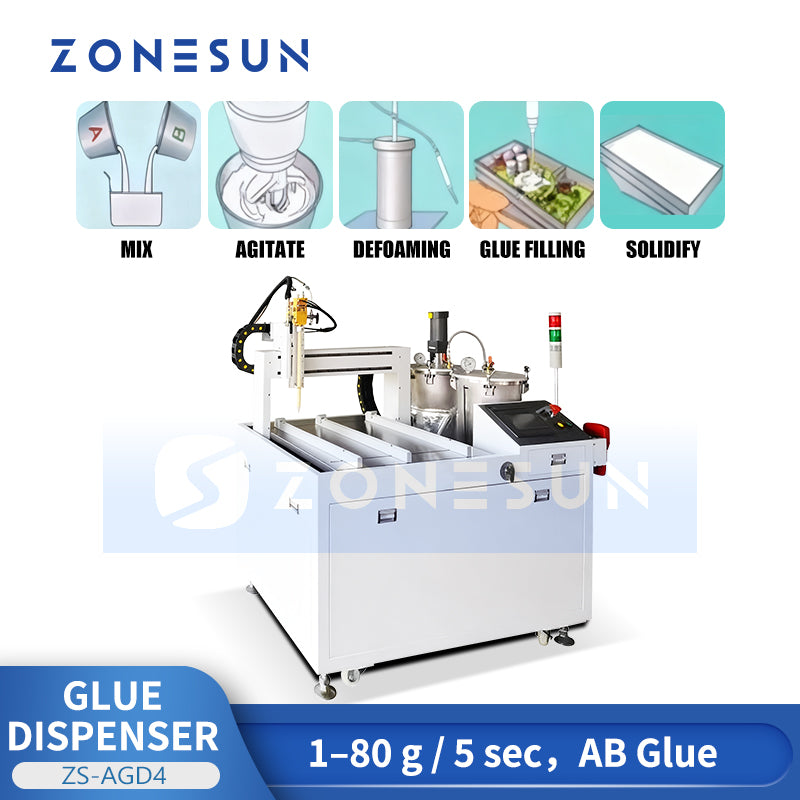

ZONESUN ZS-AGD4 Automatic AB Glue Dispensing and Potting Machine

Description

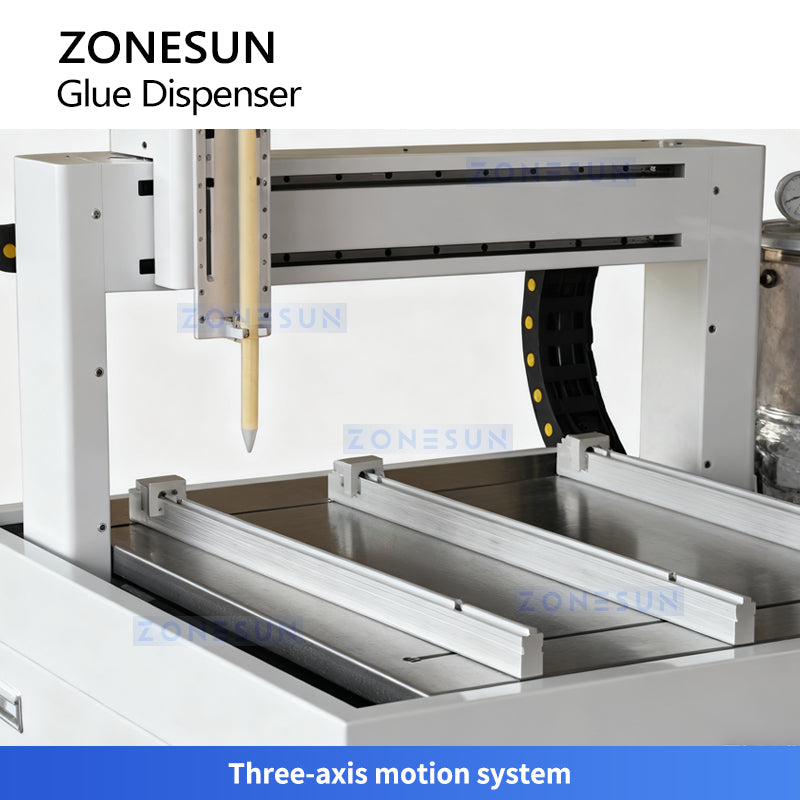

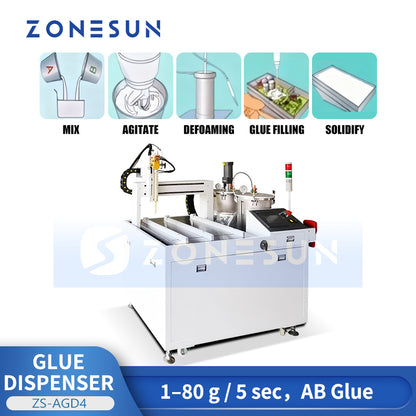

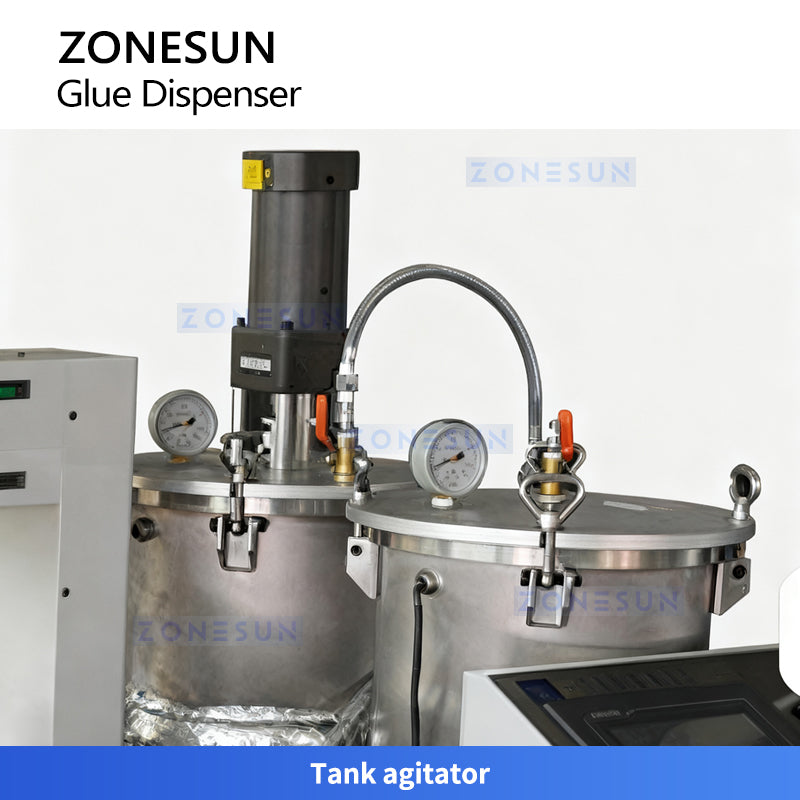

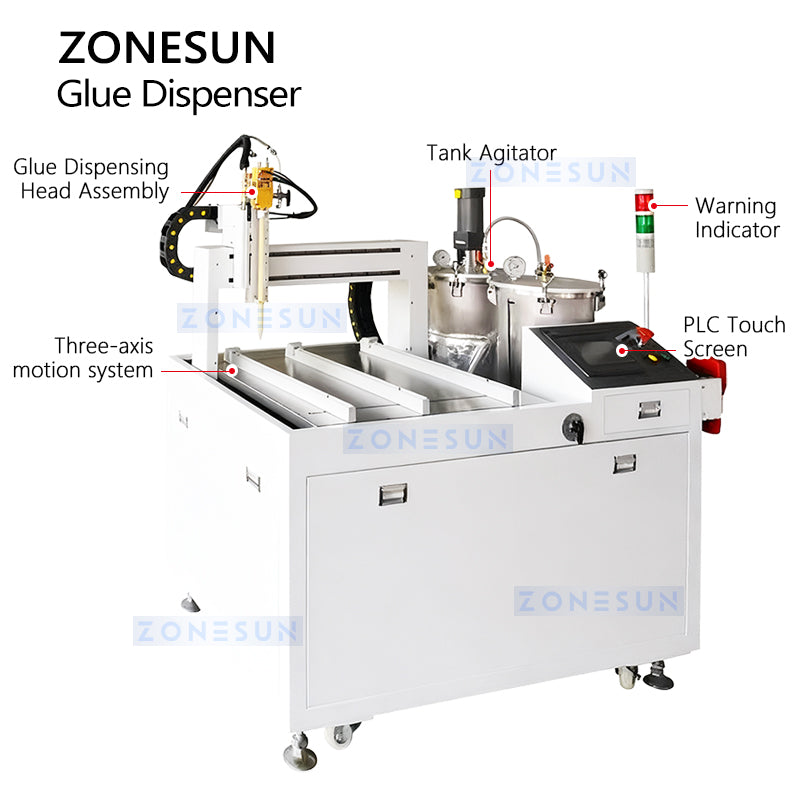

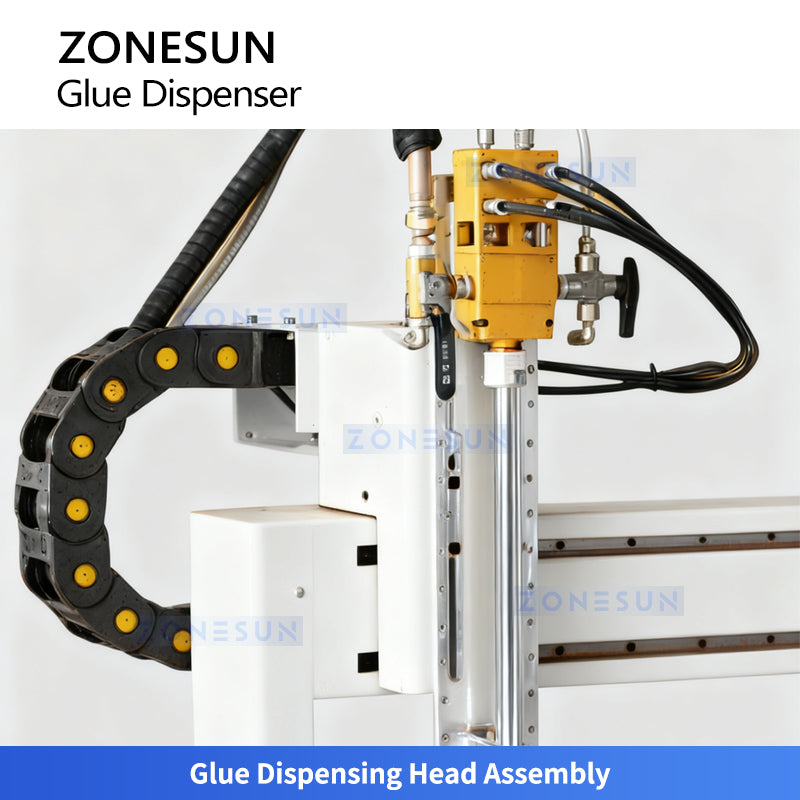

The ZONESUN ZS-AGD4 Automatic Glue Dispensing Potting Machine is engineered for high-precision, programmable dispensing of AB glue, sealants, and other industrial fluids. Featuring a servo-driven three-axis motion system and a modular dispensing head, it supports dynamic or static mixing with glue ratios from 1:1 to 10:1. The integrated tank agitator prevents sedimentation, while the PLC touchscreen enables real-time control and fault monitoring. With ±0.01 mm accuracy and a flow rate of 1–80 g per 5 seconds, it’s ideal for electronics, LED, sensor modules, and automotive components. The machine can operate independently or integrate with existing production lines.

Parameter

• Model: ZS-AGD4
• Dispensing Type: Dynamic mixing / Static dispensing
• Glue Ratio Range: 1:1 to 10:1
• Dispensing Accuracy: ±0.01 mm
• Motion Stroke: X-axis: 500 mm/ Y-axis: 1500 mm/ Z-axis: 100 mm
• Movement Speed: X/Y axis up to 400 mm/s

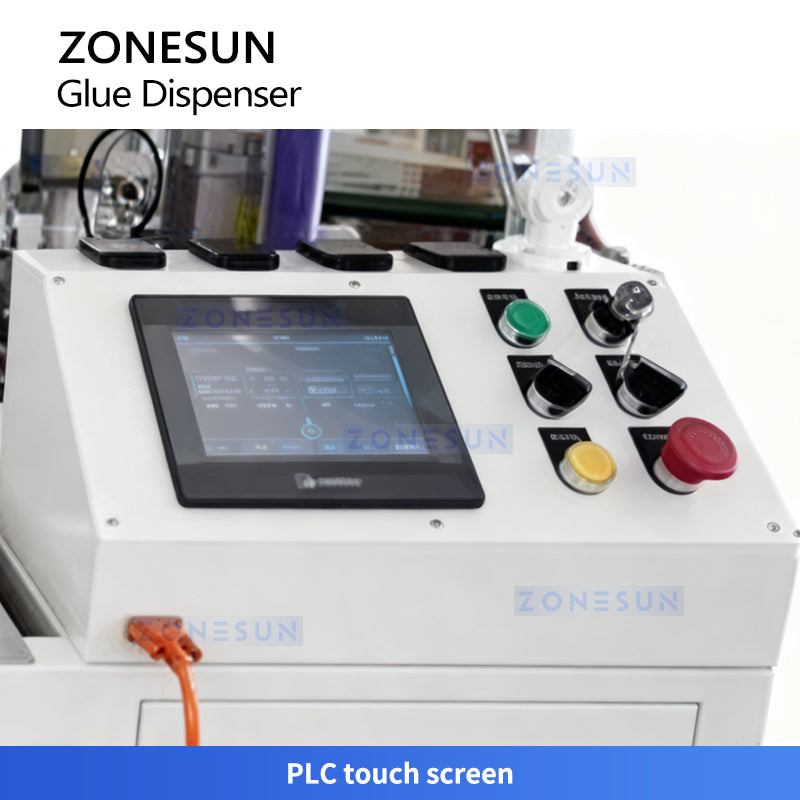

• Control System: PLC + Touchscreen
• Compatible Materials: PU / Silicone / UV glue / etc.
• Glue Flow Rate: 1-80 g/5 sec (depends on glue type)
• Barrel Capacity:A Tank: 30 L / B Tank: 10 L (customizable)
• Trajectory Modes: Point Dispensing / Straight lines / Curves / Circles / Arcs / Squares / Irregular paths
• Power Supply: AC 220V / 50 Hz
• Machine Dimensions: 1100 × 1350 × 1600 mm
• Machine Weight: 260 kg
• Application Fields: Electronics / LED / Automotive / Packaging / Sensor modules
