Description

The ZONESUN ZS-EVF02 Automatic 8-Head Tracking Edible Oil Filling Machine is designed for high-speed filling of cooking oil, vegetable oil, olive oil, sunflower oil, shampoo,hand soap, body wash and other compatible liquid products. Its 8 filling heads move synchronously with bottles during filling, allowing continuous conveyor movement without stopping each bottle at the filling station. With servo-controlled filling, a 500–5000 ml filling range, and speeds of 60–100 bottles/min, it provides efficient and accurate filling for high-output edible oil bottling lines.

Parameter

• Machine Model: ZS-EVF02
• Number of Filling Heads: 8
• Filling Method: Tracking Filling
• Filling Range: 500–5000 ml
• Filling Speed: 60–100 Bottles/min
• Speed Reference: Depending on Material and Bottle Diameter
• Filling Accuracy: ±1%
• Filling Control: Servo Motor Control
• Power: 6 kW
• Voltage: 380 V
• Working Air Pressure: 0.6–0.8 MPa
• Air Consumption: 6–7 m³/min
• Conveying Method: Continuous Conveyor
• Control System: PLC Touchscreen
• Machine Dimensions (L × W × H): 6000 × 1500 × 2100 mm
• Machine Weight: 1000 kg
• Safety Structure: Transparent Safety Enclosure

Key Features

• 8-Head Tracking Filling System: Eight filling nozzles operate simultaneously while following moving bottles during dispensing, supporting high-speed continuous filling.
• Continuous Tracking Filling: The filling heads move synchronously with bottles, allowing the conveyor to continue running instead of stopping every bottle for filling.
• Servo-Controlled Filling System: Servo motor control supports stable and accurate filling performance during high-speed production.
• PLC Touchscreen Control: Provides centralized adjustment of filling volume, filling speed, and other operating parameters.
• 500–5000 ml Filling Range: Supports a wide range of larger bottle and container formats commonly used for edible oils.
• 60–100 Bottles/Min Output: The 8-head configuration provides high production capacity depending on product characteristics and bottle diameter.
• Continuous Conveyor System: Continuously transports bottles through the filling station and enables connection with upstream and downstream packaging equipment.
• Transparent Safety Enclosure: Transparent safety doors provide clear visibility of the filling process while limiting access to moving components.
• Recipe Storage: Operating parameters for different products or bottle formats can be saved and recalled to simplify production changeover.
• Wide Bottle Compatibility: Can accommodate compatible upright containers with vertically oriented openings, including certain irregularly shaped bottles.

Benefits

• Continuous Filling Without Bottle Stops — Tracking filling heads follow bottles during dispensing, reducing conventional stop-and-go operation.
• 60–100 Bottles/Min High-Speed Output — Eight filling heads combined with tracking technology support high-output bottling production.
• Servo-Controlled Filling — Servo motor control supports stable operation and accurate product dosing during continuous production.
• 500–5000 ml Wide Filling Range — Suitable for multiple edible oil bottle and container sizes.
• 8 Bottles Filled Simultaneously — Eight filling nozzles increase throughput by processing multiple containers at the same time.
• Faster Product Changeover — Recipe storage allows saved operating parameters to be recalled when switching between products or bottle formats.
• Flexible Bottle Compatibility — Suitable for different upright bottles, including compatible irregularly shaped containers.
• Continuous Line Integration — Conveyor design enables smooth connection with capping, labeling, coding, and end-of-line equipment.
• Visible Filling Process — Transparent safety doors allow operators to observe machine operation while limiting direct access to moving components.

Application

Ideal for automatic high-speed filling of cooking oil, edible oil, vegetable oil, olive oil, sunflower oil, corn oil, soybean oil, and other compatible oils. The 500–5000 ml filling range makes the ZS-EVF02 particularly suitable for larger retail and household oil containers.

According to the supplied document, the machine can also handle compatible liquid products such as shampoo, hand soap, and body wash, expanding its use beyond edible oil when the product characteristics and filling requirements are suitable.

PLC Touchscreen Control

Allows convenient setting of filling volume, speed, and operating parameters through a centralized control interface.

8-Head Filling System

Eight filling nozzles operate simultaneously to support efficient multi-bottle filling and higher production output.

Tracking Filling System

The filling heads move synchronously with bottles during filling, enabling continuous conveying without stopping each bottle for filling.

Continuous Conveyor System

Continuously transports bottles through the filling station for smooth integration with upstream and downstream equipment.

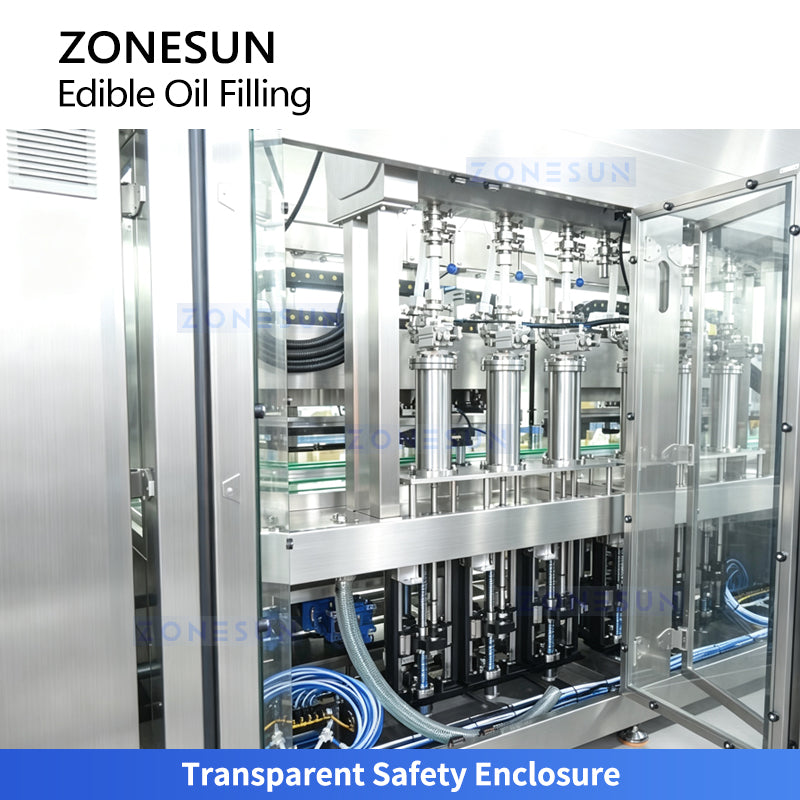

Transparent Safety Enclosure

Transparent safety doors provide clear visibility of the filling process while limiting access to moving components.

Why Choose the ZONESUN ZS-EVF02?

✅ Tracking Filling System — Continuous Filling Without Stopping Bottles: The filling heads move synchronously with bottles while dispensing, allowing containers to continue moving through the filling station instead of stopping for every filling cycle. This is the main advantage of the ZS-EVF02 over a conventional stop-and-fill system.

✅ 8-Head Filling System — High-Output Multi-Bottle Production: Eight filling nozzles operate simultaneously, allowing multiple bottles to be filled at the same time and supporting higher production capacity.

✅ 60–100 Bottles/Min — Designed for High-Speed Bottling: Combining eight filling heads with tracking technology provides approximately 60–100 bottles/min, depending on product characteristics and bottle diameter.

✅ Servo-Controlled Filling — Stable & Accurate Operation: The filling system uses servo motor control to support stable and accurate filling performance during high-speed continuous production.

✅ 500–5000 ml Filling Range — Suitable for Large Oil Bottles: The machine supports filling volumes from 500 to 5000 ml, covering a wide range of edible oil packaging formats from standard household bottles to larger containers.

✅ PLC Touchscreen Control — Centralized Production Management: Operators can adjust filling volume, speed, and other operating parameters through the centralized touchscreen interface for convenient machine setup and operation.

✅ Recipe Storage — Faster Product Changeover: Parameters for different products or bottle formats can be stored as recipes and recalled when needed, helping simplify machine setup when switching production.

✅ Wide Bottle Compatibility — Handles Different Container Shapes: The machine can accommodate a wide range of bottles that remain upright on the conveyor with their openings vertically upward, including compatible irregularly shaped containers.

✅ Continuous Conveyor — Smooth Production Line Integration: Bottles move continuously through the filling station, allowing the machine to connect smoothly with compatible upstream and downstream equipment.

✅ Transparent Safety Enclosure — Clear Process Visibility: Transparent safety doors allow operators to observe the filling process while limiting direct access to moving machine components.

Ideal Applications

Cooking Oil: Ideal for high-speed automatic filling of cooking oils into compatible bottles and larger containers.

Vegetable Oil: Suitable for various compatible vegetable oils requiring continuous multi-head filling.

Olive Oil: Can be used for compatible olive oil products packaged in bottles within the 500–5000 ml filling range.

Sunflower Oil: Suitable for high-output sunflower oil bottling applications.

Corn Oil: Can be configured for automatic filling of compatible corn oil products.

Soybean Oil: Suitable for continuous filling of soybean oil into compatible upright containers.

500–5000 ml Oil Bottles: Particularly suitable for edible oil packaging formats ranging from 500 ml to 5 L.

Irregularly Shaped Bottles: Compatible irregular bottles can be handled provided they remain upright on the conveyor with their openings facing vertically upward.

Shampoo: The supplied document also lists shampoo as a compatible liquid application.

Hand Soap: Suitable for compatible hand soap products when their filling characteristics match the machine configuration.

Body Wash: Can also be configured for compatible body wash filling applications.

High-Output Edible Oil Production: Particularly suitable for manufacturers requiring continuous bottle conveying + multi-head filling + 60–100 bottles/min output.

Complete Edible Oil Bottling Lines: The continuous conveyor can connect with bottle feeding, capping, labeling, coding, and end-of-line packaging equipment to create a complete automatic edible oil bottling line.

Customizable 2-Head Tracking Filling Lines: The document also specifically references a “Customizable 2-head Tracking Edible Oil Filling Production Line”, indicating that customized lower-head-count tracking configurations can be developed for different production requirements.
