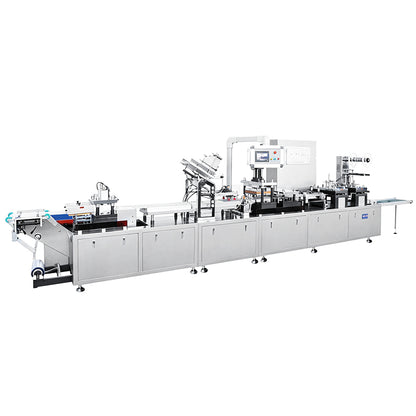

ZONESUN ZS-HFQ2 Automatic Blister Packaging Machine for Toothbrush Hardware Card PVC PET Blister Sealing
ZONESUN ZS-HFQ2 Automatic Blister Packaging Machine for Toothbrush Hardware Card PVC PET Blister Sealing
Regular price
$47,999.00 USD
Regular price
Sale price
$47,999.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

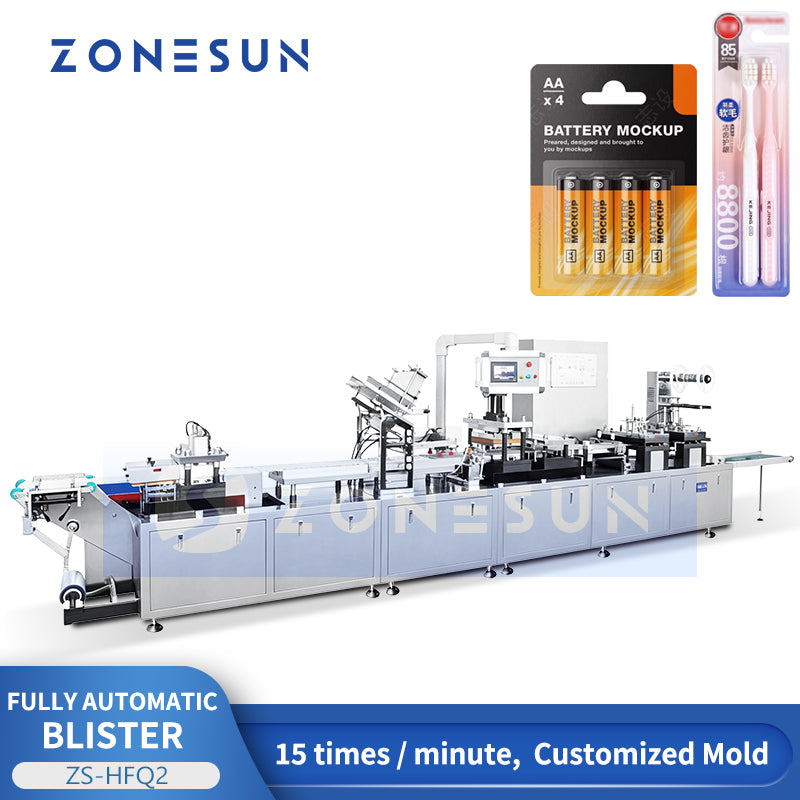

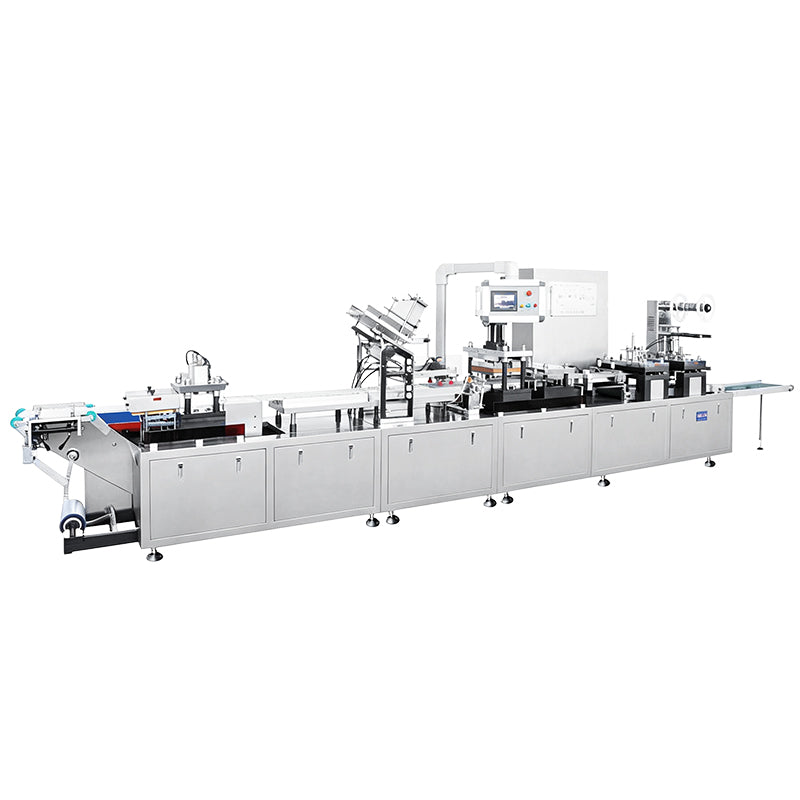

ZONESUN ZS-HFQ2 Automatic Thermoforming Blister Packaging Machine for PVC PET Blister, Paper Card Sealing and Custom Retail Package Production
The ZONESUN ZS-HFQ2 is a fully automatic linear blister packaging machine that integrates thermoforming, product loading (manual or automatic), heat sealing with paper cards, and punching output. It uses precision molds to form PVC/PET blisters and seals them with backing cards at up to 15 cycles per minute. Driven by servo motors and equipped with Siemens touchscreen control, it delivers high-efficiency, professional blister packaging with excellent transparency and strong sealing.
The ZS-HFQ2 supports Alu-PVC, Alu-Alu, Card-PVC, Liquid, Sauce, and Shaped Packaging formats, delivering excellent transparency and strong sealing performance. It is ideal for small to medium products requiring attractive, protective retail packaging.
Parameter
- Model: ZS-HFQ2
- Punching Speed: Paper / plastic 15 times / minute
- Feed Stroke Optional Range: 30-210 mm
- Formed Area: 330*210 mm
- Forming Depth: Plastic 40 mm (Special requirements 65 mm)
- Forming up/down Heating Power: 2 kW ( × 2 )
- Heat Sealing Heating Power: 3.5 kW
- Main Motor Power: 1.5 kW
- Total Power of the Power Supply: Three-phase four-wire 380V 50Hz (200V 60Hz) 11.8 kW
- Air Pump Volume Flow: ⩾ 1 m³/min
- Plastic Hard Sheet (special made of PET structure): ⩽ 0.2-0.5 × 350 mm
- Paper Card: ⩽ 350 × 220 × 0.5 mm
- Dimension: 3800 × 2000 × 1850 mm
- Weight: 1800 kg
Key Features
- 4-in-1 Integrated Process – Thermoforming, product loading, heat sealing, and punching output in one continuous automated line.
- 15 Cycles/Min High-Speed Output – Servo motor-driven precision indexing delivers consistent, high-throughput blister pack production.
- 6 Packaging Format Support – Alu-PVC, Alu-Alu, Card-PVC, Liquid, Sauce, and Shaped Packaging — one machine covers a wide range of blister pack styles.
- Siemens Touchscreen Control – Intuitive HMI for easy parameter setting, speed adjustment, and production monitoring with reliable industrial-grade control.
- Precision Thermoforming Molds – Forms PVC/PET blisters up to 40mm deep (65mm for special requirements) with excellent transparency and dimensional consistency.
- Strong Heat Sealing (3.5 kW) – Reliable card-to-blister sealing ensures tamper-evident, professional retail-ready packaging.
- Wide Material Compatibility – Accepts PVC/PET hard sheet (0.2–0.5mm thick, up to 350mm wide) and paper cards up to 350 × 220mm.
Applications
- Consumer Electronics & Hardware – Batteries, USB accessories, small tools, fasteners, and retail hardware blister card packaging.
- Toys & Stationery – Small toys, game accessories, stationery items, and promotional product blister packaging.
- Cosmetics & Personal Care – Lipstick, mascara, nail polish, razor blades, and cosmetic accessory blister card packaging.
- Food & Condiments – Sauce sachets, liquid condiment blisters, and specialty food product blister packaging.

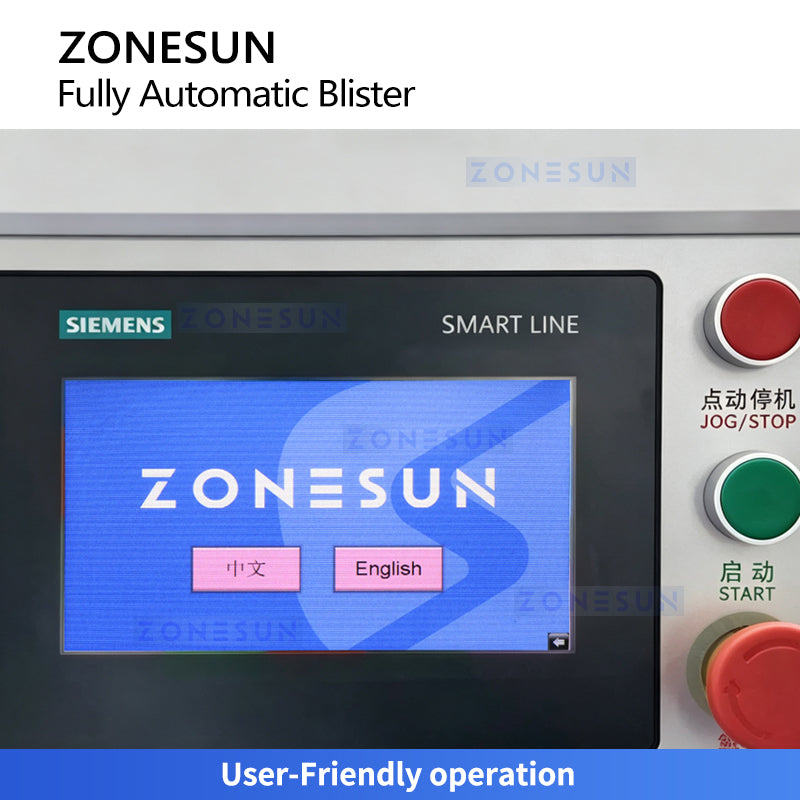

USER-FRIENDLY OPERATION
Enables operators to manage the machinery via an intuitive Siemens touch screen, enhancing production efficiency and reducing operational complexity.
Enables operators to manage the machinery via an intuitive Siemens touch screen, enhancing production efficiency and reducing operational complexity.

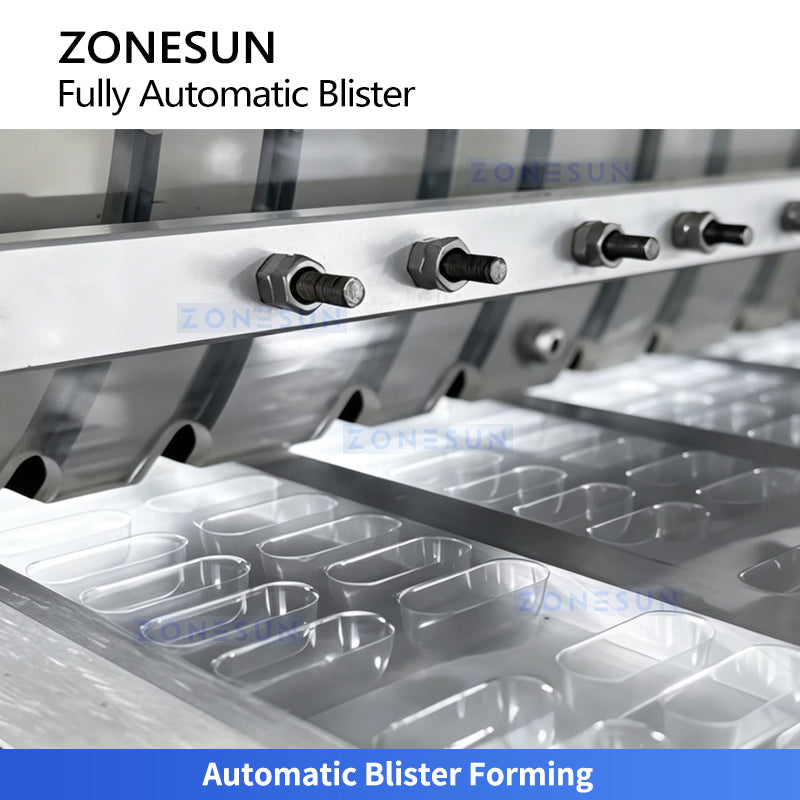

BLISTER FORMING
Utilizes heat-softening technology to form PVC/PET sheets into blister cavities via custom precision molds, ensuring smooth package edges and high transparency.
Utilizes heat-softening technology to form PVC/PET sheets into blister cavities via custom precision molds, ensuring smooth package edges and high transparency.

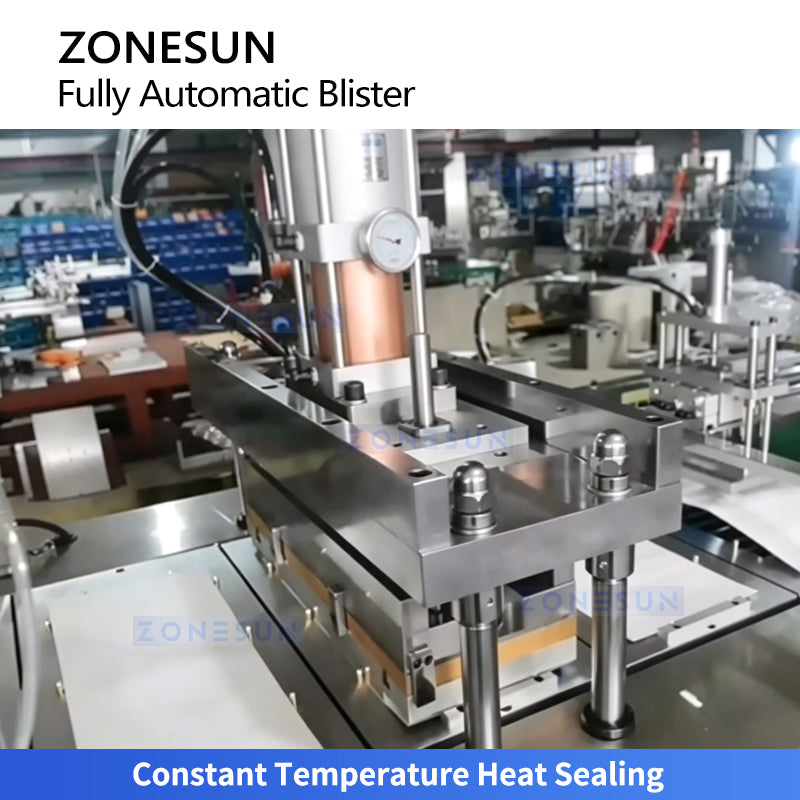

HEAT SEALING
Performs heat-press sealing via a PLC precision temperature control system to bond the blister and card instantly, ensuring a firm, aesthetic, and bubble-free seal.

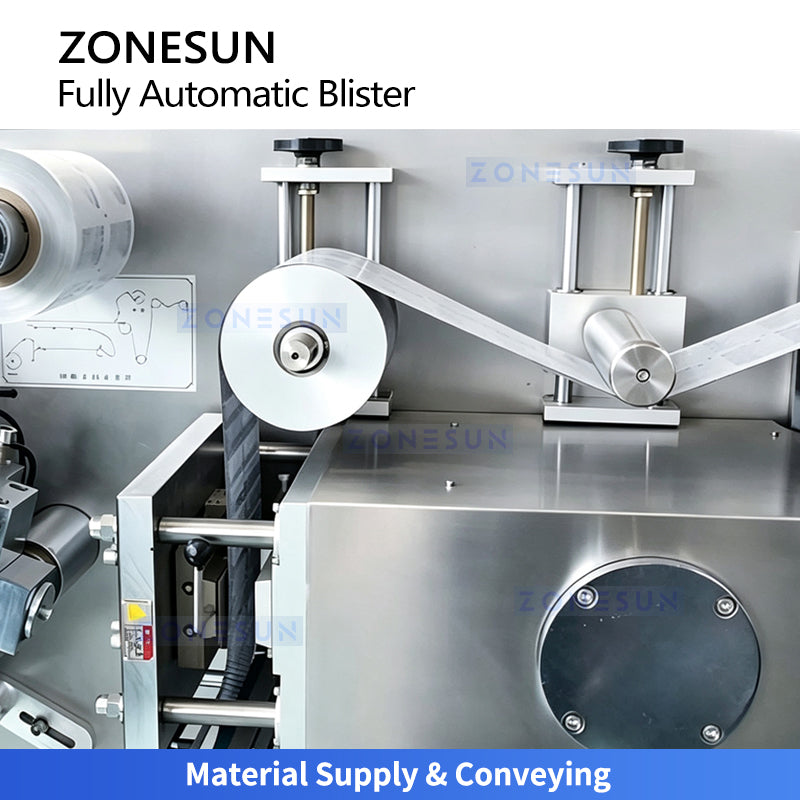

MATERIAL SUPPLY
Supports stable unwinding of aluminum foil or PVC rolls via precision encoders and guide rollers to ensure smooth substrate transport without deviation or wrinkling.
Supports stable unwinding of aluminum foil or PVC rolls via precision encoders and guide rollers to ensure smooth substrate transport without deviation or wrinkling.

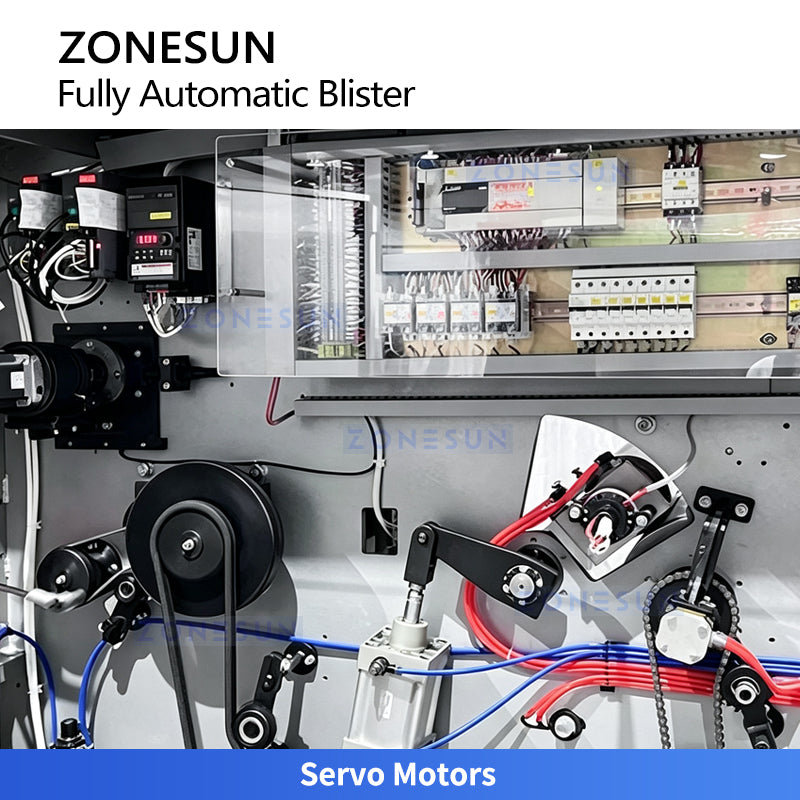

SERVO MOTORS
Utilizes flatbed forming and roller heat sealing driven by advanced servo motors to ensure high-efficiency production and adapt to varying capacity requirements.
Utilizes flatbed forming and roller heat sealing driven by advanced servo motors to ensure high-efficiency production and adapt to varying capacity requirements.
Why Choose the ZS-HFQ2?
- ✅ 4-in-1 Integrated Process: Thermoforming → product loading → heat sealing → punching output — complete blister pack production in one continuous automated line
- ✅ 15 Cycles/Min High-Speed Output: Servo motor-driven precision indexing delivers consistent, high-throughput blister pack production
- ✅ 6 Packaging Format Support: Alu-PVC, Alu-Alu, Card-PVC, Liquid, Sauce, and Shaped Packaging — one machine covers a wide range of blister pack styles
- ✅ Siemens Touchscreen Control: Intuitive HMI for easy parameter setting, speed adjustment, and production monitoring with reliable industrial-grade control
- ✅ Precision Thermoforming Molds: Forms PVC/PET blisters up to 40mm deep (65mm for special requirements) with excellent transparency and dimensional consistency
- ✅ Strong Heat Sealing (3.5 kW): Reliable card-to-blister sealing ensures tamper-evident, professional retail-ready packaging
- ✅ Wide Material Compatibility: Accepts PVC/PET hard sheet (0.2–0.5mm thick, up to 350mm wide) and paper cards up to 350 × 220mm
Ideal Applications
- Consumer Electronics & Hardware: Batteries, USB accessories, small tools, fasteners, and retail hardware blister card packaging
- Toys & Stationery: Small toys, game accessories, stationery items, and promotional product blister packaging
- Cosmetics & Personal Care: Lipstick, mascara, nail polish, razor blades, and cosmetic accessory blister card packaging
- Food & Condiments: Sauce sachets, liquid condiment blisters, and specialty food product blister packaging
