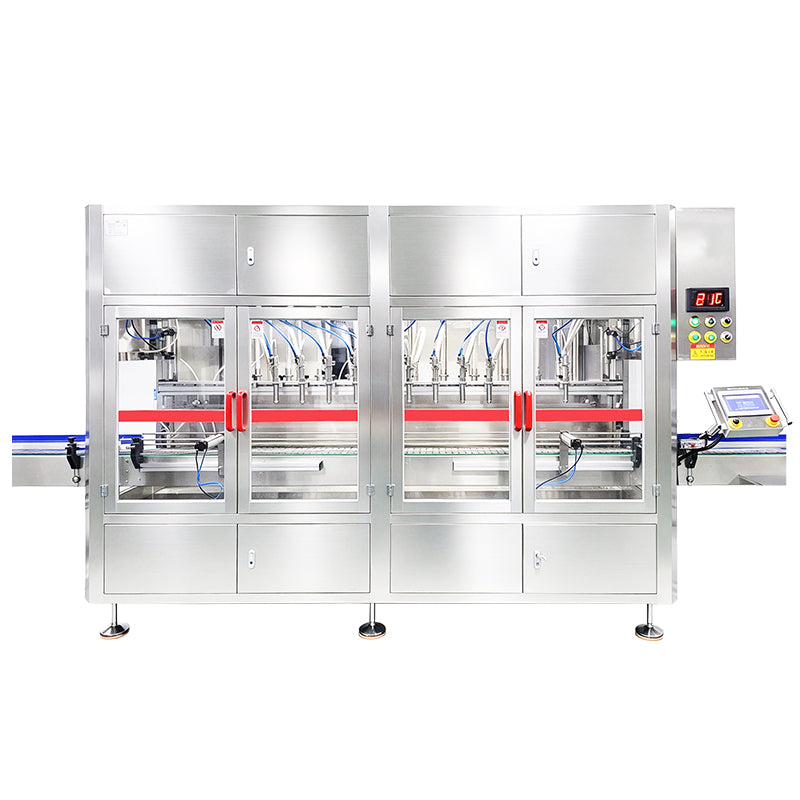

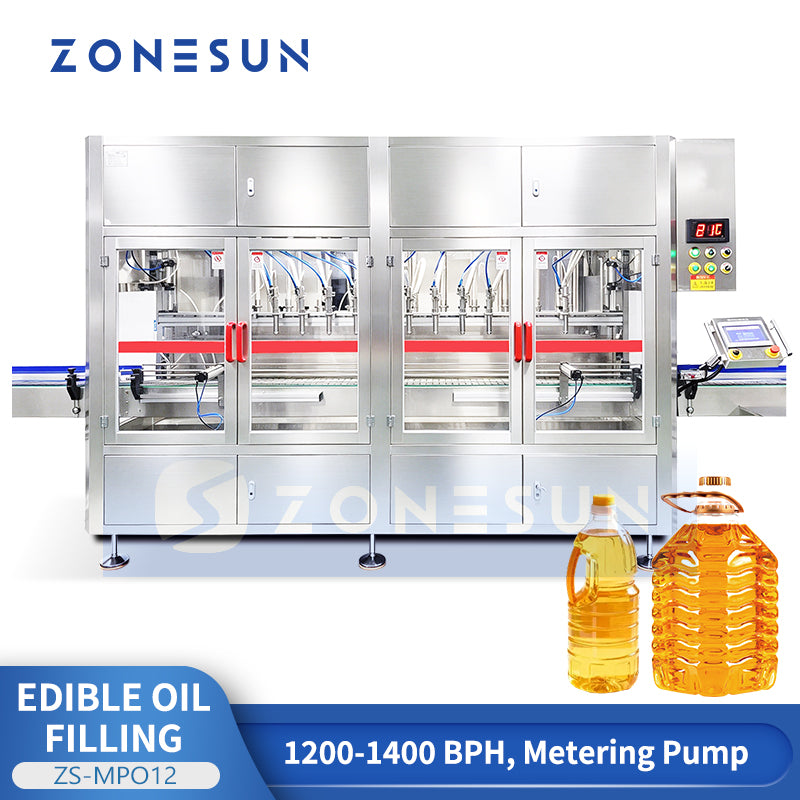

ZONESUN ZS-MPO12 Automatic Multi-Head Metering Pump Edible Oil Bottle Filling Machine

ZONESUN ZS-MPO12 Automatic Multi-Head Metering Pump Edible Oil Bottle Filling Machine

Description

The ZONESUN ZS-MPO12 Automatic Metering Pump Edible Oil Filling Machine is designed for accurate and efficient filling of cooking oil and other compatible edible oils into bottles. Featuring independently controlled metering pumps, vacuum suck-back filling nozzles, and Siemens PLC control with a 360-degree rotating touchscreen, it supports both volumetric and mass-converted filling modes. With a filling range of 100 mL–1.5 L, accuracy of ≤0.2%, and production capacity of 1,200–1,400 bottles/hour based on 1 L bottles, the machine provides reliable high-speed filling. Its three-speed filling control, stainless steel liquid-contact pipelines, and variable-frequency conveyor help reduce dripping and splashing while supporting continuous edible oil bottling operations.

Parameter

• Machine Model: ZS-MPO12
• Power Supply: 380 V ±10%
• Filling Range: 100 mL–1.5 L
• Filling Method: Volumetric or Mass-Converted Filling
• Production Capacity: 1,200–1,400 bottles/hour (based on 1 L bottles)
• Filling Accuracy: ≤0.2%
• Filling System: Independent Metering Pump System
• Filling Control: Three-Speed Variable-Frequency Control
• Control System: Siemens PLC
• Touchscreen: 360-Degree Rotating Touchscreen
• Air Pressure: 1.0–1.6 MPa
• Liquid-Contact Pipeline: SS304 Stainless Steel Flexible Hoses; Rubber-Free and Plastic-Free Liquid Contact Pipeline
• Conveyor: Variable-Frequency Conveyor with Smooth Start-Stop Operation
• Machine Dimensions (L × W × H): 2550 × 1350 × 2425 mm

Key Features

Independent Metering Pump Filling System

Uses a one-head-one-pump design, allowing each filling head to operate independently for controlled dosing and flexible operation. An individual faulty head can be switched off while the remaining heads continue production.

Volumetric & Mass-Converted Filling Modes

Supports volumetric filling based on preset liquid volume and mass-converted filling for applications requiring dosing settings based on converted product mass.

Vacuum Suck-Back Filling Nozzles

Draws back residual oil after filling to help prevent dripping onto bottles and the conveyor, supporting a cleaner filling process.

Detachable Filling Nozzles

The filling nozzles can be detached for convenient cleaning and routine maintenance.

Three-Speed Variable-Frequency Filling Control

Adjusts liquid flow during different stages of filling to help reduce splashing and maintain stable liquid dispensing.

Siemens PLC Control System

Provides automated operation and filling parameter management for convenient control of the production process.

360-Degree Rotating Touchscreen

Allows operators to adjust filling parameters, monitor machine operation, and manage settings from different working positions.

Filling Recipe Storage

Supports storage of filling recipes for convenient product changeover and repeatable parameter settings.

SS304 Stainless Steel Flexible Hoses

Uses SS304 stainless steel flexible hoses for liquid transfer in compatible edible oil filling applications.

Rubber-Free & Plastic-Free Liquid-Contact Pipeline

The documented liquid-contact pipeline does not contain rubber or plastic components, supporting the specified edible oil filling configuration.

Built-In Buffer Tank

Helps stabilize liquid supply pressure during continuous filling operation.

Bottle-Neck Alignment System

Aligns the filling nozzles with bottle openings to help improve dispensing stability and reduce splashing.

Variable-Frequency Conveyor

Allows conveyor speed adjustment according to filling requirements, with smooth start-stop operation for stable bottle transfer.

Protective Machine Enclosure

Features protective access panels around the filling area to enclose the operating section.

Benefits

1,200–1,400 Bottles/Hour Production Capacity

Provides a documented production capacity of 1,200–1,400 bottles/hour based on 1 L bottles, supporting efficient automatic edible oil bottling.

≤0.2% Filling Accuracy

The metering pump filling system provides documented filling accuracy of ≤0.2% for quantitative filling applications.

100 mL–1.5 L Filling Range

Accommodates different compatible edible oil bottle capacities within the documented filling range.

Independent Pump Operation

Each filling head operates independently, allowing an individual faulty head to be disabled without stopping the remaining heads.

Reduced Oil Dripping & Splashing

Vacuum suck-back nozzles, bottle-neck alignment, and three-speed filling control help reduce residual dripping and splashing during filling.

Flexible Filling Modes

Supports volumetric and mass-converted filling modes, providing flexibility for different dosing requirements.

Convenient Product Changeover

The PLC control system and recipe storage function help operators manage filling parameters for repeat production runs.

Simplified Cleaning & Maintenance

Detachable filling nozzles facilitate cleaning and routine maintenance.

Stable Liquid Supply

The built-in buffer tank helps stabilize liquid supply pressure during continuous filling.

Smooth Bottle Conveying

Variable-frequency conveyor control and smooth start-stop operation help reduce sudden bottle movement and tipping.

Stainless Steel Liquid Transfer

SS304 stainless steel flexible hoses provide the specified liquid-transfer configuration for compatible edible oil applications.

Continuous Bottling Line Integration

Can be connected with compatible capping, labeling, and downstream packaging equipment to create a coordinated production workflow.

Application

Ideal for automatic quantitative filling of cooking oil and other compatible edible oils into bottles, particularly 1 L edible oil containers. The ZS-MPO12 combines independent metering pumps, volumetric or mass-converted filling modes, vacuum suck-back nozzles, three-speed filling control, and bottle-neck alignment to support accurate dosing while helping reduce dripping and splashing. Its Siemens PLC control system, recipe storage, SS304 stainless steel liquid-contact components, and variable-frequency conveyor make it suitable for continuous edible oil bottling operations requiring stable filling performance. The machine can also be integrated with compatible automatic capping, labeling, and downstream packaging equipment to form a complete edible oil production line.

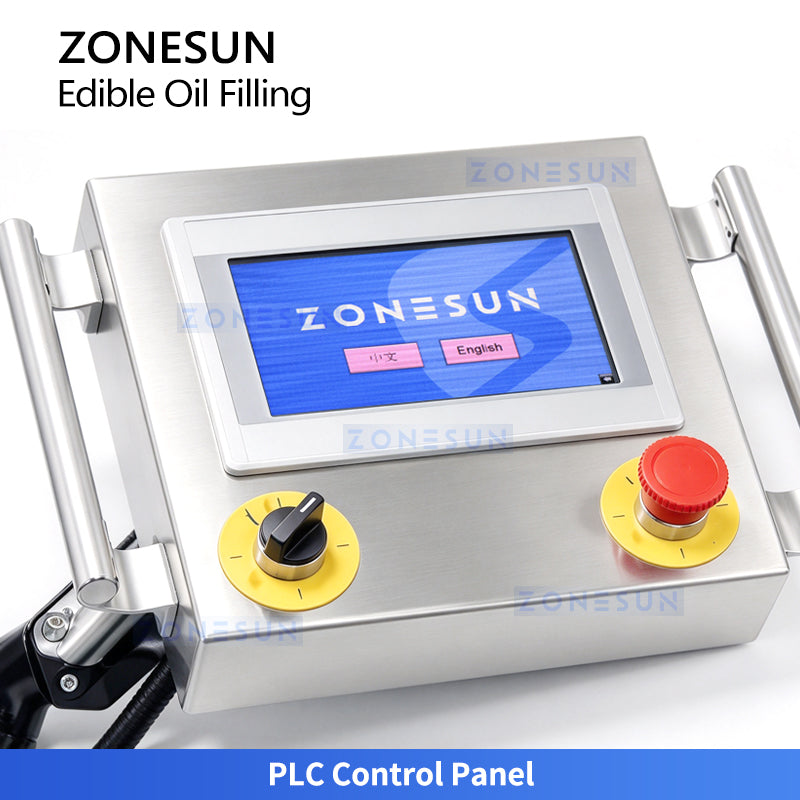

PLC Control Panel

Features a 360-degree rotating touchscreen for convenient parameter setting, recipe storage, and real-time monitoring of machine operation.

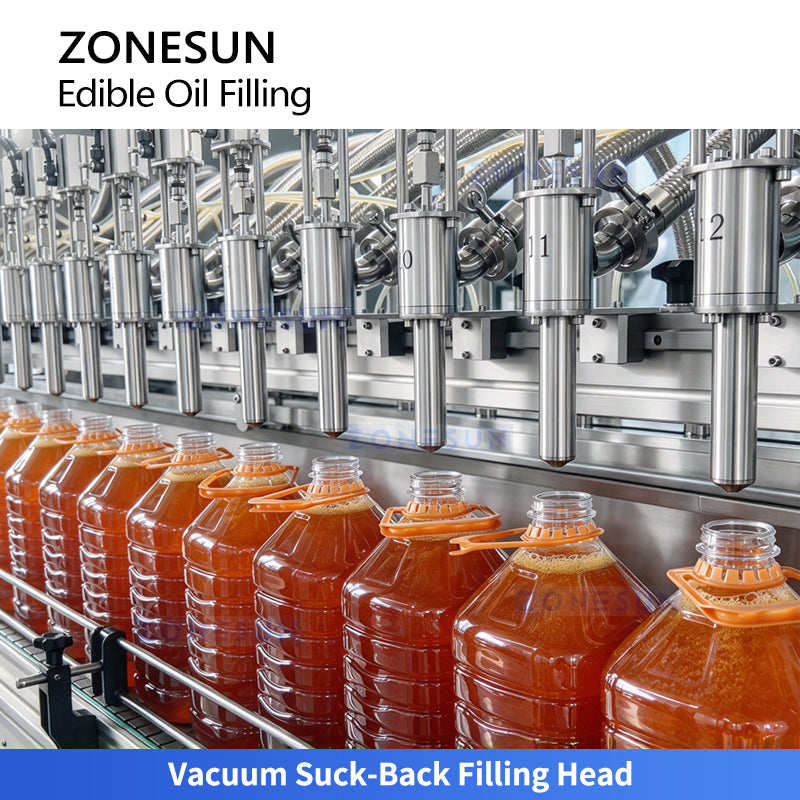

Vacuum Suck-Back Filling Head

The suck-back function helps prevent oil dripping after filling, while the detachable nozzle design allows convenient cleaning and maintenance.

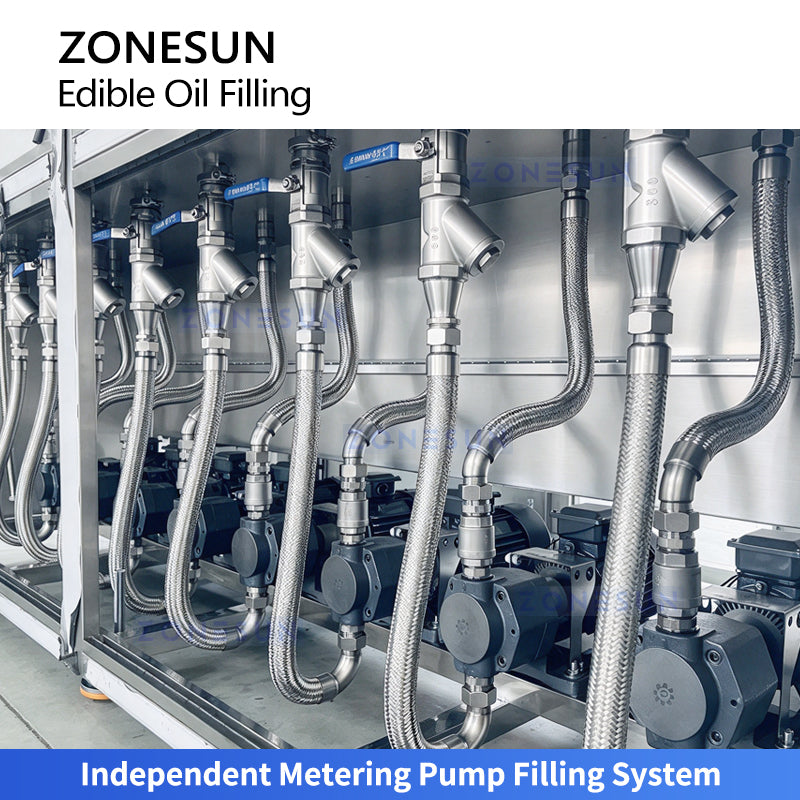

Independent Metering Pump Filling System

Each filling head is independently controlled for precise filling. A faulty head can be switched off without stopping the remaining heads, ensuring continuous production.

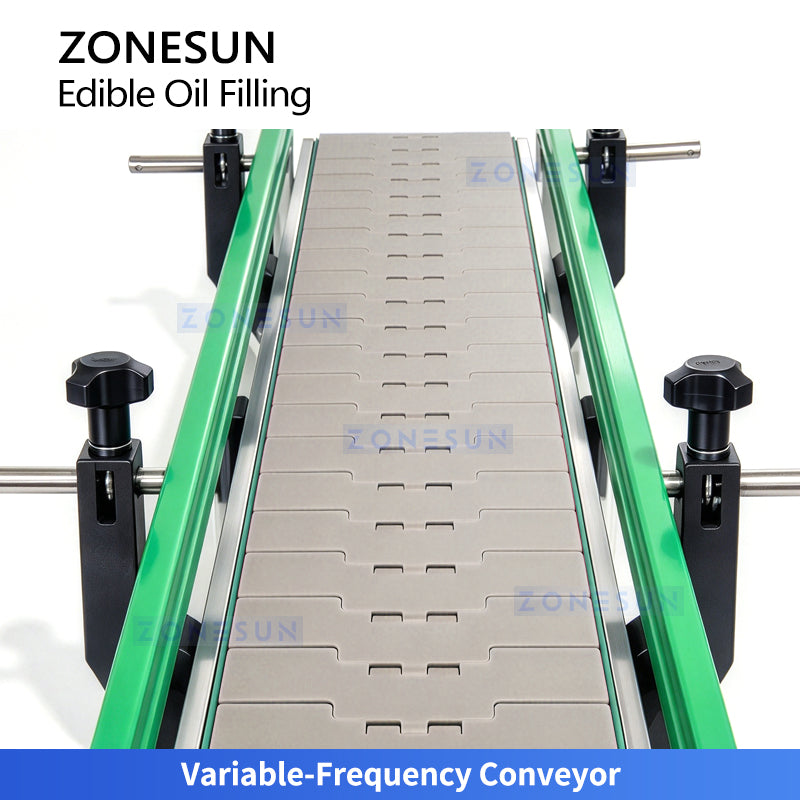

Variable-Frequency Conveyor

Features adjustable conveyor speed and smooth start-stop operation for stable bottle transfer and seamless integration with the filling process.



Why Choose the ZONESUN ZS-MPO12?

High-Speed Edible Oil Filling

Provides a documented production capacity of 1,200–1,400 bottles/hour based on 1 L bottles, supporting continuous edible oil packaging.

Accurate Metering Pump Dosing

The independent metering pump system provides documented filling accuracy of ≤0.2% for quantitative filling applications.

Flexible 100 mL–1.5 L Filling Range

Supports different compatible bottle capacities within the specified filling range.

Independent Filling Head Control

Allows each filling head to operate independently, with the ability to disable an individual faulty head while the remaining heads continue production.

Vacuum Suck-Back Technology

Draws back residual oil after filling to help prevent nozzle dripping and maintain a cleaner conveyor area.

Three-Speed Filling Control

Adjusts liquid flow during different filling stages to help reduce splashing and improve filling stability.

Siemens PLC & Rotating Touchscreen

Provides automated control, recipe storage, and convenient parameter adjustment through a 360-degree rotating touchscreen.

SS304 Liquid-Contact Components

Uses SS304 stainless steel flexible hoses and the specified rubber-free and plastic-free liquid-contact pipeline for compatible edible oil filling.

Stable Conveyor Operation

Variable-frequency speed adjustment and smooth start-stop operation support stable bottle movement during production.

Convenient Nozzle Maintenance

Detachable filling nozzles simplify cleaning and routine maintenance.

Flexible Bottling Line Integration

Can connect with compatible capping, labeling, and downstream packaging equipment to create a coordinated edible oil bottling workflow.

Ideal Applications

Cooking Oil Bottling

Designed for automatic quantitative filling of compatible cooking oil products into bottles.

Vegetable Oil Packaging

Suitable for compatible vegetable oil bottling applications requiring controlled filling volumes.

Edible Oil Production Lines

Provides automatic filling for edible oil packaging operations requiring stable throughput and quantitative dosing.

1 L Oil Bottle Filling

The documented production capacity of 1,200–1,400 bottles/hour is based on 1 L bottles.

Small & Medium-Capacity Oil Bottles

Supports compatible bottle filling volumes from 100 mL to 1.5 L.

Volumetric Oil Filling

Suitable for edible oil applications requiring filling according to preset liquid volume.

Mass-Converted Oil Filling

Supports dosing configurations based on converted product mass where required by the production process.

Continuous Oil Bottling

Suitable for continuous production workflows requiring automatic bottle conveying and metering pump filling.

Oil Packaging with Reduced Dripping

Vacuum suck-back nozzles help reduce residual oil dripping after filling.

Integrated Edible Oil Packaging Lines

Suitable for integration with compatible automatic capping, labeling, and downstream packaging equipment.
