ZONESUN ZS-PGF5 Automatic Dual Head Piston Capsule Cream Filling Machine for Cosmetic Cream Products

ZONESUN ZS-PGF5 Automatic Dual Head Piston Capsule Cream Filling Machine for Cosmetic Cream Products

Description

The ZONESUN ZS-PGF5 Automatic Dual-Head Piston Pattern Filling Machine is designed for precise pattern filling of cosmetic creams, lotions, toners, and other high-viscosity products. Equipped with a dual-head piston pump filling system, it provides accurate dosing from 5-80 ml and creates unique layered or particle-filled effects. The vertical pneumatic lifting slide ensures smooth bottom-up filling with reduced splashing and air bubbles, while the touchscreen control panel enables easy parameter adjustment and quick recipe changeovers. With a food-grade stainless steel hopper and dual-station holders, it delivers stable feeding and reliable filling performance.

Parameter

• Machine Model: ZS-PGF5
• Power Supply: 220V / 50Hz
• Power: 2.3 kW
• Filling Pump: Piston dosing valve filling system
• Air Supply: 0.3–0.6 MPa
• Dimension (LxWxH): 700 * 550 * 800 mm
• Barrel Volume: 20 L
• Filling Range: 5–80 ml
• Net Weight: 50 kg
• Body Material: Stainless steel
• Applications: Cosmetic toners, lotions, facial cleansers, gold particle eye creams, etc.

Key Features

• Dual-Head Piston Pattern Dosing: Advanced dual-channel piston system accurately dispenses high-viscosity formulations from 5 to 80 ml, enabling unique multi-color patterns, layers, or embedded particle effects.
• Vertical Pneumatic Lifting Slide: Smooth bottom-up filling mechanism raises and lowers containers during dispensing to eliminate splashing, reduce air bubbles, and ensure clean product boundaries.
• Intelligent Touchscreen Control: User-friendly digital interface allows precise parameter tuning, volume adjustments, and rapid multi-recipe storage for fast production changeovers.
• Food-Grade Stainless Steel Hopper: Hygienic, corrosion-resistant hopper maintains material purity and supports smooth, uninterrupted gravity feeding.
• Dual-Station Container Holders: Dual-station design secures bottles or jars firmly in place, optimizing cycle times and operator workflow.
• Precision Volume Calibration: High-tolerance piston engineering delivers consistent shot-to-shot dosing accuracy across complex cosmetic formulations.

Benefits

• Creates Standout Visual Packaging — Specialized pattern filling lets brands create unique layered, striped, or particle-suspended designs that elevate product appeal on shelves.
• Eliminates Splashing & Air Pockets — Pneumatic bottom-up lifting ensures clean, void-free filling even with thick creams, gels, and lotions.
• Boosts Operational Efficiency — Dual-head simultaneous dispensing combined with quick touchscreen recipe changes maximizes daily throughput.
• Minimizes Product Waste — High-precision piston dosing prevents overfilling and ensures strict portion control per container.
• Hygienic & Easy to Clean — Food-grade stainless steel contact parts meet strict sanitary standards for cosmetic and personal care manufacturing.

Applications

Perfect for cosmetic manufacturing plants, private-label skincare brands, and personal care packaging facilities producing specialty formulated creams and gels. Ideal for filling patterned face creams, multi-layer lotions, exfoliating gels with microbeads, toners, and luxury skincare containers. Suitable for rigid glass, acrylic, and plastic cosmetic jars and bottles requiring precision decorative filling.

Touchscreen Control Panel
Providing intuitive touchscreen control for precise adjustment of filling speed, piston stroke, and delay settings, with recipe storage for quick product changeovers.

Vertical Pneumatic Lifting Slide

Controlling the vertical movement of filling nozzles to achieve bottom-up filling, preventing splashing and air bubbles while ensuring smooth and precise filling.

Dual-Head Piston Pump Filling System

Providing high-precision dual-head filling with piston pump control to achieve accurate dosing and attractive layered or particle-filled product effects.

Stainless Steel Hopper

Featuring a food-grade stainless steel hopper for smooth material storage and flow, ensuring efficient feeding of high-viscosity products.

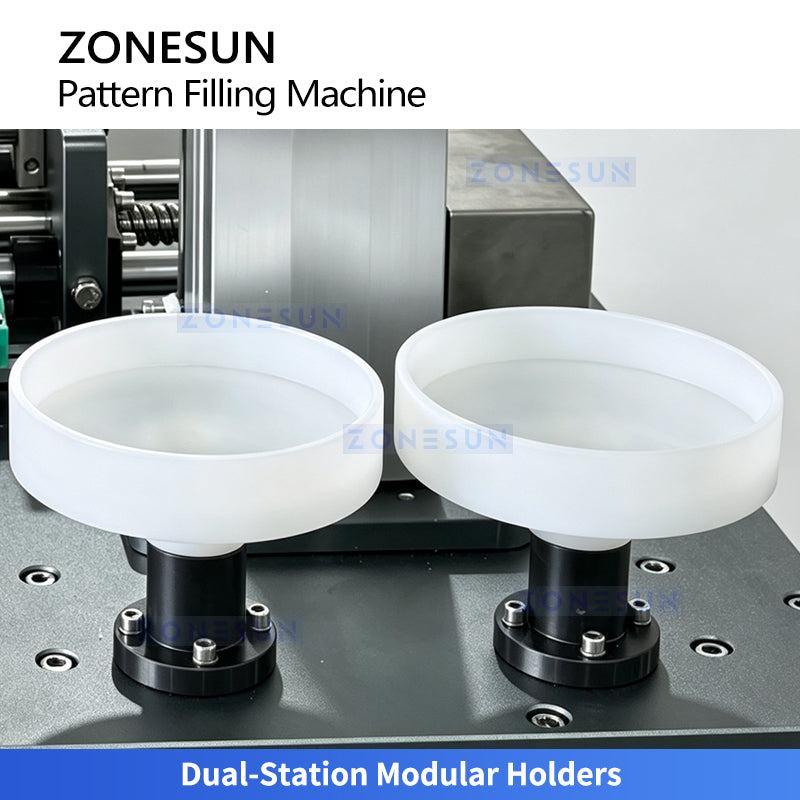

Dual-Station Modular Holders

Featuring dual-station modular holders to securely position two containers during filling, preventing movement and spills for accurate and stable operation.

Why Choose the ZONESUN ZS-PGF5?

✅ Dual-Head Piston Filling System — High-Precision Pattern Filling: Equipped with two piston pump filling heads, the machine delivers accurate dosing for cosmetic creams, lotions, toners, and other high-viscosity products while supporting efficient dual-station filling operations

✅ 5–80ml Adjustable Filling Range — Flexible Product Adaptation: Supports precise filling volumes from 5–80ml, allowing manufacturers to handle different container sizes and product requirements with improved production flexibility

✅ Pattern Filling Technology — Unique Product Appearance: Designed to create layered, particle-filled, and decorative filling effects, helping brands achieve visually attractive cosmetic products with enhanced market appeal

✅ Vertical Pneumatic Lifting Slide — Smooth Bottom-Up Filling: The lifting filling system moves nozzles vertically during filling, reducing splashing, air bubbles, and uneven filling while improving product appearance and filling consistency

✅ High-Viscosity Material Compatibility — Reliable Cream & Lotion Processing: Specially designed for thick and viscous products such as creams, lotions, gels, and cosmetic formulations, ensuring stable feeding and accurate filling performance

✅ Touchscreen Control Panel — Easy Operation & Quick Changeover: Intelligent touchscreen interface allows operators to adjust filling parameters, save recipes, and quickly switch between different product specifications, improving production efficiency

✅ Food-Grade Stainless Steel Hopper — Hygienic Material Handling: Equipped with a stainless steel hopper that provides corrosion resistance, easy cleaning, and reliable hygiene performance for cosmetic and personal care production

✅ Dual-Station Holder Design — Stable Filling Operation: Features dual-position holders to securely fix containers during filling, improving accuracy and supporting smooth continuous production

Ideal Applications

Cosmetics & Personal Care: Ideal for filling creams, lotions, toners, serums, gels, and other skincare products requiring precise dosing and attractive layered filling effects

Beauty & Skincare Manufacturing: Suitable for premium cosmetic products that require decorative patterns, particle effects, and consistent filling quality to improve product presentation

Daily Chemical Products: Applicable for filling high-viscosity products such as gels, creams, and specialty formulations requiring accurate volume control and stable operation

Pharmaceutical & Healthcare: Suitable for filling ointments, gels, and other viscous formulations requiring hygienic processing and reliable dosing accuracy

Specialty Liquid & Paste Production: Provides a flexible filling solution for manufacturers producing customized high-viscosity products with unique visual effects and precise packaging requirements
