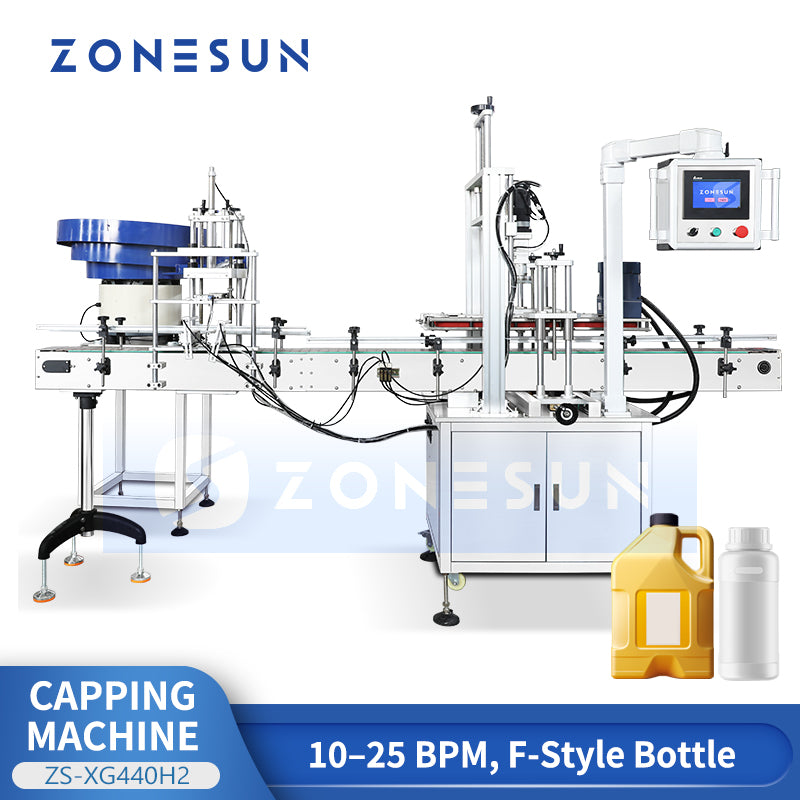

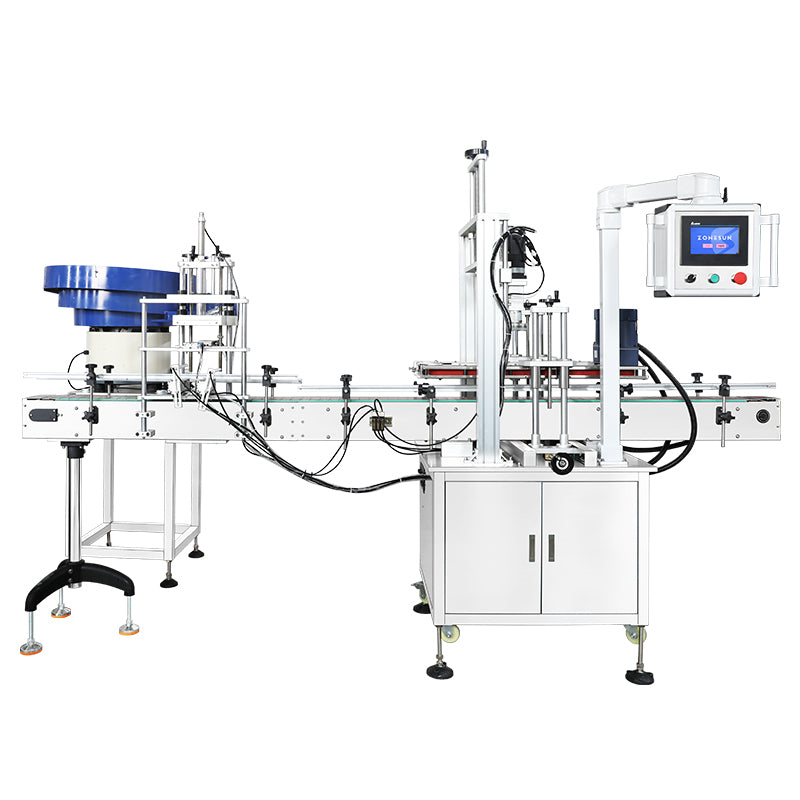

ZONESUN ZS-XG440H2 Automatic Capping Machine for F-Style Bottles
ZONESUN ZS-XG440H2 Automatic Capping Machine for F-Style Bottles
Regular price
$7,200.00 USD
Regular price
Sale price
$7,200.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

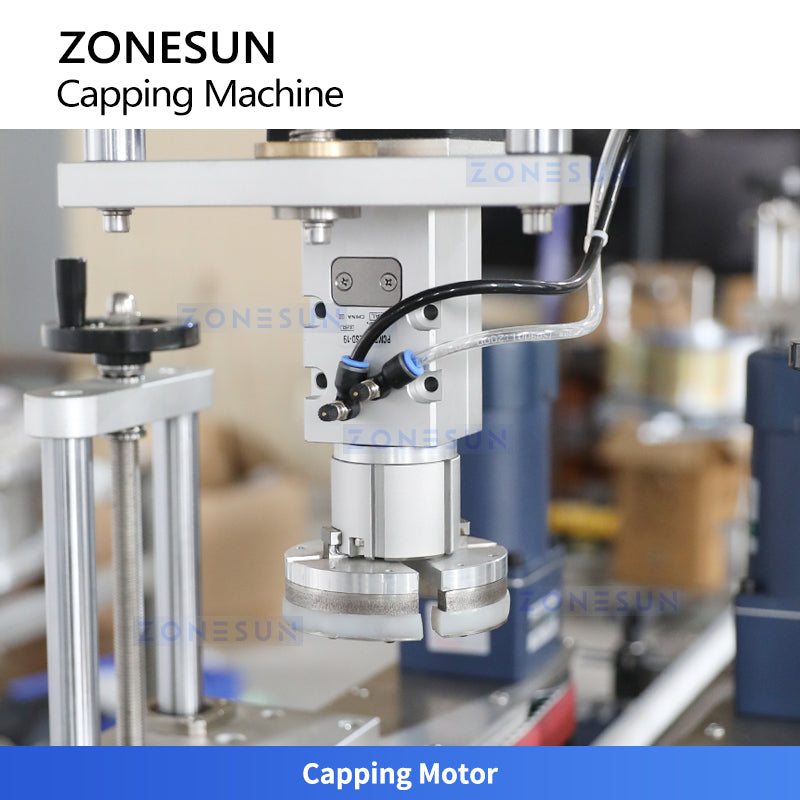

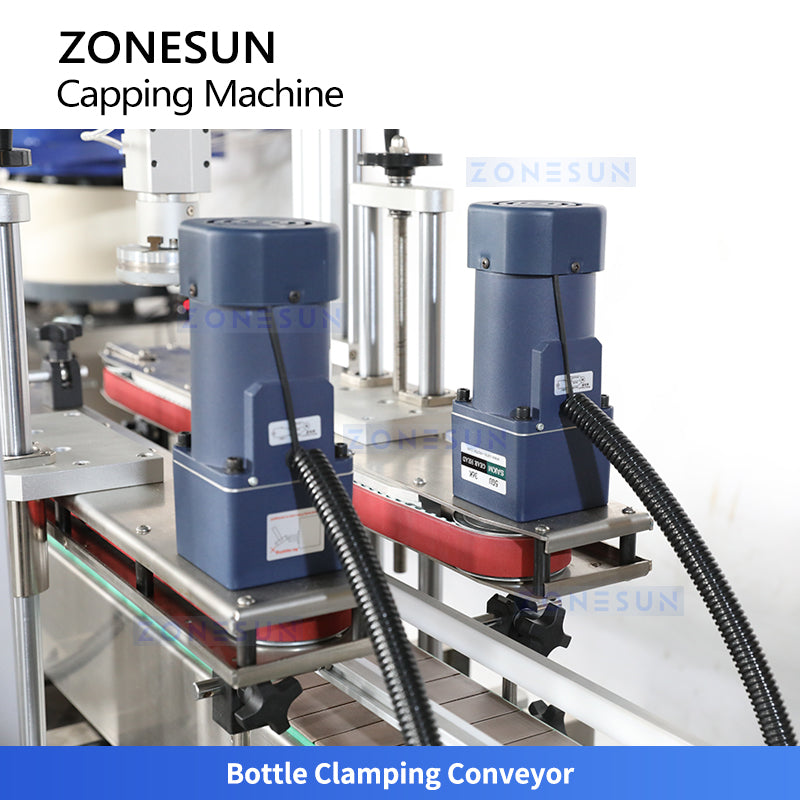

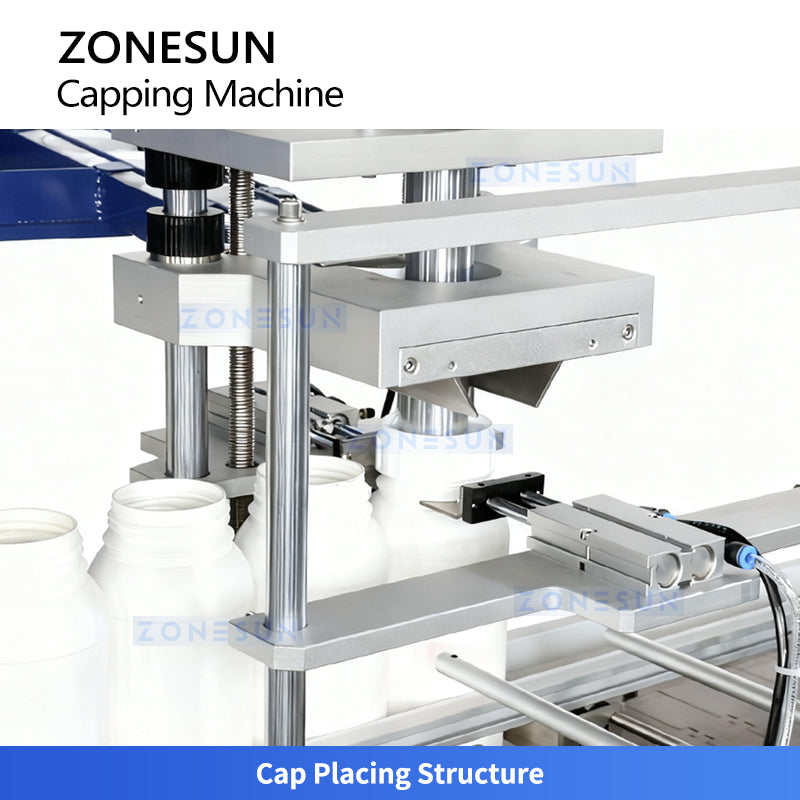

The ZONESUN ZS-XG440H2 Automatic Capping Machine is specifically designed for high-speed and efficient sealing of F-style bottles. Featuring a servo-driven capping motor and precision cap placing structure, it ensures stable screwing even for bottles with raised handles and limited clearance. The integrated electric eye system detects bottle position to coordinate cap drop and screwing, while the bottle clamping conveyor prevents tipping and misalignment during transport. With a production capacity of 10–25 bottles per minute, this machine is ideal for oil drums and similar large-format containers.
Parameter
- Model: ZS-XG440H2
- Working Voltage: AC 220V / 110V, 50–60 Hz
- Power Consumption: 300 W
- Applicable Bottle Height: 50–350 mm
- Applicable Cap Diameter: 20–50 mm
- Working Speed: 10–25 bottles/min (depends on bottle and cap size)
- Working Pressure: 0.4–0.6 MPa
- Capping Torque: 4–9 kgf/cm
- Machine Dimensions: Approx. 2500 × 1250 × 1660 mm
- Packing Dimensions: Approx. 2600 × 840 × 1680 mm
- Gross Weight: Approx. 320 kg
