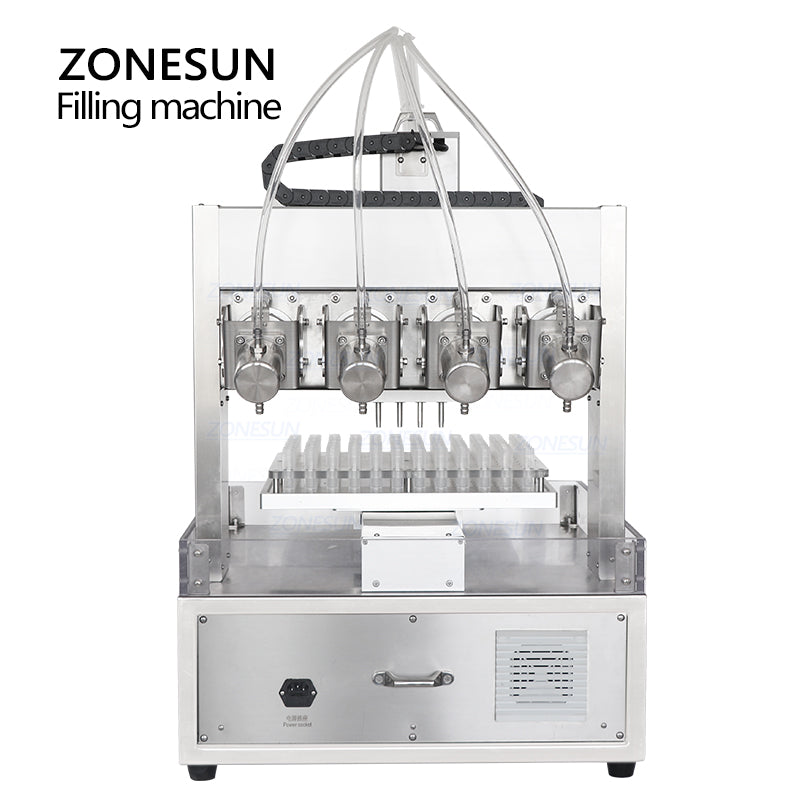

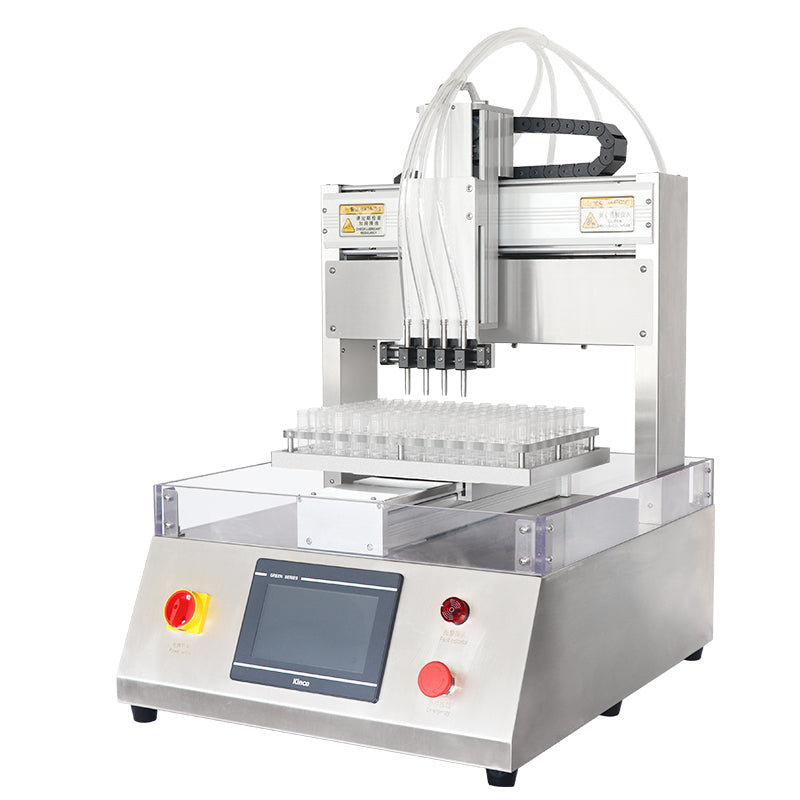

ZONESUN ZS-XYZ4 Ceramic Plunger Pump Reagent Tube Small Volume Precision Filling Machine

DESCRIPTION

The ZONESUN ZS-XYZ4 is a precision liquid filling machine equipped with a high-quality ceramic plunger pump, ensuring exceptional accuracy for small-volume dosing. Designed with a robotic arm for small-volume dosing, it offers flexible and movable filling head holder for positioning for various container types. Capable of operating with operating with 1 to 5 nozzles, it delivers high-speed1 to 5 nozzles, it delivers high-speed performance of up to 200 bottles per minute while maintaining ±0.25% accuracy. This machine is widely used in pharmaceutical, chemical, and cosmetics industries for products industries for products such as reagents such as reagents, e-liquids, e-juice, and biological agents.

Parameter Details
Model ZS-XYZ4
Voltage 220V / 110V, 50–60Hz
Pump Type Ceramic Plunger Pump
Number of Filling Nozzles 1 / 2 / 3 / 4 / 5
Filling Range 0.2–1.5 ml / 0.3–2.8 ml / 0.6–6 ml / 1–12 ml / 2–25 ml
Filling Accuracy ≤ ±0.25%
Filling Speed 0–200 bottles/min
Moving Distance (X×Y×Z) 400 × 300 × 100 mm
Machine Size 720 × 550 × 780 mm
Machine Weight 69 kg
