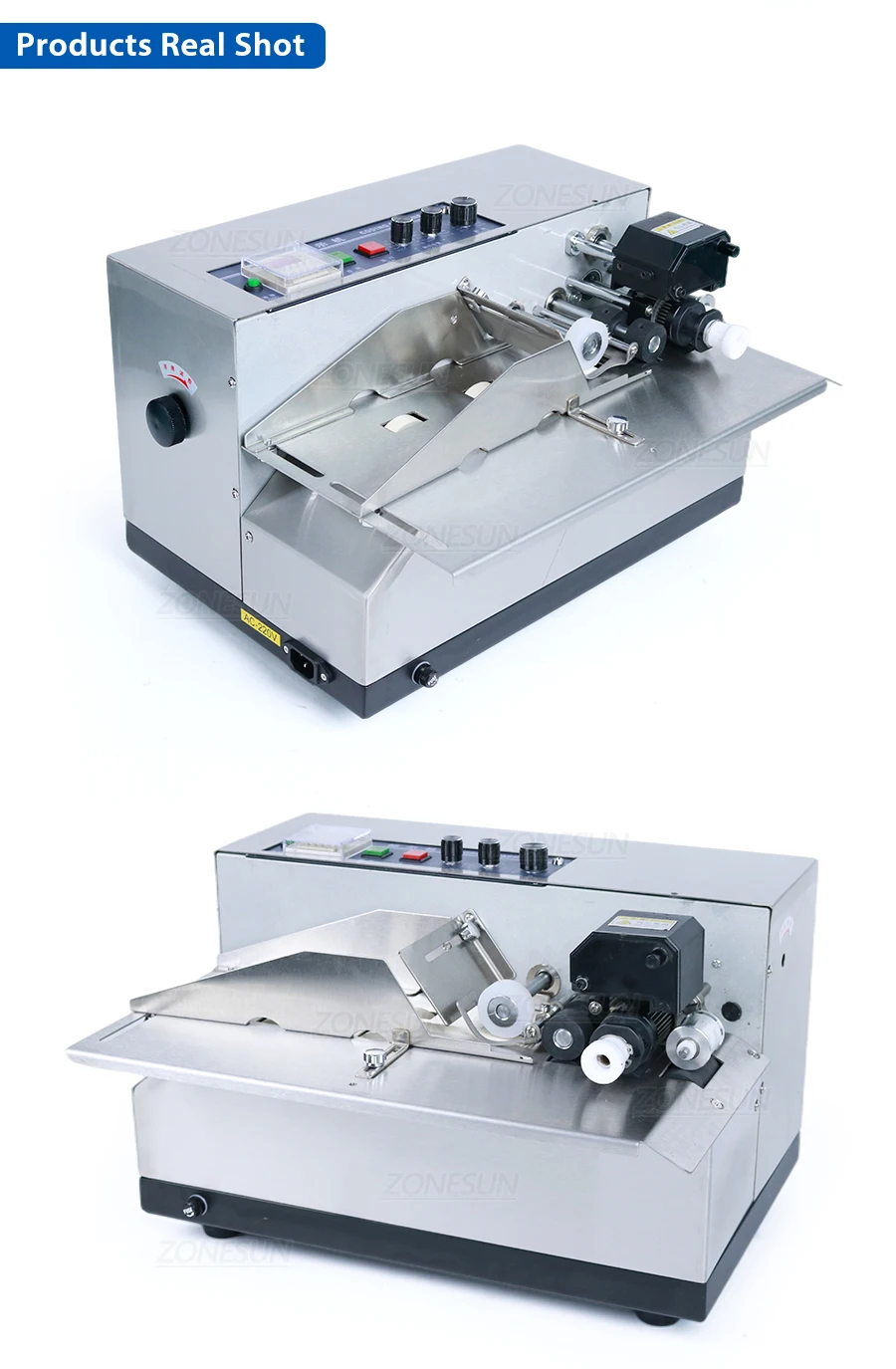

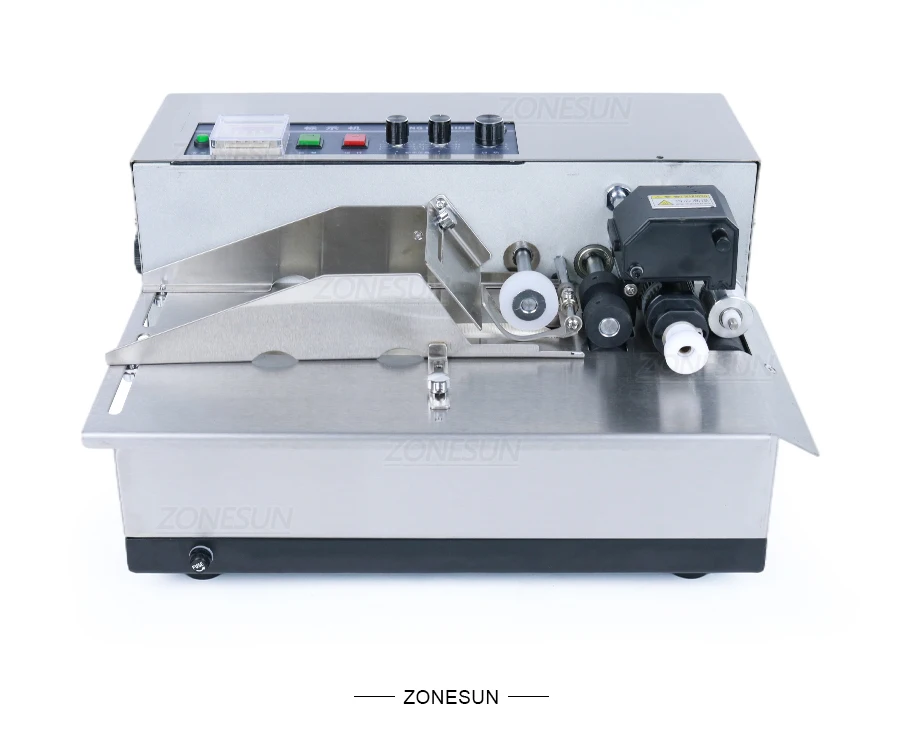

ZONESUN MY-380F / MY-380FW Automatic Solid Ink Roll Date Coding Machine
Description
The ZONESUN MY-380F series combines automatic paging and solid-ink roll coding for compatible flat packaging materials. It prints dates, batch numbers, lot codes and short alphanumeric information on paper, labels, cards, thin cardboard, plastic film and aluminum foil, using interchangeable characters and a solid ink roll.
Photoelectric control, automatic temperature regulation, counting and adjustable print positioning support routine coding. Choose the MY-380F standard version for products up to the listed 190 mm width or the MY-380FW wider version for products up to 300 mm width. Print clarity, drying and adhesion depend on the material, ink roll and operating settings.
Characteristic

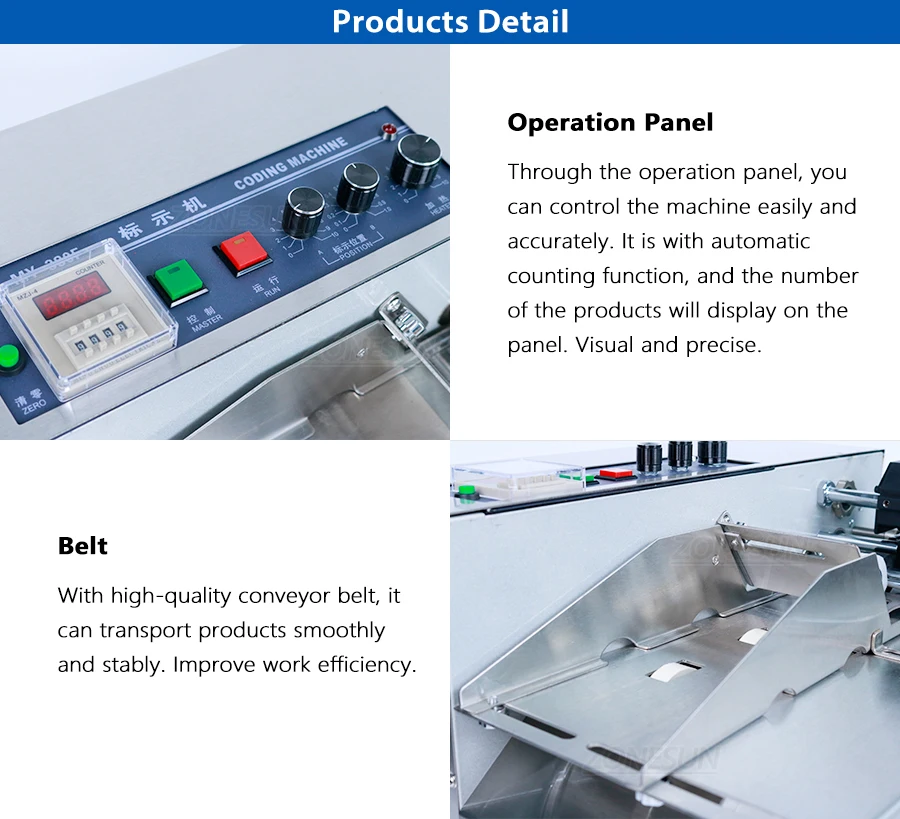

- Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.
- The printing position can be adjusted by rotating the knob, easy to operate.
- Work efficiently and automatically at high speed, up to 30pcs per minute.

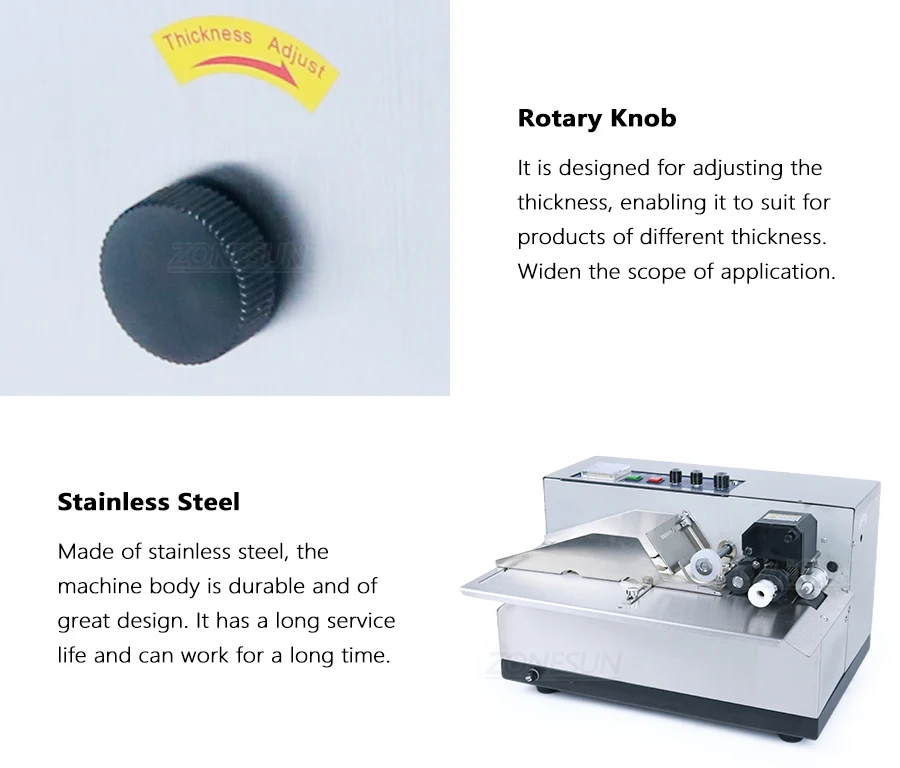

- The thickness can be adjusted as needed, making it suitable for products of different thickness.
- With the function of paging and printing date at one machine, saving labor cost and improving efficiency.

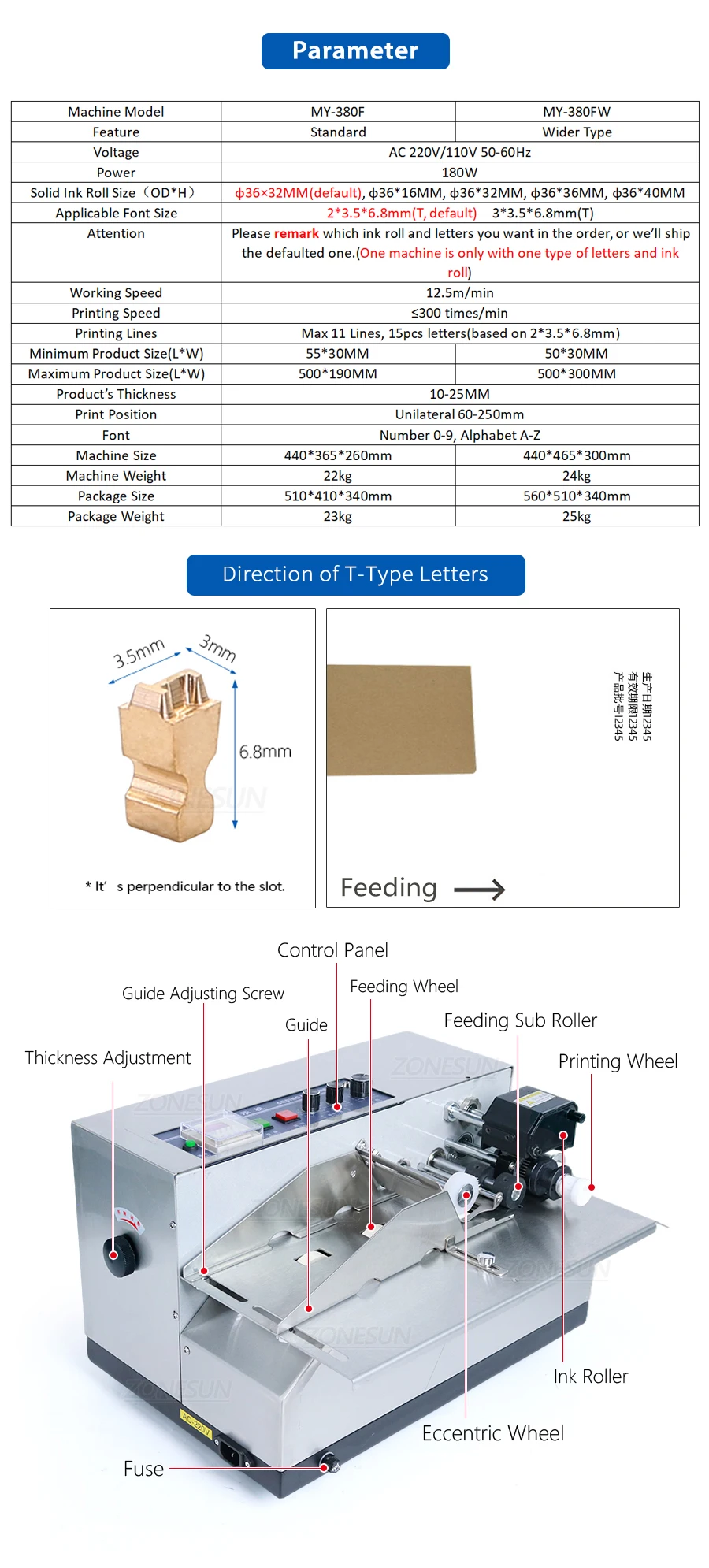

Parameter
|
Machine Model |
MY-380F |
MY-380FW |
|
Feature |
Standard |
Wider Type |
|
Voltage |
AC 220V/110V 50-60Hz |
|
|
Power |
180W |
|
|
Solid InkRollSize（OD*H） |
φ36×32MM(default),φ36*16MM,φ36*32MM,φ36*36MM,φ36*40MM |
|
|
ApplicableFont Size |
2*3.5*6.8mm(T, default)3*3.5*6.8mm(T) |
|
|
Attention |
Please remark which ink roll and letters you want in the order, or we’ll ship the defaulted one.(One machine is only with one type of letters and ink roll) |
|
|
Working Speed |
12.5m/min |
|
|
Printing Speed |
≤300 times/min |
|
|
Printing Lines |
Max 11 Lines, 15pcs letters(based on2*3.5*6.8mm) |
|
|
Minimum Product Size(L*W) |
55*30MM |
50*30MM |
|
Maximum Product Size(L*W) |
500*190MM |
500*300MM |
|
Product’s Thickness |
10-25MM |
|
|
Print Position |
Unilateral 60-250mm |
|
|
Font |
Number 0-9, Alphabet A-Z |
|
|
Machine Size |
440*365*260mm |
440*465*300mm |
|
Machine Weight |
22kg |
24kg |
|
Package Size |
510*410*340mm |
560*510*340mm |
|
Package Weight |
23kg |
25kg |
Notice
STANDARD MACHINE is 220V, if you need 110V. PLS contact to us or leave message, or we will ship 220V in Euro Plug Directly. Thank you!
Applications
For coding on compatible flat bags, labels, cards, paper, thin cardboard, plastic film and aluminum-foil packaging. Send the material, dimensions, required text and print-position details for compatibility checks. Curved bottles and containers require a separate coding-equipment assessment.
Machine Details
Paging and Coding
The paging mechanism separates compatible flat products and presents them for coding in one process.
Solid Ink Roll and Characters
The solid ink roll supplies ink to the character arrangement for printing short text and codes. Ink-roll and character selection determine the applicable setup.
Print Position and Thickness Adjustment
Mechanical adjustments support alignment and handling of the selected material. Confirm the adjustment range with actual samples.
Key Features
- Solid-ink roll printing for compatible flat packaging
- Automatic paging, temperature control and counting
- Photoelectric control and adjustable print position
- Standard and wider machine versions
- Listed working speed of 12.5 m/min and printing rate of ≤300 impressions/min, subject to application confirmation
How the Coding Process Works
- Confirm the model, product material, dimensions and desired code.
- Install the selected characters and compatible ink roll according to the operating manual.
- Adjust the feeding arrangement, print position and temperature for the material.
- Run test pieces and inspect code clarity, position and adhesion.
- Begin paging and coding after confirming results, and monitor the print and feeding quality during production.
How to Choose the Right Configuration
Provide the product length, width and thickness, material sample, printed text, line count and desired position. Confirm model width, character dimensions, ink-roll size and color, voltage and plug. Validate paging and finished-piece output using actual materials rather than choosing only from the stated impression rate.
Frequently Asked Questions
What is the difference between MY-380F and MY-380FW?
The standard MY-380F lists a minimum product size of 55 × 30 mm and maximum of 500 × 190 mm. The wider MY-380FW lists 50 × 30 mm minimum and 500 × 300 mm maximum. Their machine dimensions and weights also differ.
What can the machine print?
Dates, batch numbers, lot codes and short text using the selected characters. The listed character set includes numbers 0–9 and letters A–Z. Confirm the exact supplied characters and required layout before ordering.
How many lines can it print?
The original specification states a maximum of 11 lines and “15 pcs letters” based on 2 × 3.5 × 6.8 mm characters. Confirm the allowable characters per line and complete layout against your required text.
Does 300 impressions/min mean 300 finished pieces/min?
The table lists ≤300 printing impressions/min and 12.5 m/min working speed, while an earlier feature description cites up to 30 pieces/min. These references do not establish one finished-piece throughput. Confirm sustained output with the actual material, size and feeding setup.
Which ink roll and characters are included?
The listed default ink roll is φ36 × 32 mm and default character size is 2 × 3.5 × 6.8 mm (T). Other listed sizes require confirmation. One machine includes one selected type of ink roll and characters.
Can it print on bottles or act as an inkjet printer?
This is a solid-ink roll coder with interchangeable characters for compatible flat products. Curved bottle coding or other print technologies require a separate equipment selection.
