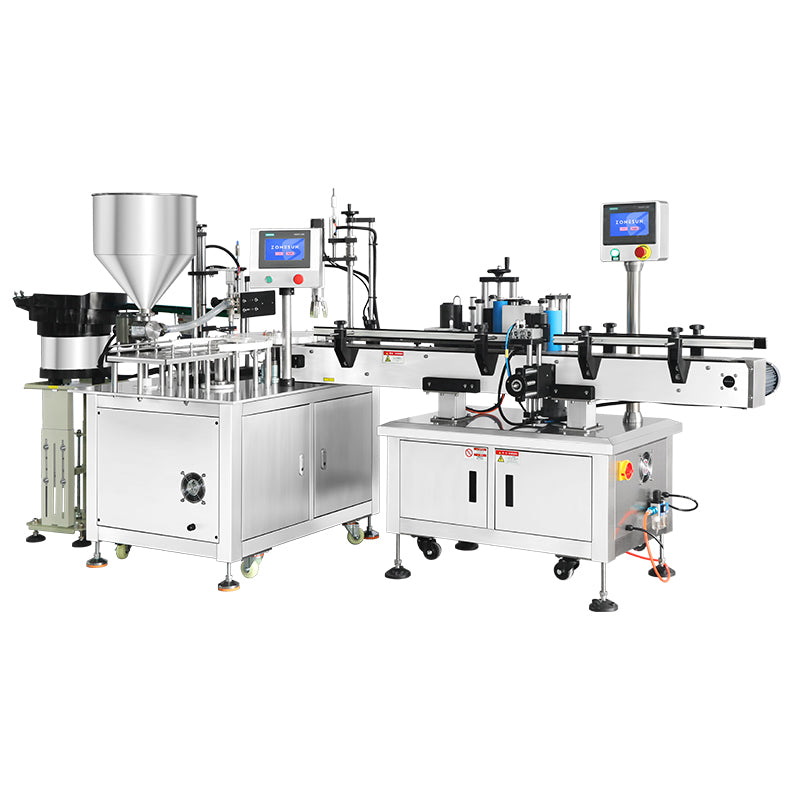

ZONESUN ZS-AFCL3 Automatic Monoblock Filling Capping and Labeling Machine Bottle Packaging Line

DESCRIPTION

Streamline your packaging workflow with the ZS-AFCL3—an integrated system that combines piston filling, servo-driven capping, and precision labeling. Designed for liquid products, this automated line ensures accurate dispensing, secure sealing, and professional labeling in one continuous process. Ideal for cosmetics, pharmaceuticals, and food-grade applications.

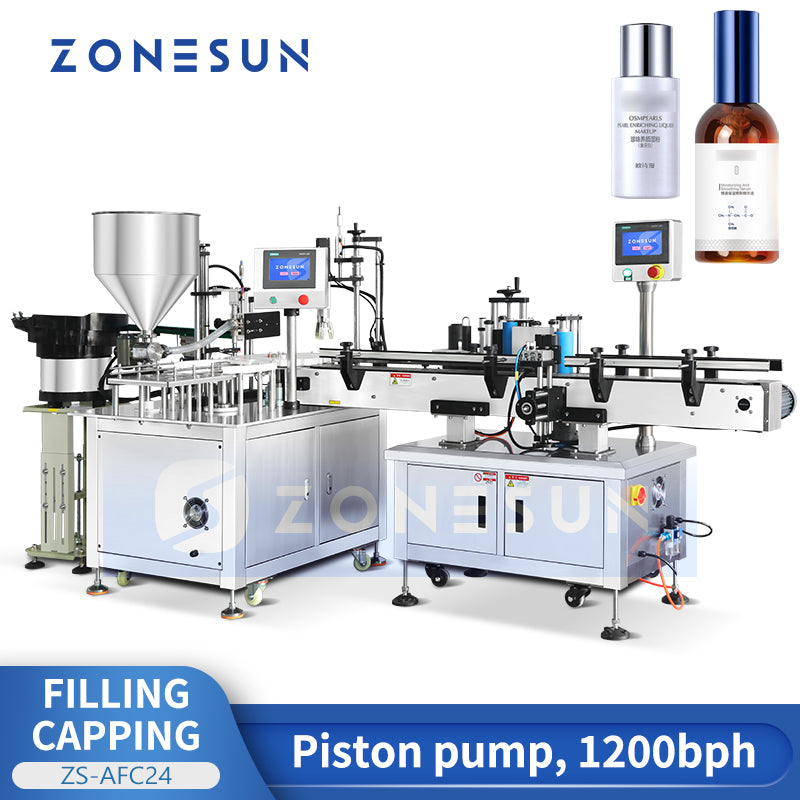

ZS-AFC24 Piston Filling & Capping Machine Specifications
Parameter Specification
Model ZS-AFC24
Voltage 220V / 110V, 50/60Hz
Power 1.5 kW

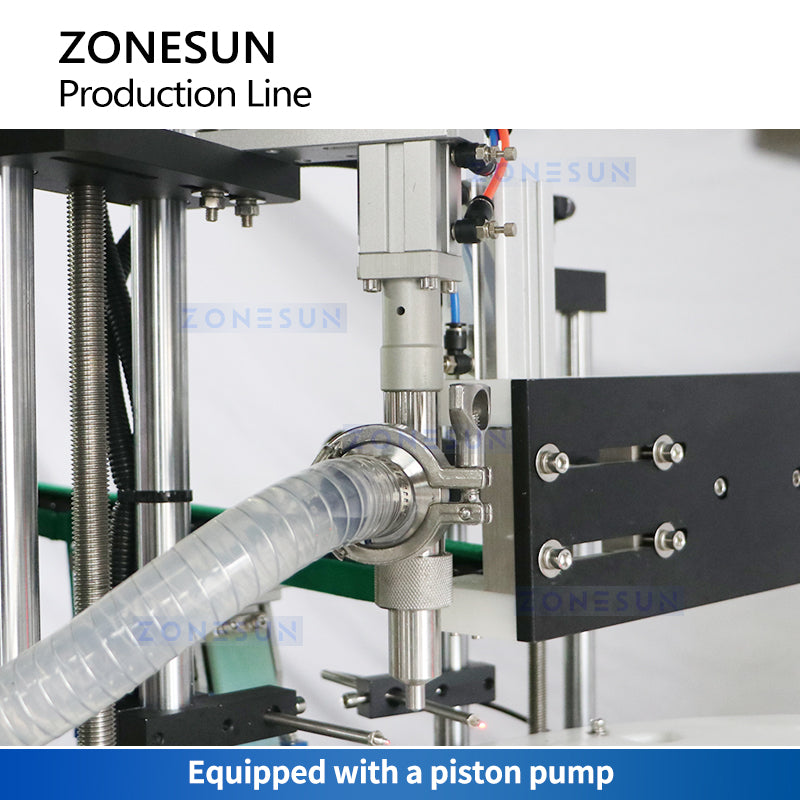

Filling Pump Type Piston Pump
Working Speed Approx. 20 bottles/min (depends on bottle & material)
Filling Range 20–100 ml (customizable)
Filling Accuracy ±1%
Suitable Bottle Height 35–150 mm (customizable)
Suitable Bottle Diameter 14–42 mm (customizable)
Capping Mechanism Servo motor driven screw
Cap Size Compatibility Customizable
Hopper Capacity 30 L
Air Pressure 0.6–0.8 MPa
Machine Dimensions Approx. 1453 × 1320 × 1551 mm
Machine Weight Approx. 300 kg

ZS-TB260R Labeling Machine Specifications
Parameter Specification
Model ZS-TB260R
Power Supply AC 220V, 50/60Hz, 1000W
Labeling Speed 25–50 bottles/min (depends on bottle size)
Labeling Accuracy ±1 mm
Suitable Bottle Diameter Φ12–100 mm
Label Size Length: 20–300 mm<br>Height: 15–150 mm (customizable)
Roll Inner Diameter Φ76 mm
Roll Outer Diameter Φ350 mm
Conveyor Size 112 × 2000 mm (W × L)
Machine Dimensions Approx. 2000 × 820 × 1380 mm (L × W × H)
Machine Weight Approx. 180 kg
Packing Dimensions Approx. 2100 × 890 × 1520 mm (L × W × H)
Package Weight Approx. 250 kg
