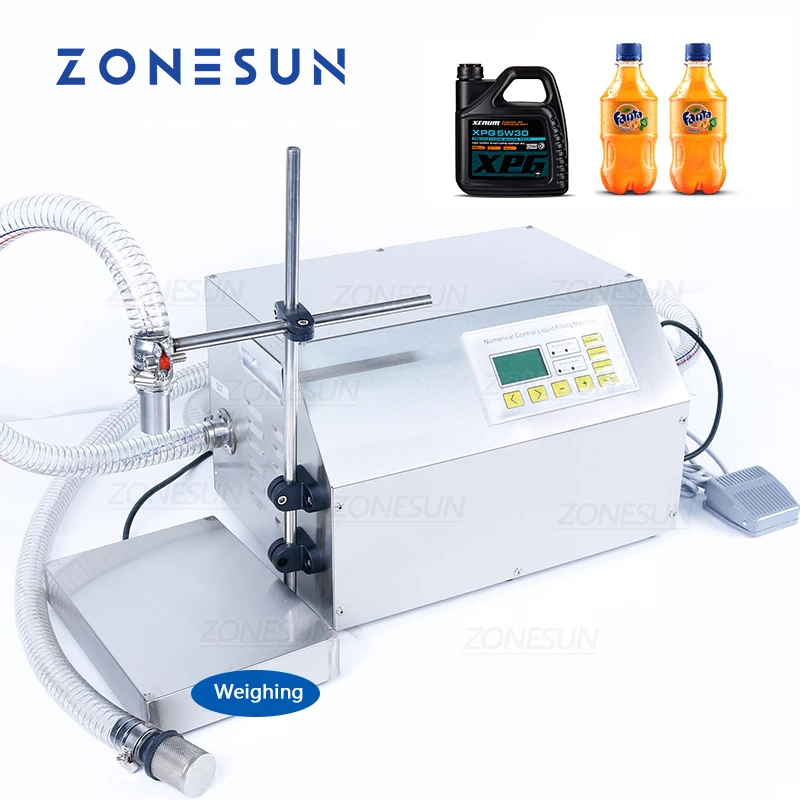

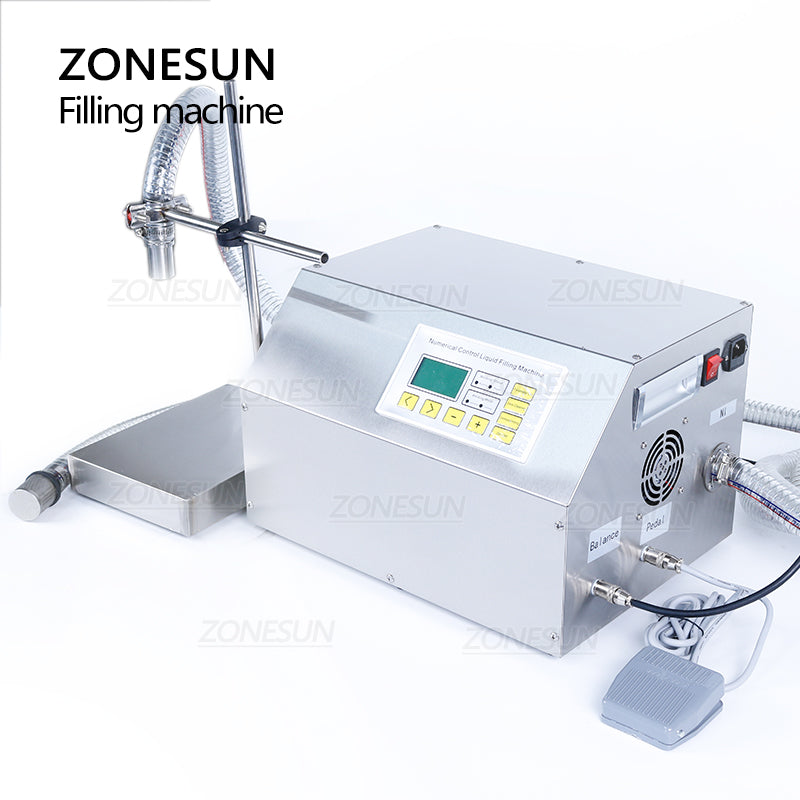

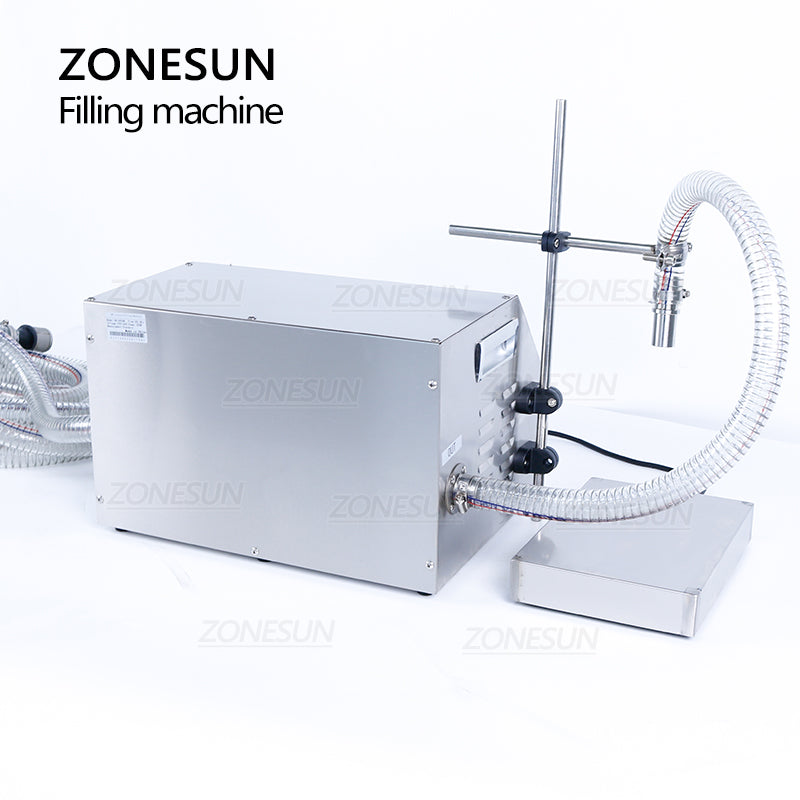

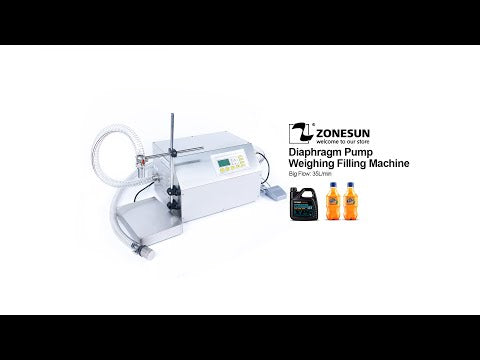

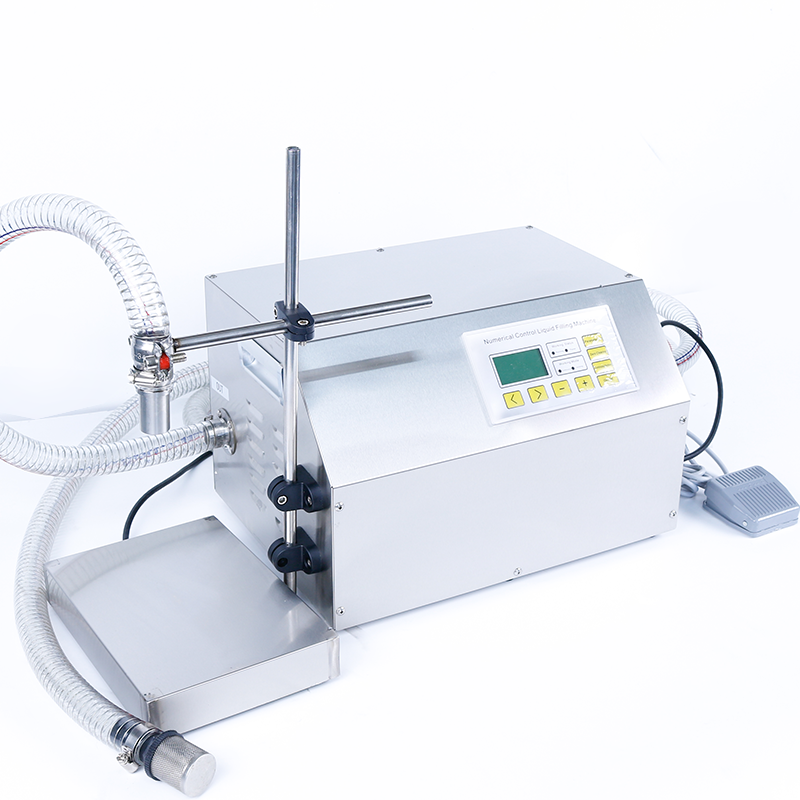

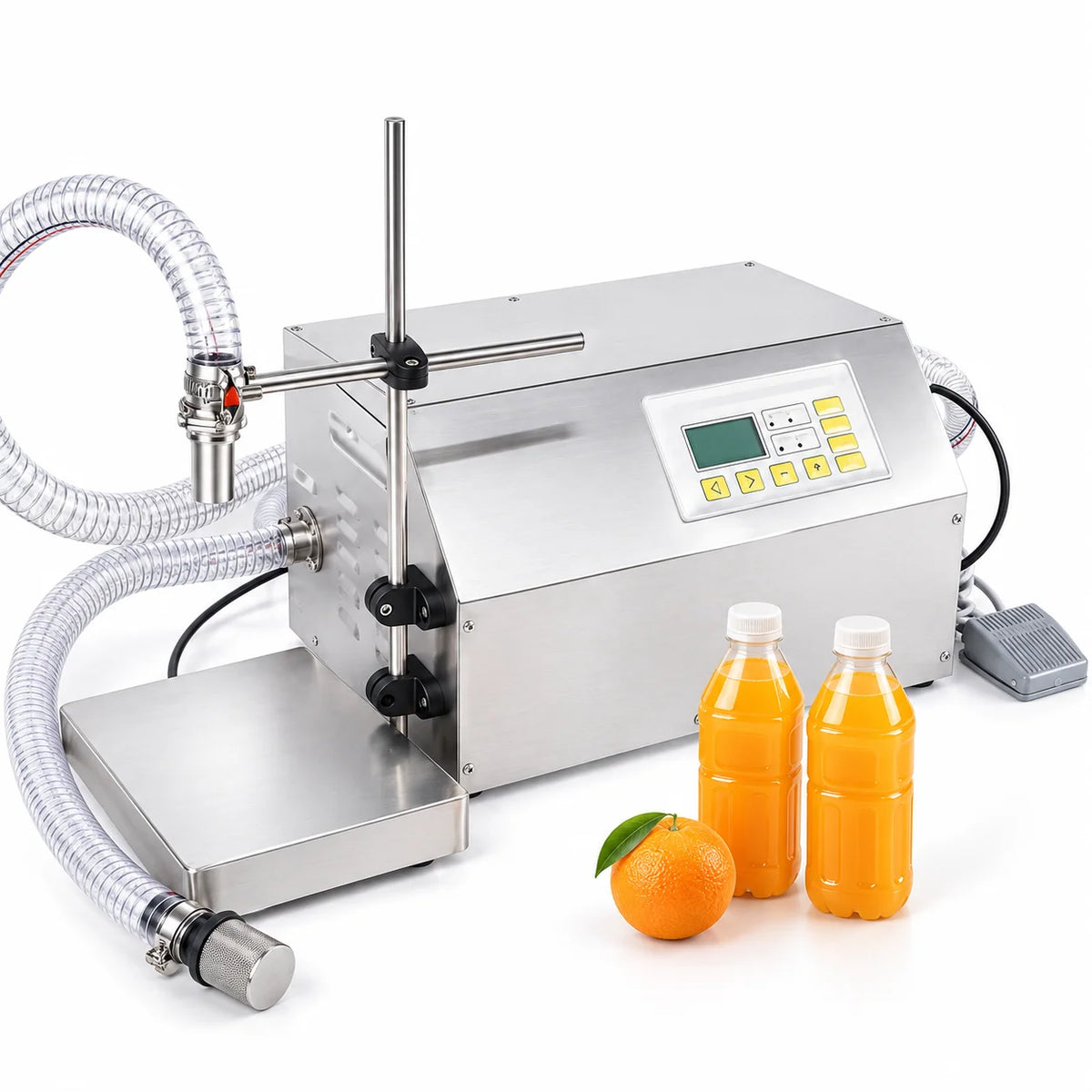

ZONESUN ZS-DP431W Big Flow Diaphragm Pump Liquid Weighing Filling Machine
ZONESUN ZS-DP431W Big Flow Diaphragm Pump Liquid Weighing Filling Machine
Couldn't load pickup availability
Parameter
|
Machine Model |
ZS-DP431W |
|
Machine Power |
220V/110V 50-60Hz 550W |
|
Machine Pump |
Diaphragm Pump |
|
Max Flow Rate |
35L/min |
|
Filling Range |
150mL-35L |
|
Weighing Range |
150g-10kg |
|
Repetitive Error |
±10g |
|
Filling Nozzle Diameter |
Φ25mm&Φ19mm |
|
Hose Diameter |
19mm(ID)/25mm(OD) & 25mm(ID)/32mm(OD) |
|
Hose Length |
3m(inlet) /1m(outlet) |
|
Max Suction Distance |
4m |
|
Liquid Temperature |
＜50℃ |
|
Memory Function without Electricity |
Available |
|
Machine Size |
400mm*300mm*260mm |
|

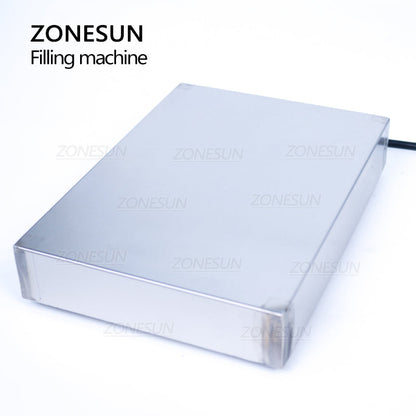

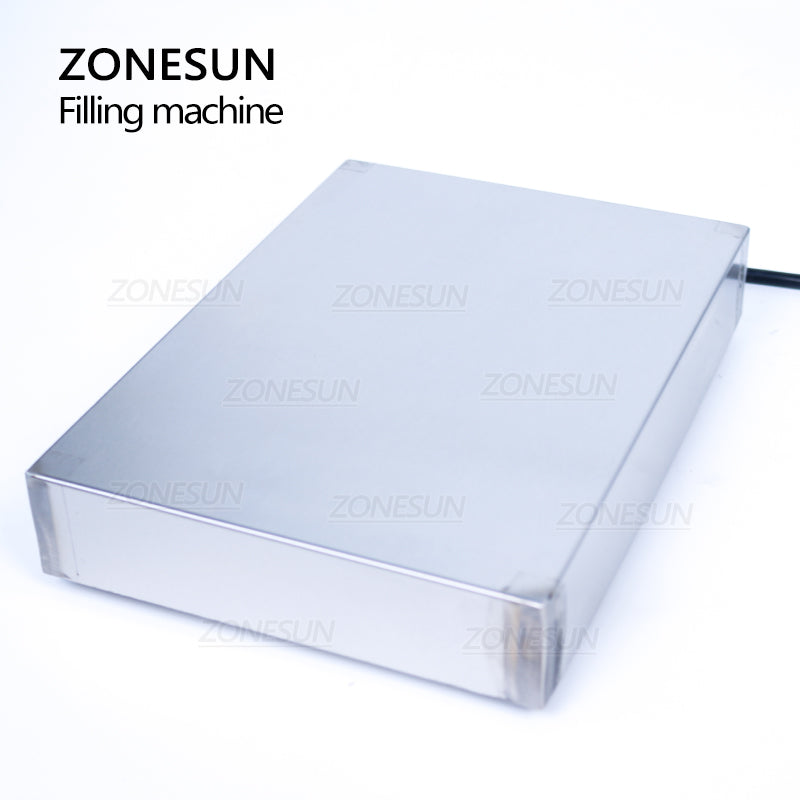

Weighing Device Size |
250*180*42mm |
|
Machine Weight |
14kg |
|
Package Weight |
16kg |
|
Package Size |
410*500*330mm(machine) 400*370*270mm(weighing device) |
Description
This semi-automatic weighing filling machine is suitable for liquid that has no particles, such as liquor, shampoo, juice, essential oil, etc. It is a big flow one, which is 35L/min, greatly improving working efficiency. The machine can be widely used in pharmaceutical, daily chemical, food, catering industries.

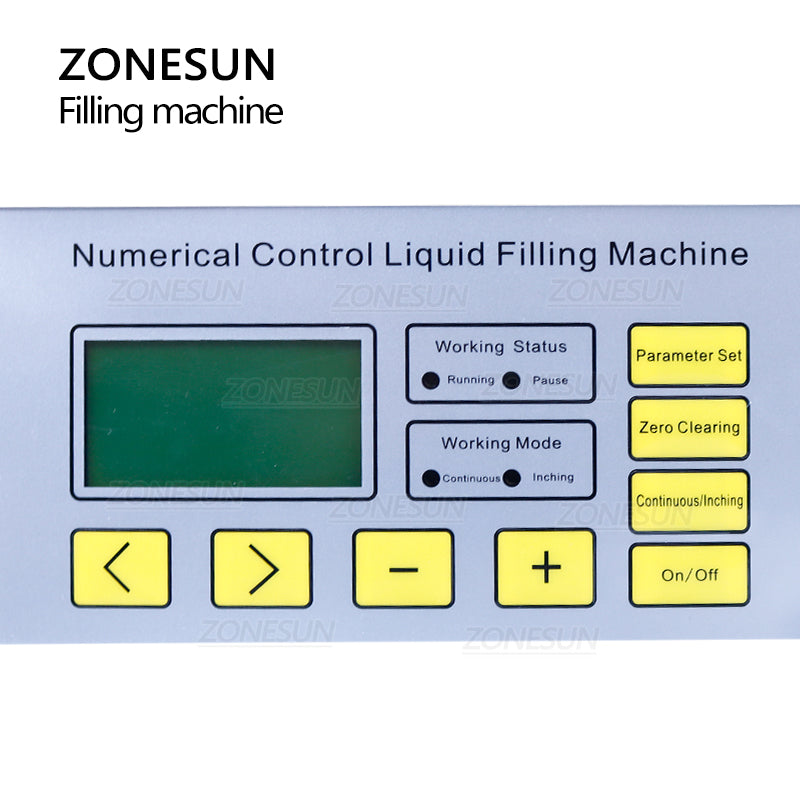

NUMERICAL CONTROL PANEL
The control panel allows operators to set the filling weight, select the working mode, and monitor automatic production counts.

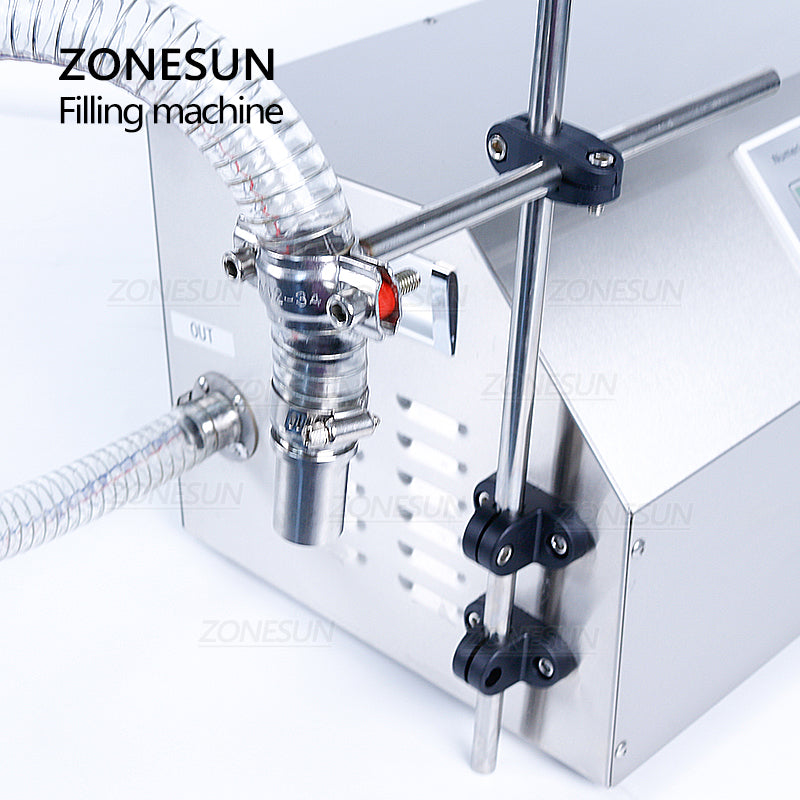

HEIGHT-ADJUSTABLE ANTI-DRIP NOZZLE
The anti-drip filling nozzle supports accurate filling and helps reduce working errors. Its height can be adjusted to suit different bottles.
MANUAL AND AUTOMATIC MODES
The machine supports automatic and manual operation. In manual mode, filling is controlled using the foot pedal.
WEIGHING FILLING SYSTEM
The operator sets the required filling weight, and the actual weight is displayed on the control panel during filling.
LIQUID FILTER
The filter removes impurities from the liquid to help maintain liquid quality.
CARRYING HANDLE
The carrying handle makes the machine convenient to move between work areas.
