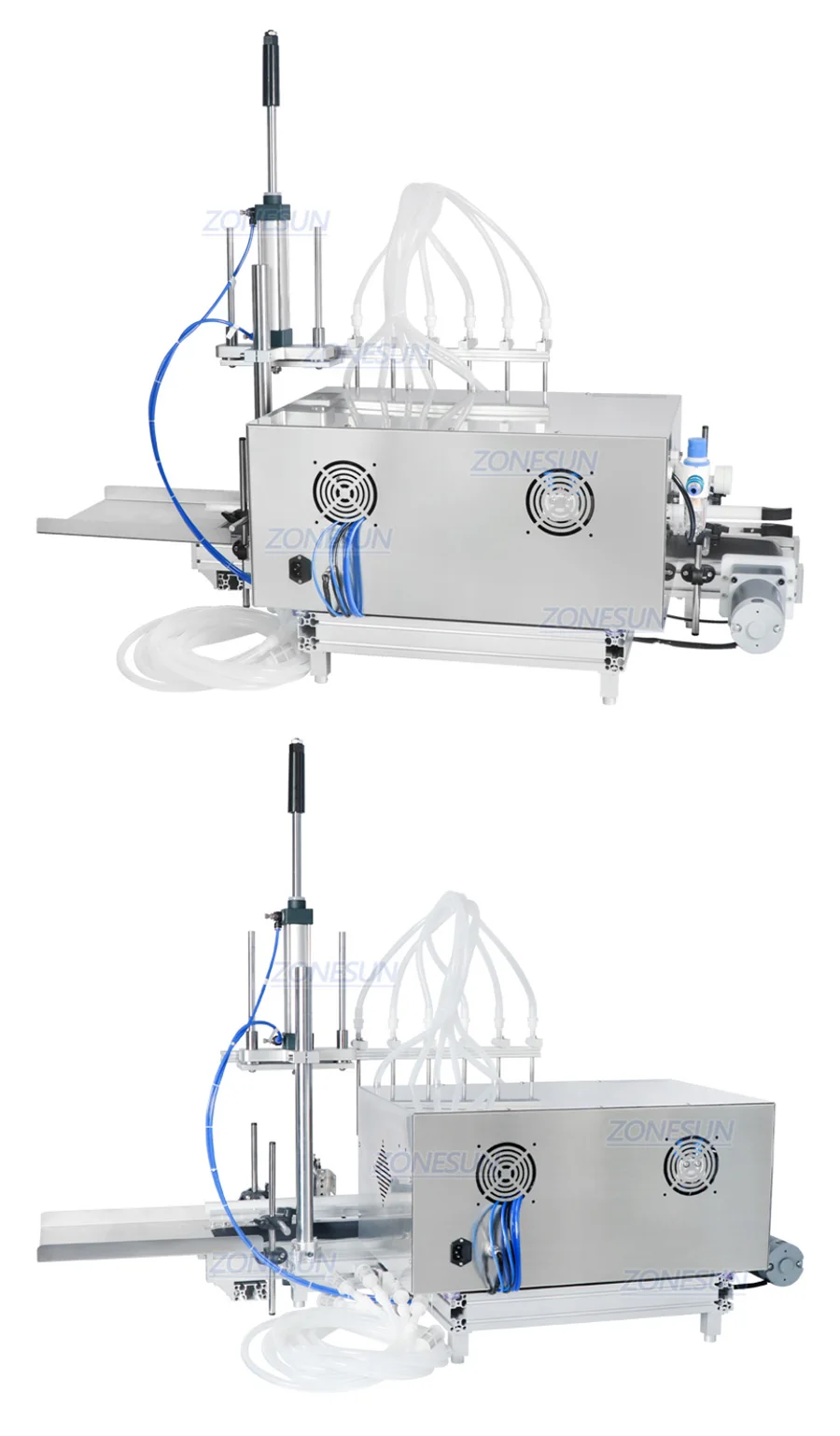

ZONESUN ZS-DTMP6 Automatic 6 Diving Nozzles Magnetic Pump Liquid Filling Machine
ZONESUN ZS-DTMP6 Automatic 6 Diving Nozzles Magnetic Pump Liquid Filling Machine
Couldn't load pickup availability
Parameter
|
Machine model |
ZS-DTMP6A |
ZS-DTMP6B |
|
Power supply |
110/220V 50-60HZ |
|
|
Maximum flow velocity |
5500ml/min (Each nozzle and base on water)
|
9000ml/min (Each nozzle and base on water）
|
|
Working speed |
30-40 bottles/min (based on 50-1000ml filing volume)
|
40-55 bottles/min (based on 50-1000ml filling volume)
|
|
Air pressure |
0.3-0.4MPa |
|
|
Filling accuracy |
≤±1% (For water) |
|
|
Diameter of Filling Nozzle |
6/8mm |
|
|
Delay Range |
0.01-999.9s |
|
|
Count Range |
1-99999 Times |
|
|
Filling Volume |
3-1000ml(220V)3- 500ml(110V) |
|
|
Size of air compressor connector |
OD8mm |
|
|
Bottle height |
＜220mm(Can be customized,max height 300mm) |
|
|
Package Size |
About 1120*740*460mm |
|
|
Gross weight |
About 68kg |
About 70kg |
Description
This automatic desktop filling machine is suitable for low-viscousity liquid, like juice, perfume, cooking oil, etc. With six diving heads, it can be used for foamy liquid. Equipped with magnetic pump, it will fill liquid accurately. The six nozzles can be controlled separately. The machine can be widely used in medicine, cosmetic, daily chemical industries.
