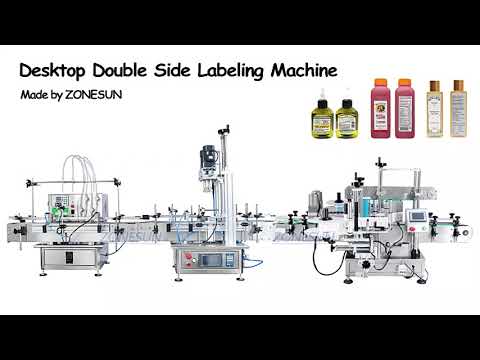

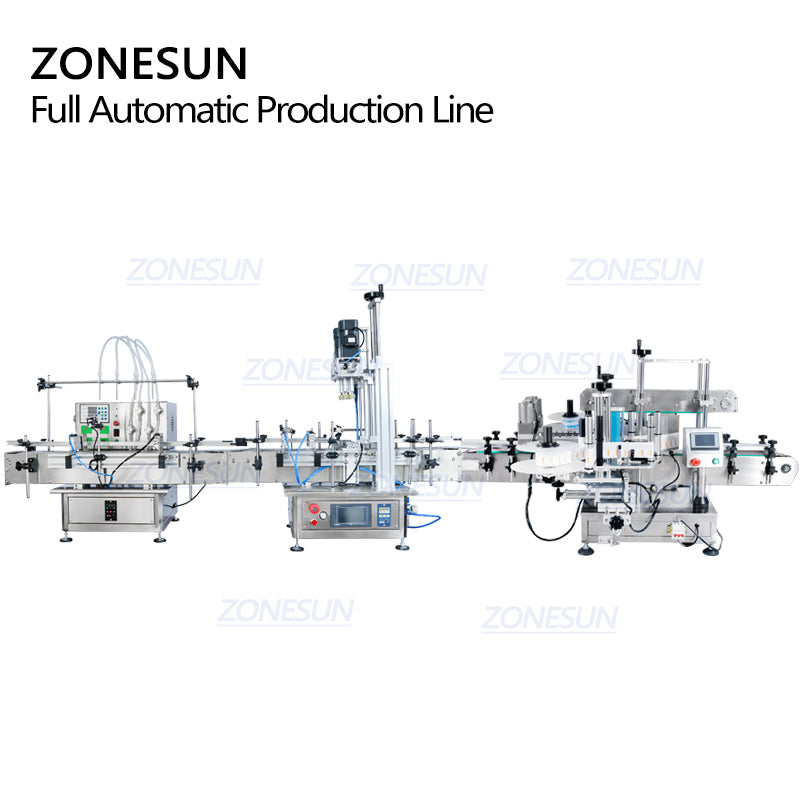

ZONESUN ZS-FAL180C9 Automatic Square Bottle Liquid Filling Capping And Double Sides Labeling Machine

Description

Specification Details
Machine Model ZS-DTMP4Y Filling Machine
Power Supply 110/220V, 50–60Hz, 300W
Maximum Flow Velocity 5500 ml/min (per nozzle, based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Dimensions Standard 8 mm and 6 mm
Delay Range 0.01–999.9 s
Count Range 1–999999 times
Air Compressor Connector Size OD 6/8 mm
Package Size Approx. 1150 × 650 × 820 mm
Net Weight / Gross Weight Approx. 59 kg / 89 kg

Capping Machine
Bottle Height 60–270 mm
Bottle Cap Diameter 18–70 mm
Working Speed 20–40 bottles/min (depending on bottle and caps)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Conveyor Length 1117 mm
Air Compressor Connector Size OD 8 mm
Machine Size Approx. 1120 × 580 × 1110 mm
Package Size Approx. 1160 × 610 × 1140 mm
Net Weight / Gross Weight Approx. 69 kg / 97.5 kg

Machine Model ZS-TB300M Labeling Machine
Voltage 110V–60Hz / 220V–50Hz
Power 3100 W
Working Speed 30–100 bottles/min
Labeling Accuracy ±0.5 mm
Suitable Labeling Size ≤200 mm (Width, customizable)
Roll Inside Diameter Φ75 mm
Roll Outside Diameter Φ250 mm
Suitable Bottle Size Diameter ≤100 mm, Height ≤350 mm
Conveyor Size Approx. 1800 × 100 mm
Machine Size Approx. 1800 × 1130 × 1300 mm (L × H × W)
Machine Weight Approx. 208 kg

Application

It is suitable for filling low-viscosity liquid, such as perfume, essential oil, milk, etc. The machine is suitable for double sides labeling on square bottles. This production line can be widely used in medicine, cosmetic, drink industries.

ADJUSTABLE FILLING NOZZLES

The four filling nozzles can be controlled independently, and their height can be adjusted using the mounting bracket.

STAINLESS STEEL MAGNETIC PUMPS

The stainless steel magnetic pumps require little maintenance and provide accurate filling for products such as solutions, essential oils, and ink.

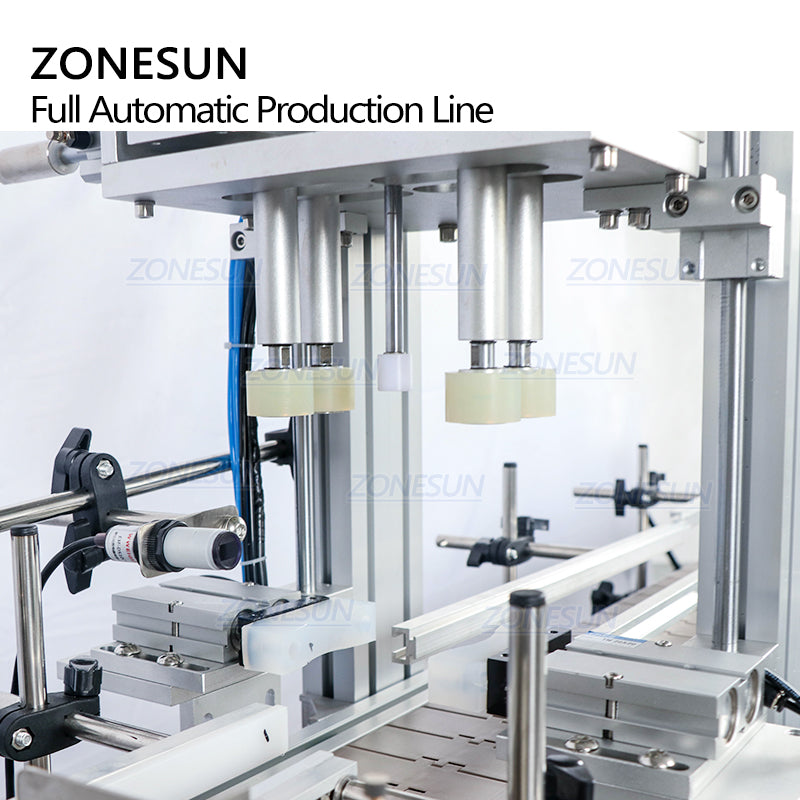

AUTOMATIC CAPPING

The capping system automatically presses and tightens different cap types, including caps for smoke-oil, spray, and beverage bottles.

ELECTRIC EYE

The electric eye accurately detects passing containers to support automatic operation and reduce production errors.

ADJUSTABLE LABELING STRUCTURE

Rotary controls adjust the labeling structure in different directions for accurate label placement.

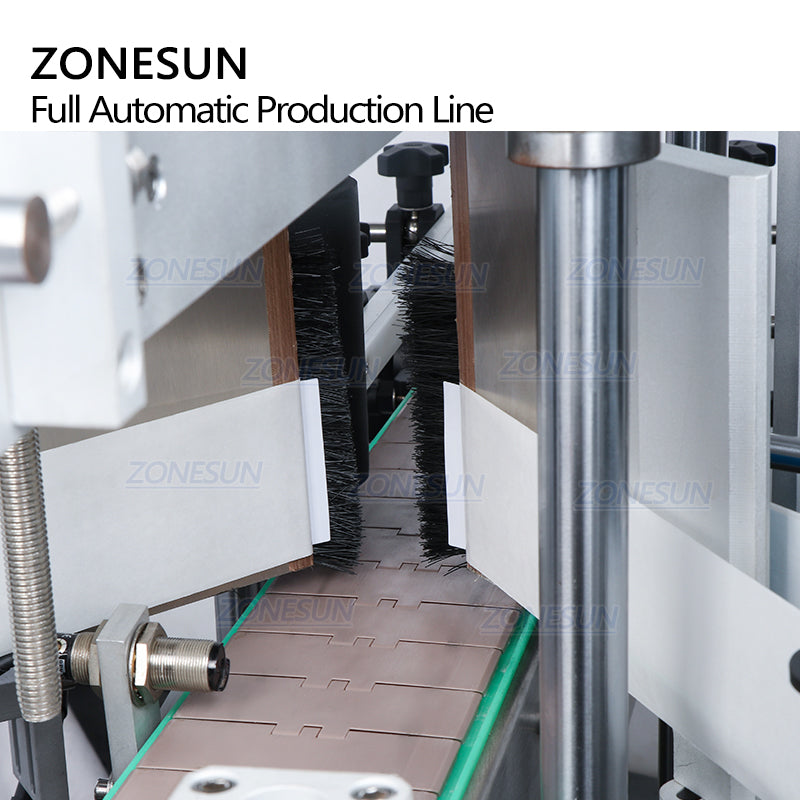

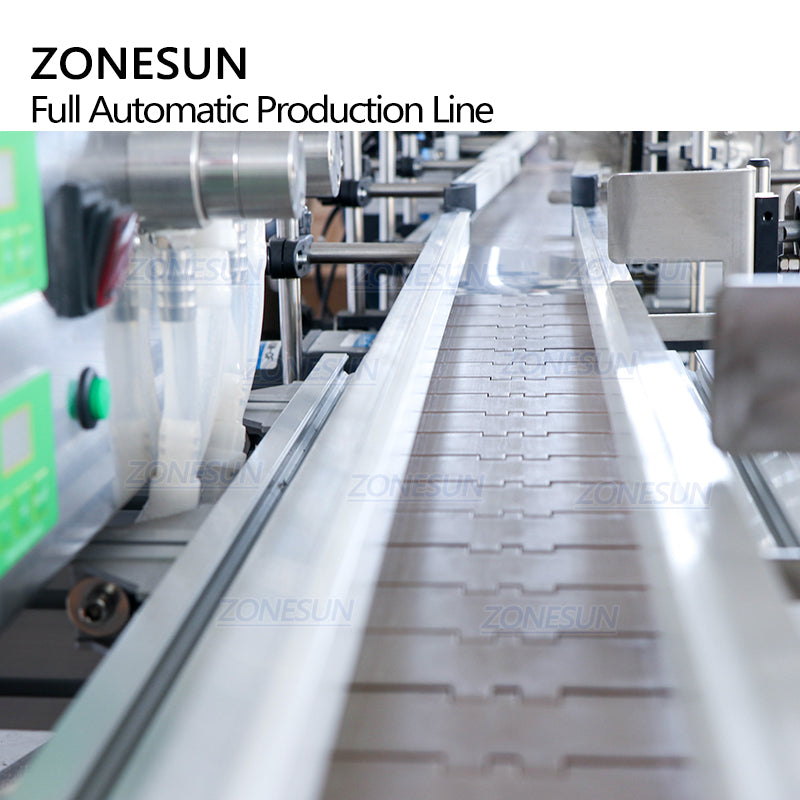

ADJUSTABLE BOTTLE GUIDES

The bottle-guiding structure can be adjusted to match the bottle diameter, supporting stable container transfer at different operating speeds.
