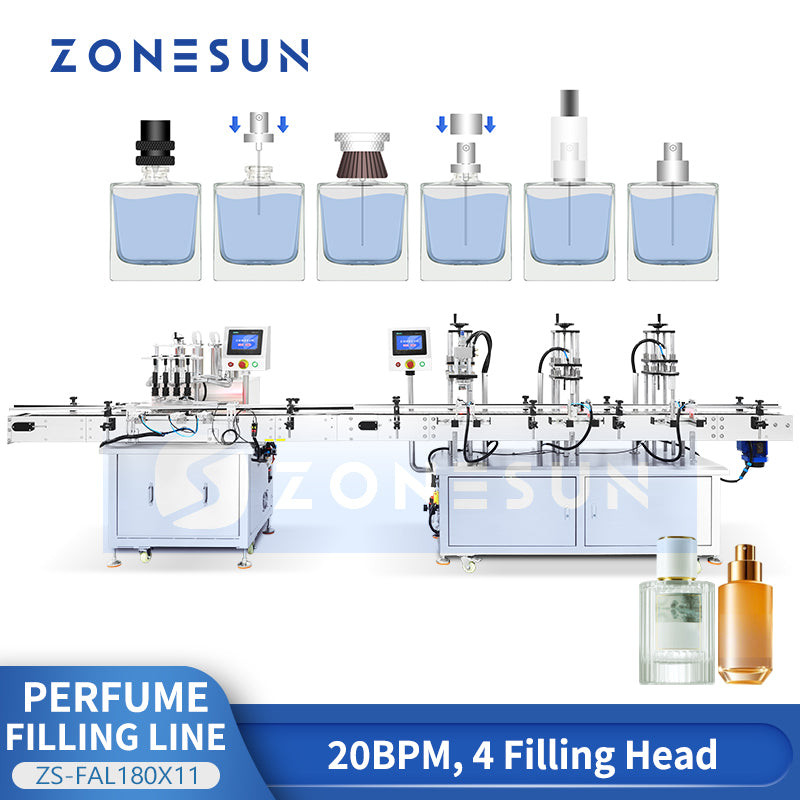

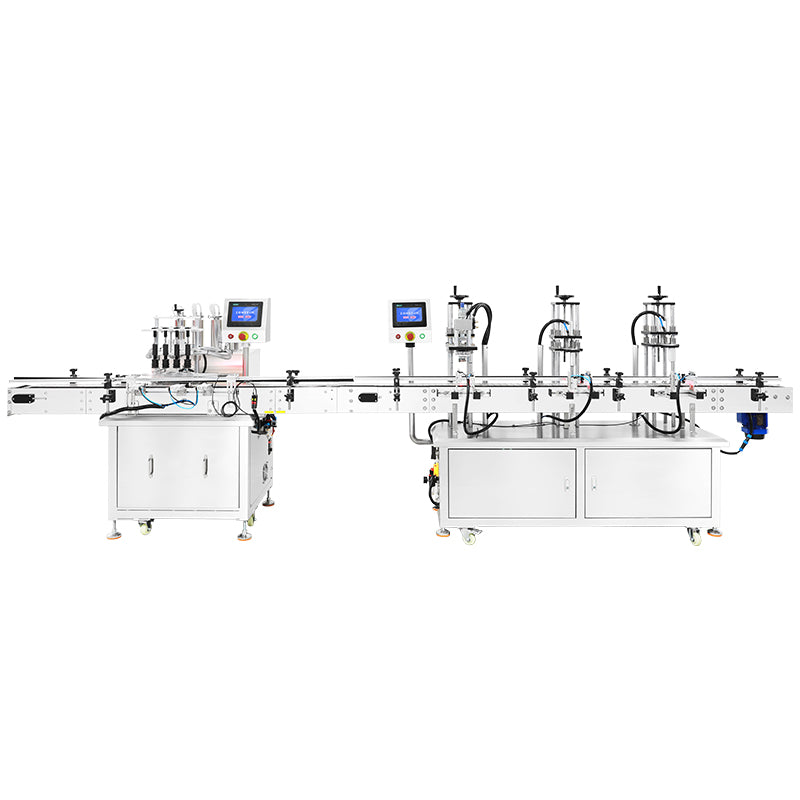

ZONESUN ZS-FAL180X11 Automatic Perfume Bottle Vacuum Filling & Crimping Production Line

Description

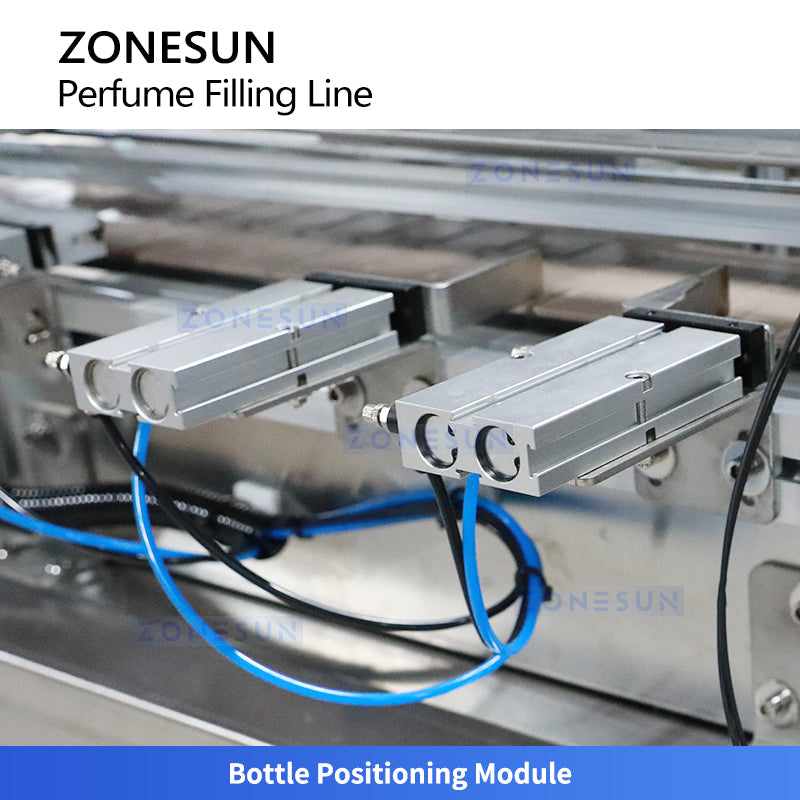

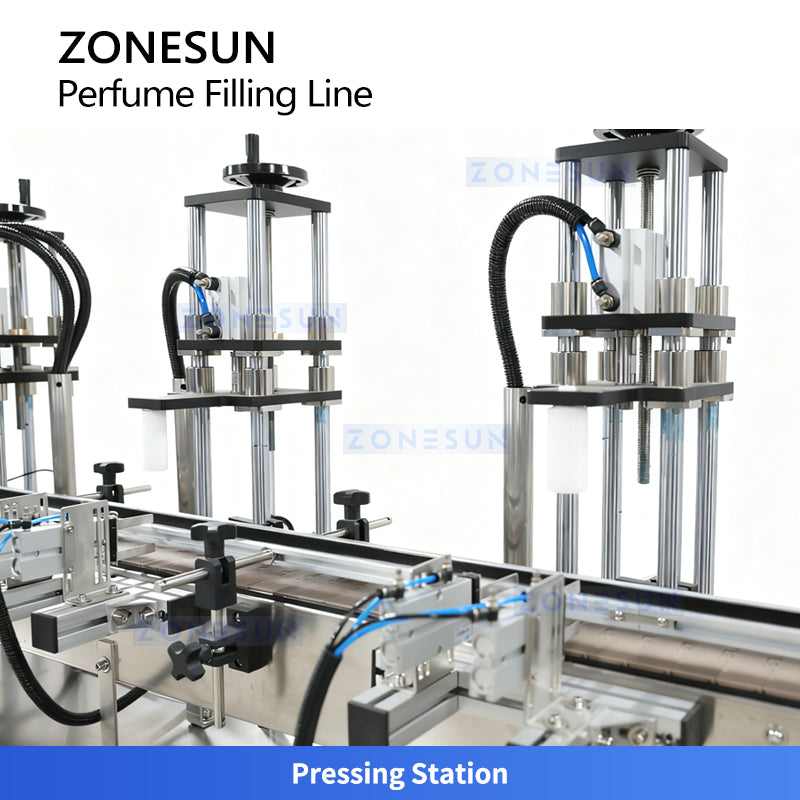

The ZONESUN ZS-FAL180X11 is a fully automatic perfume filling and crimping production line engineered for high-speed, high-precision bottling of fragrances. Featuring a multi-head pneumatic filling system, servo-driven bottle positioning, and integrated pump head pressing and crimping stations, it enables seamless liquid dosing, and cap sealing with minimal manual intervention. Designed for glass perfume bottles and cosmetic containers, the system supports up to 20 bottles per minute with ±1 mm liquid level accuracy, ensuring consistent quality and elegant presentation across all packaging stages.

ZS-VTZL4A — 4-Head Liquid Filling Machine Specifications

• Machine Model: ZS-VTZL4A

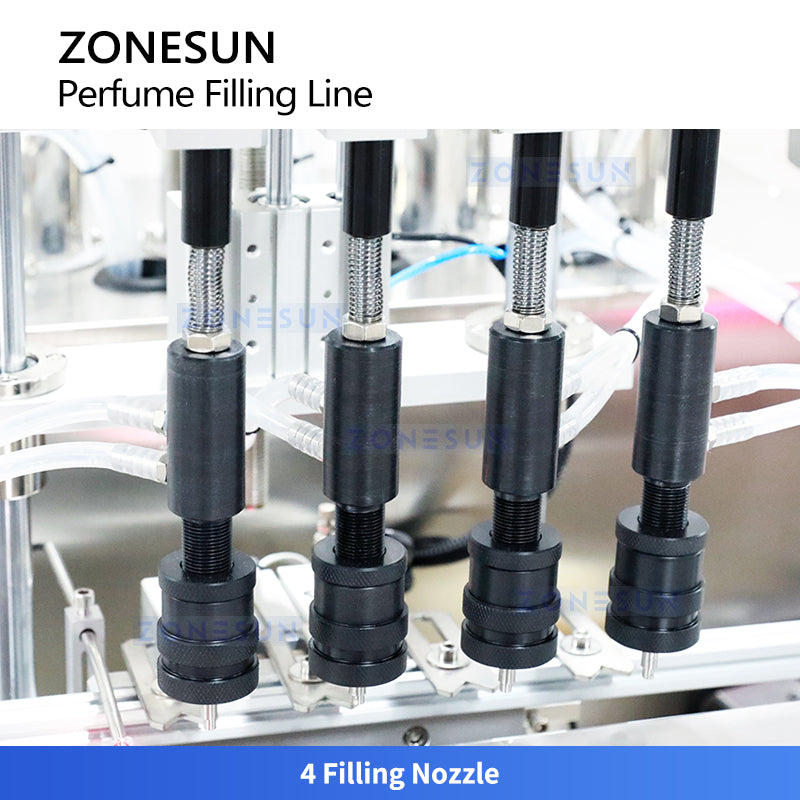

• Filling Head Count: 4 heads
• Air Pressure Requirement: 0.5–0.8 MPa
• Liquid Level Accuracy: ±1%
• Max Applicable Viscosity: 20 Cps (static viscosity)
• Working Speed: 20–40 bottles/min
• Bottle Height: ≤250 mm
• Bottle Opening Size: ≤Ø8–28 mm
• Adjustable Liquid Level (from mouth): 15–50 mm
• Pumping Rate: 5.5 L/min
• Machine Dimensions: About 2020 × 800 × 1410 mm
• Package Dimensions: About 1330 × 2105 × 1670 mm
• Package Weight: About 335 kg

ZS-YG11U — Automatic Bottle Capping Machine Specifications

• Machine Model: ZS-YG11U
• Voltage: 220V / 110V, 50–60 Hz
• Power: 1.5 kW
• Capping Speed: About 20 bottles/min (varies by bottle and cap size)
• Suitable Bottle Height: 50–200 mm
• Bottle Cap Diameter: 15–22 mm
• Bottle Mouth Diameter: 14–20 mm
• Suitable Bottle Diameter: 40–110 mm
• Machine Dimensions: About 2050 × 690 × 1590 mm
• Machine Weight: About 345 kg
