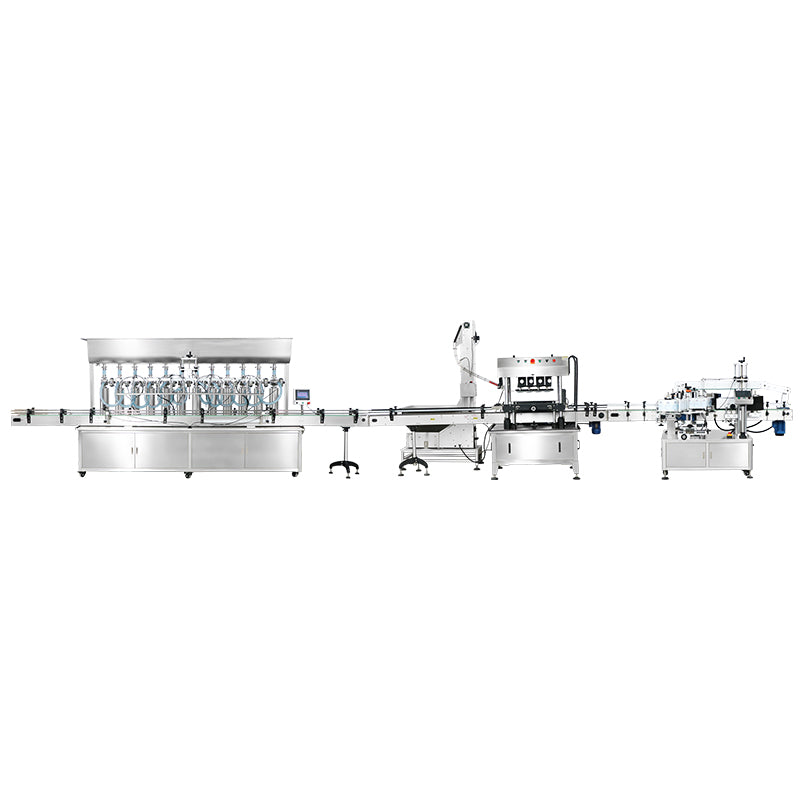

ZONESUN ZS-FAL180Z4 5L Oil Filling Capping Round Flat Bottle Double Labeling Production Line
ZONESUN ZS-FAL180Z4 5L Oil Filling Capping Round Flat Bottle Double Labeling Production Line
Regular price
$31,327.00 USD
Regular price
Sale price
$31,327.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
DESCRIPTION
The ZS-FAL180Z4 is a complete oil packaging line tailored for 5-liter bottles. It features piston pump filling, automatic cap feeding via elevator, and high-speed capping with 8 rubber wheels. Designed for both round and flat bottles, it supports single or double labeling for versatile presentation. Ideal for edible oil, lubricants, and other viscous liquids, this system ensures precision, speed, and adaptability in industrial packaging.
✨ Key Highlights

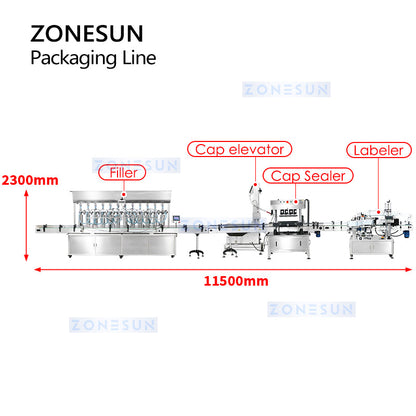

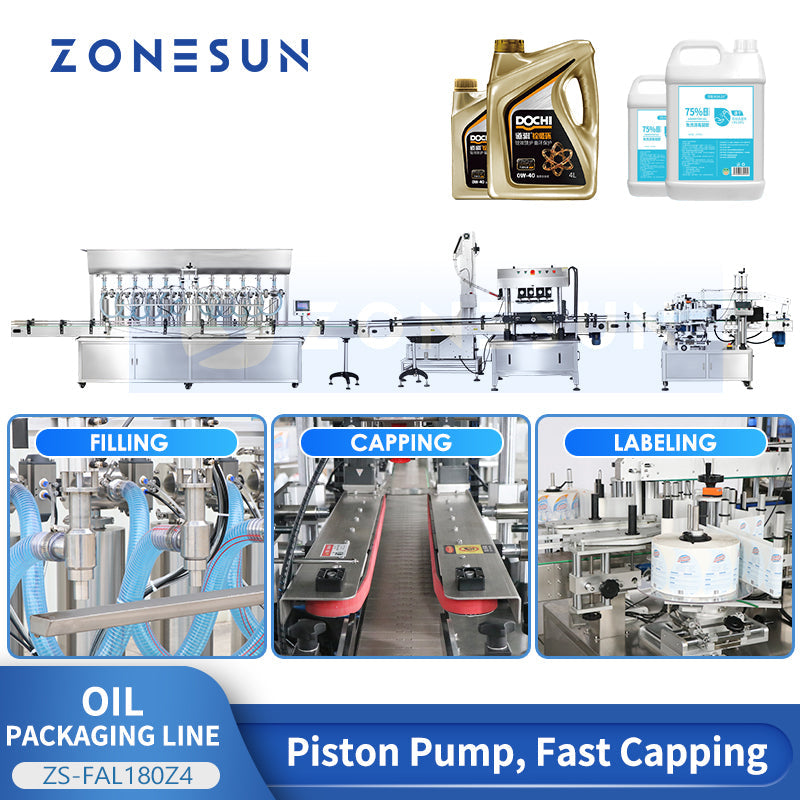

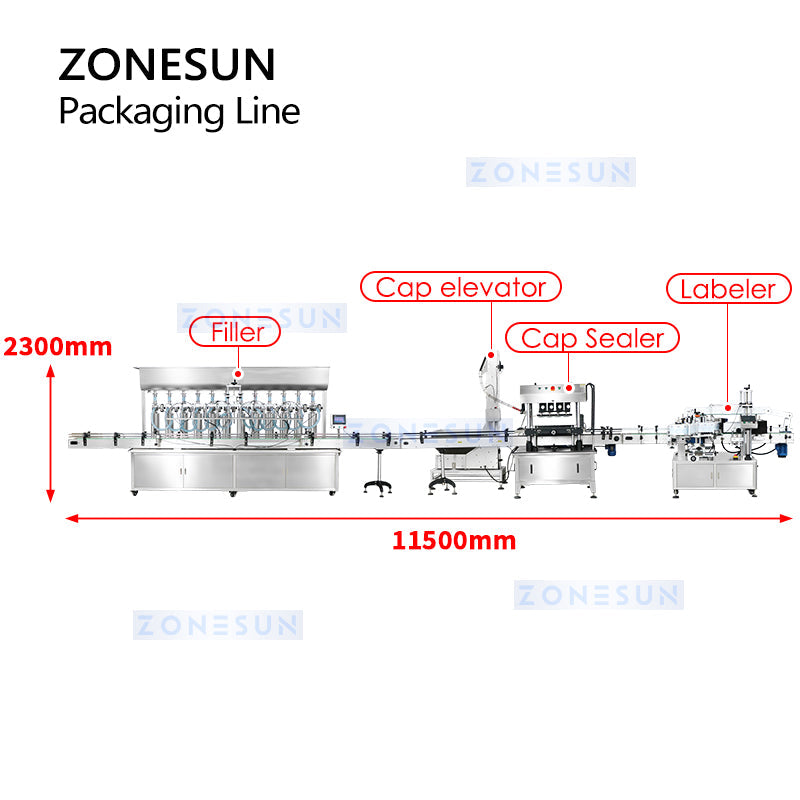

- Complete 3-in-1 Packaging Line – Integrates filling, capping, and labeling in one seamless system
- High-Speed Filling – 12 piston pump nozzles deliver 24–36 bottles/min for 5L bottles

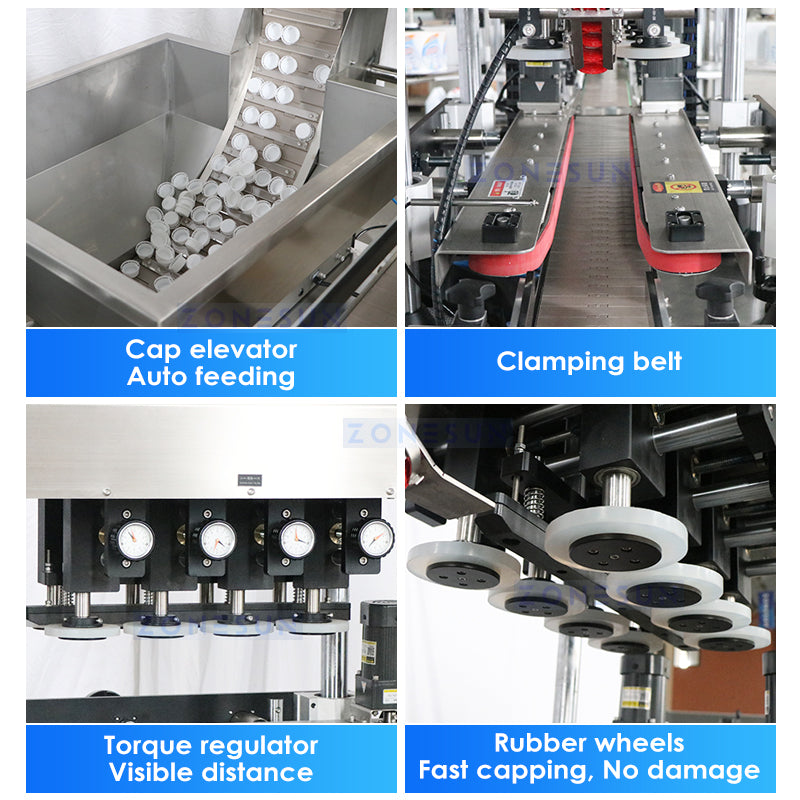

- Automatic Cap Feeding – Elevator-fed cap sorter eliminates manual cap placement
- 8-Wheel High-Speed Capping – Consistent torque for secure, leak-free sealing at 3,000–5,000 bottles/h
- Round & Flat Bottle Compatible – Handles diverse bottle shapes without changeover complexity
- Single & Double-Side Labeling – Flexible label application for full branding coverage

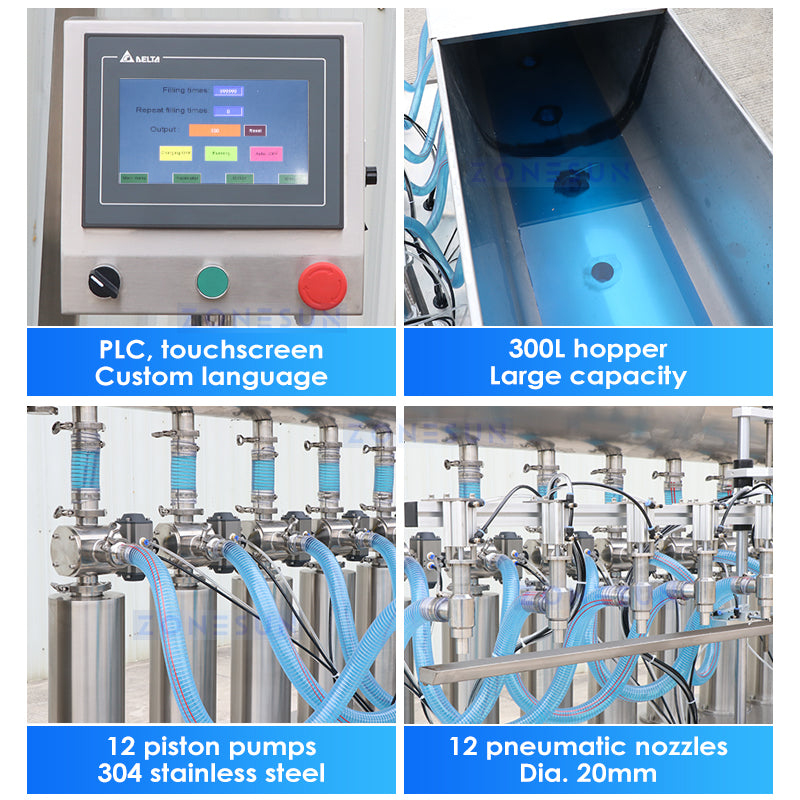

- Large 300L Hopper – Reduces refill frequency for uninterrupted production runs
- Dual Voltage Support – Available in 110V and 220V for global deployment
- Food-Grade 304 Stainless Steel Pumps – Safe for edible oil, lubricants, and viscous liquids
📋 Specifications
Filling Machine — ZS-YT12T-12PX
| Voltage | 110V / 220V, 50–60Hz, 1KW |
| Filling Range | 1,000–5,000ml (customizable) |
| Working Speed | 24–36 bottles/min (5,000ml) |
| Hopper Capacity | Approx. 300L |
| Air Pressure | 0.6–0.8 MPa |
| Filling Nozzles | 12 pneumatic nozzles, Ø20mm |
| Pump Type | 12 piston pumps, 304 stainless steel |
| Conveyor | Length: 4m, Width: 152mm |
| Machine Size | Approx. 5,300 × 2,100 × 1,480mm |
Capping Machine — ZS-XG440B
| Voltage | 110V / 220V, 50–60Hz |
| Power | 2KW |
| Production Capacity | 3,000–5,000 bottles/h |
| Bottle Diameter | 35–120mm (customizable) |
| Bottle Height | 60–200mm (customizable) |
| Machine Size | Approx. 2,000 × 900 × 1,600mm |
| Package Size | Approx. 2,100 × 1,100 × 1,800mm |
| Machine Weight | Approx. 300kg |
Labeling Machine — ZS-TB300B
| Labeling Speed | 60–350 bottles/min |
| Label Material Thickness | 20–120mm |
| Label Material Height | 30–350mm |
| Label Size (L × H) | 25–300mm × 15–200mm |
| Round Bottle | Single & Double Side |
| Flat Bottle | Double Side |
| Roll Inner Diameter | Φ76mm |
| Roll Outer Diameter | Φ350mm |
| Machine Size | Approx. 2,120 × 940 × 1,500mm |
