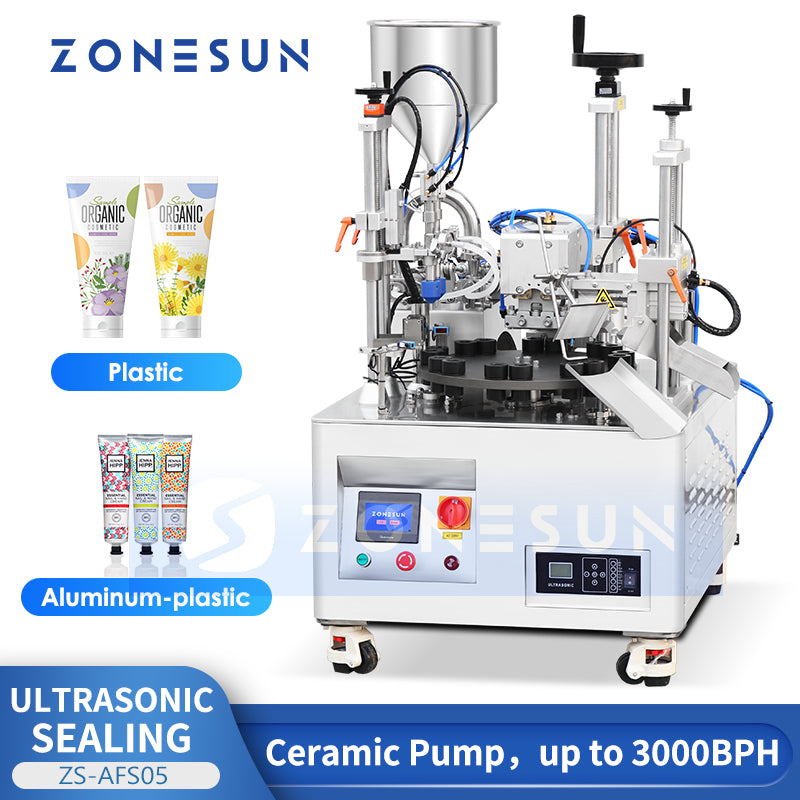

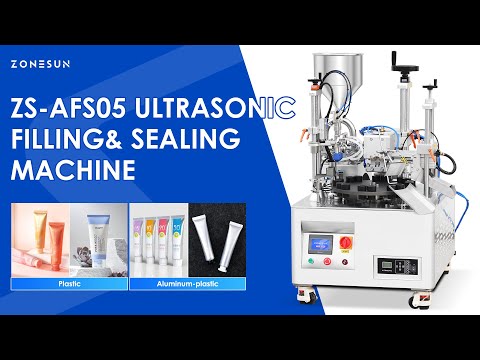

ZONESUN ZS-AFS05 Ceramic Pump Paste Tube Filling and Sealing Machine

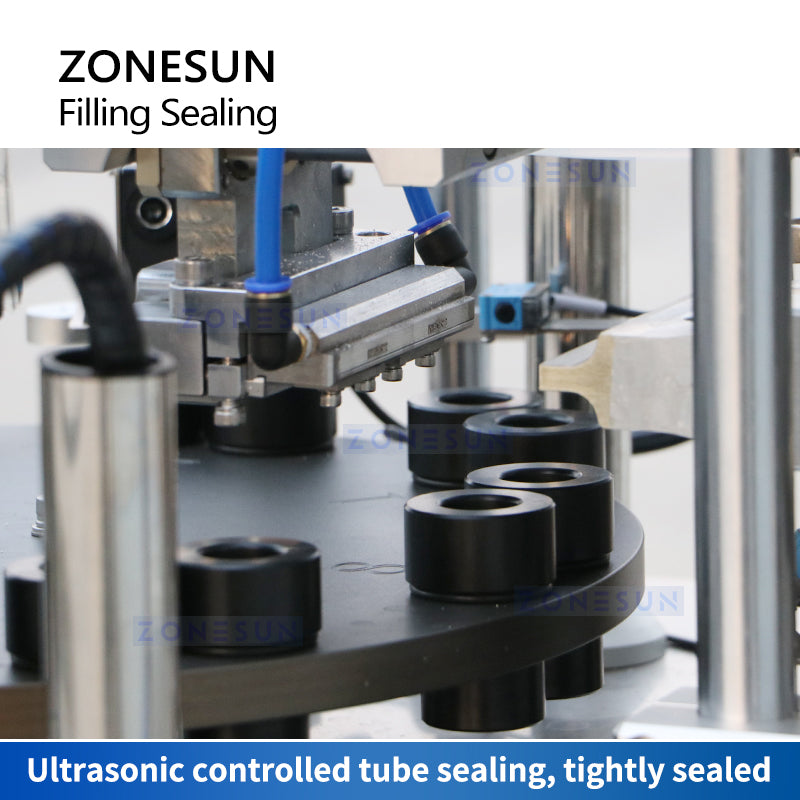

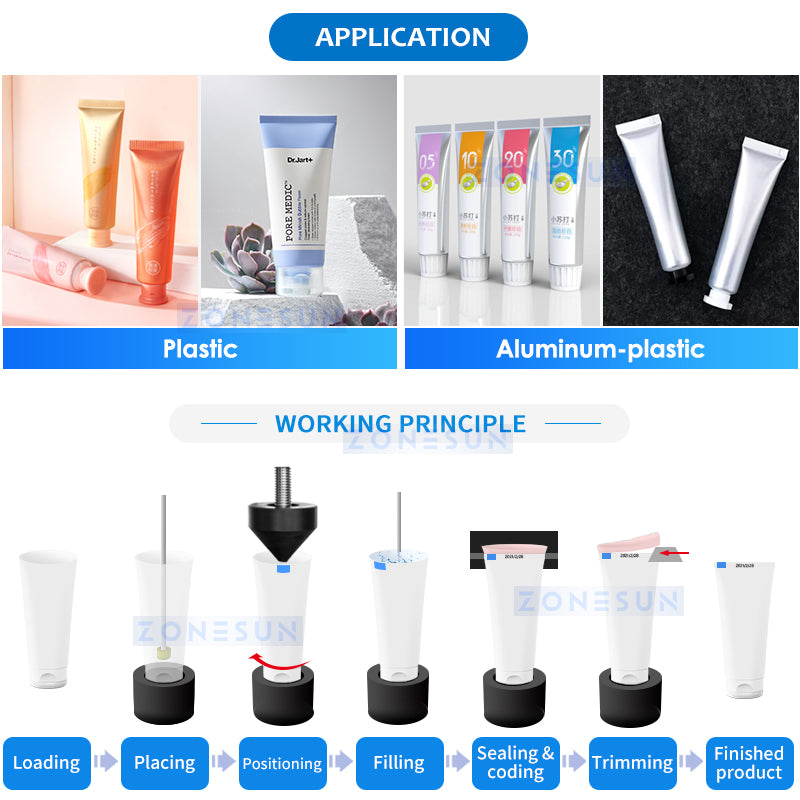

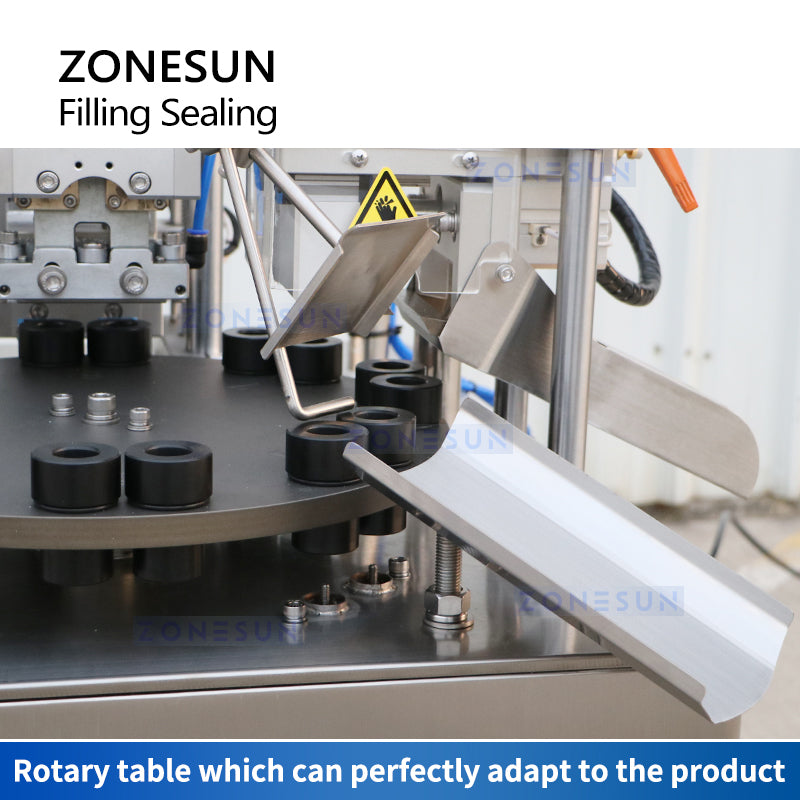

This is a tube filling and sealing machine. Users need to place the tubes and it will automatically proceed filling and sealing process. The sealing uses ultrasonic technology, bringing a perfect sealing effect. This monoblock filling sealing machine can automatically fill paste into soft tube, seal soft tube at one rotary table. Ultrasonic controlled sealing structure, this ensures packaging quality and accuracy. It is suitable for packaging hand cream, lip gloss, facial cleanser.

Parameter

• Machine Model: ZS-AFS05
• Voltage: 220V/110V 50-60Hz
• Power: 2.6KW
• Filling Range: 3-30 ml
• Filling Pump: Ceramic Pump/Piston Pump
• Quantity of Filling Nozzle: 2
• Filling Accuracy: ±0.25-0.5 ml(based on filling material and volume)
• Sealing Speed: 40-50 pcs/min
• Sealing Diameter: 13-22 mm
• Sealing Height: 50-210 mm
• Sealing Method: Ultrasonic Sealing
• Ultrasonic Frequency: 20KHz
• Air Pressure: 0.5 Mpa
• Machine Weight: About 212 kg
• Machine Size: About 900*1150*1360 mm
• Package Weight: About 1230*980*1460 mm
• Package Size: About 287 kg
