ZONESUN ZS-MSZH60 Automatic Vertical Top-Loading Cartoning Machine

Description

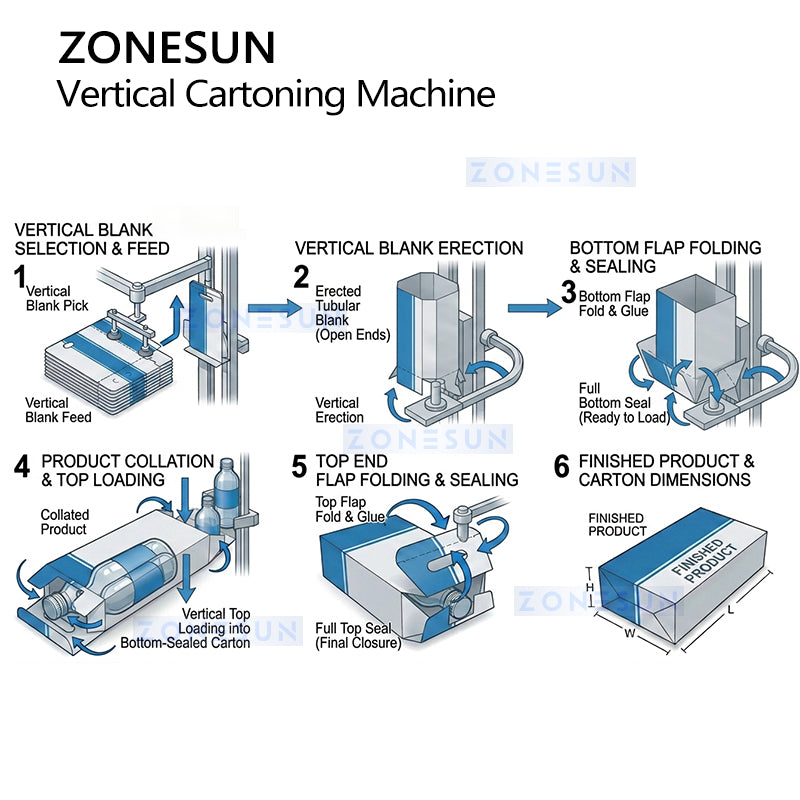

The ZONESUN ZS-MSZH60 is an automatic top-loading vertical cartoning machine designed for packing bottles, jars, and tubes in cosmetic and pharmaceutical industries. With a maximum output of 60 cartons per minute, it features 304 stainless steel construction and supports multiple sealing methods, including tuck-in and hot-melt glue. Its integrated rotary table, servo-driven conveying system, multi-step flap folding mechanism, and synchronized loading star wheel ensure smooth, accurate, and scratch-free high-speed operation. The compact, ergonomic design meets GMP requirements and fits seamlessly into modern production lines.

 Parameter

• Model: ZS‑MSZH60
• Max. Output: 60 cartons/min
• Max. Box Size: Customized
• Motion Type: Intermittent motion
• Carton Quality Requirement: 250–400 g/m², pre‑folded with deep crease
• Max. Power: 8 kW
• Compressed Air Working Pressure: 0.6–0.8 MPa
• Compressed Air Consumption: 150–200 L/min
• Machine Dimensions: 2700 × 2020 × 1800 mm
• Weight: About 1500 kg
