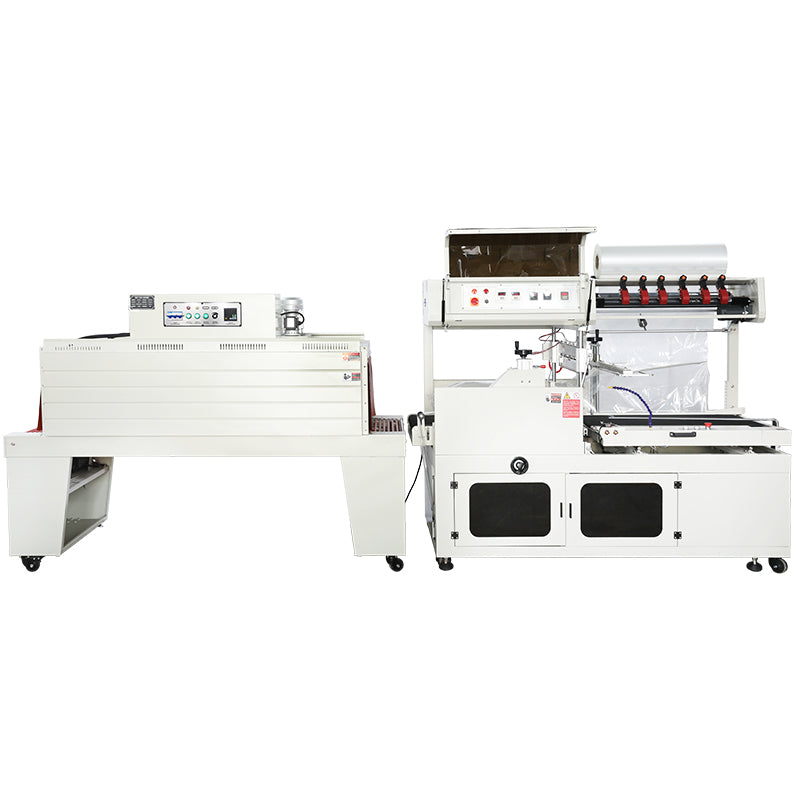

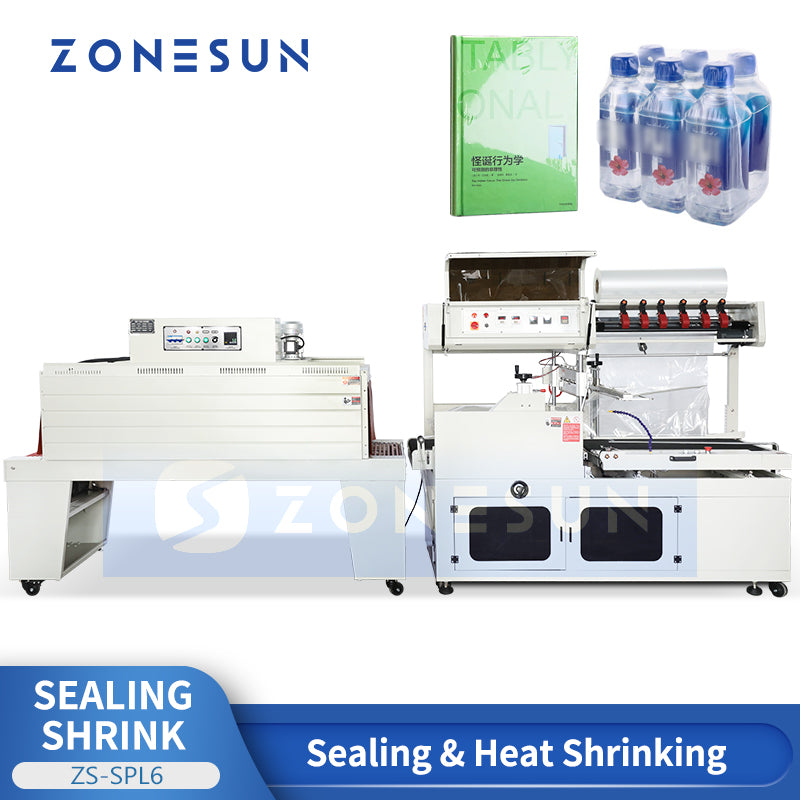

ZONESUN ZS-SPL6 Automatic Shrink Wrap Machine with Side Sealing and Heat Tunnel for Packaging Boxes Books Electronics and More

DESCRIPTION

The ZONESUN ZS-SPL6 automatic shrink wrap machine combines a side sealing system and heat shrink tunnel into one efficient unit. It automatically feeds POF, or PVC shrink film, performs precise side sealing, and delivers a clean, tight package through the shrink tunnel. Ideal for packaging boxes, books, and electronics, this shrink packaging machine boosts productivity and ensures professional packaging results.

Parameter

ZS-7540

• Model: ZS-7540
• Voltage: 380V, 50/60Hz
• Power: 22KW
• Carrying Capacity: Max 40 kg
• Furnace Road Size: 1800 × 750 × 400 mm
• Outline Dimension: 2100 × 1010 × 1470 mm
• Transporting Velocity: 0–10 m/min
• Applicable Shrink Film: POF, PVC

ZS-BF750

• Model: ZS-BF750
• Power Supply Voltage: AC 220V / 50–60Hz
• Air Pressure: 0.5–0.8 MPa
• Power: 2.26KW
• Packaging Speed: 15–30 bags/min
• Cutter Size: 800 × 770 mm
• Maximum Package Size:W + H ≤ 700 mm  L + H ≤ 800 mm  H ≤ 300 mm
• Conveyor Belt Width: 780 mm (adjustable)
• Applicable Shrink Film: POF / PE (Shrinkage Ratio: 60%)
• Table Height: 780 mm
• Overall Dimensions: 2320 × 1180 × 1540 mm
• Machine Weight: 400 kg
• Transport Load: 15–20 kg
