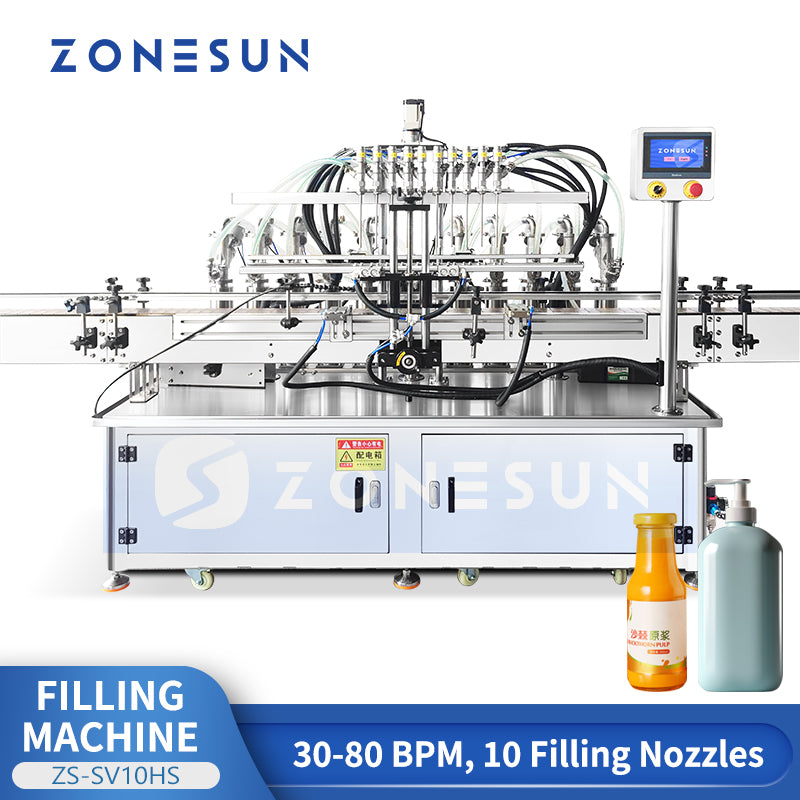

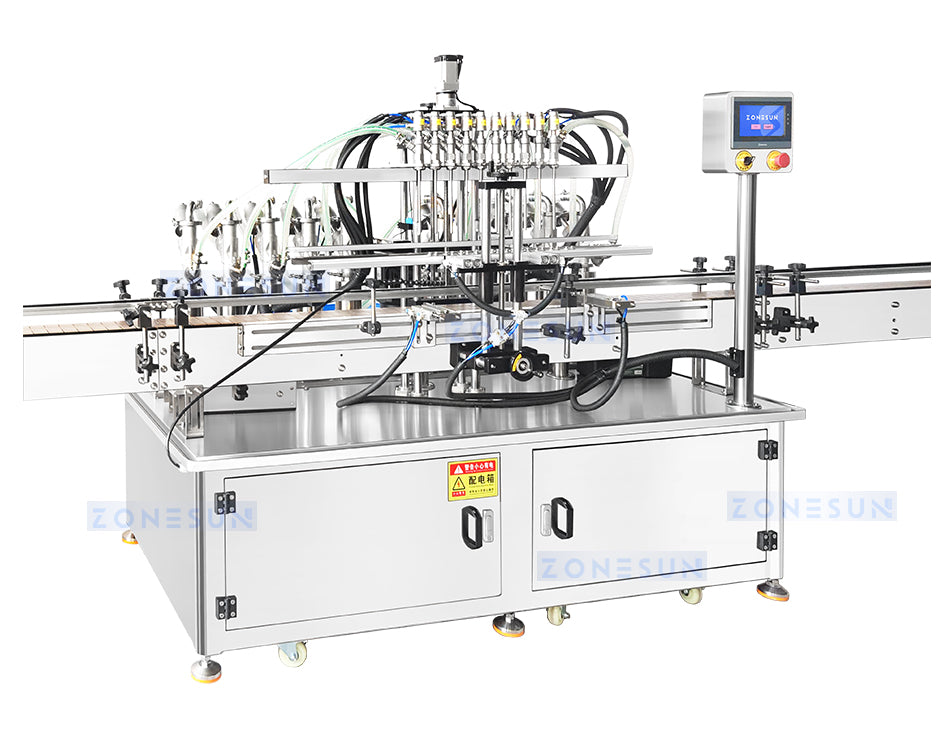

ZONESUN ZS-SV10HS Automatic 10-Head Servo Piston Filling Machine for Laundry Detergent Llotion

Description

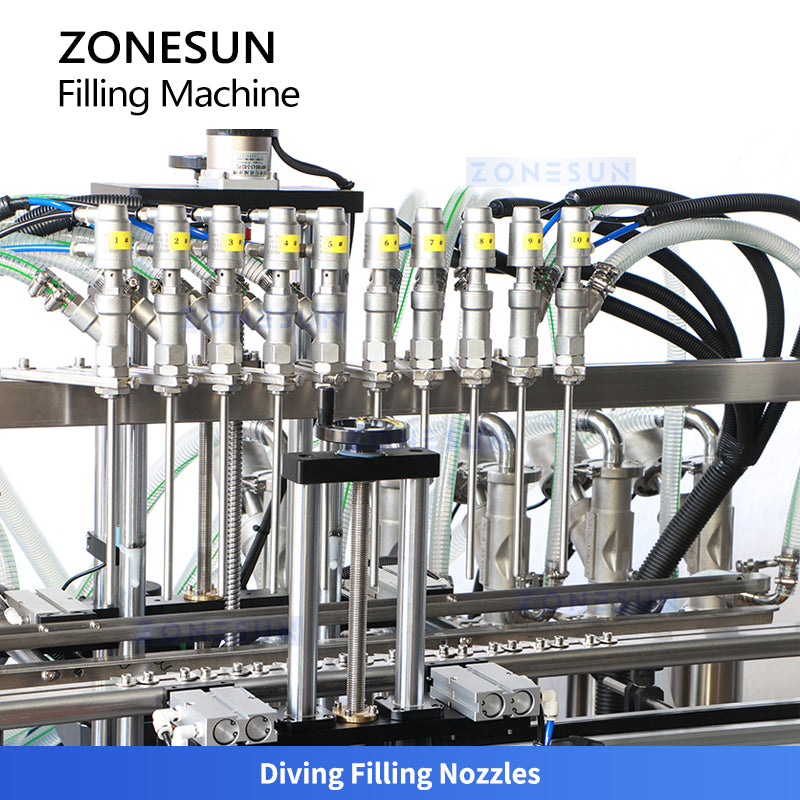

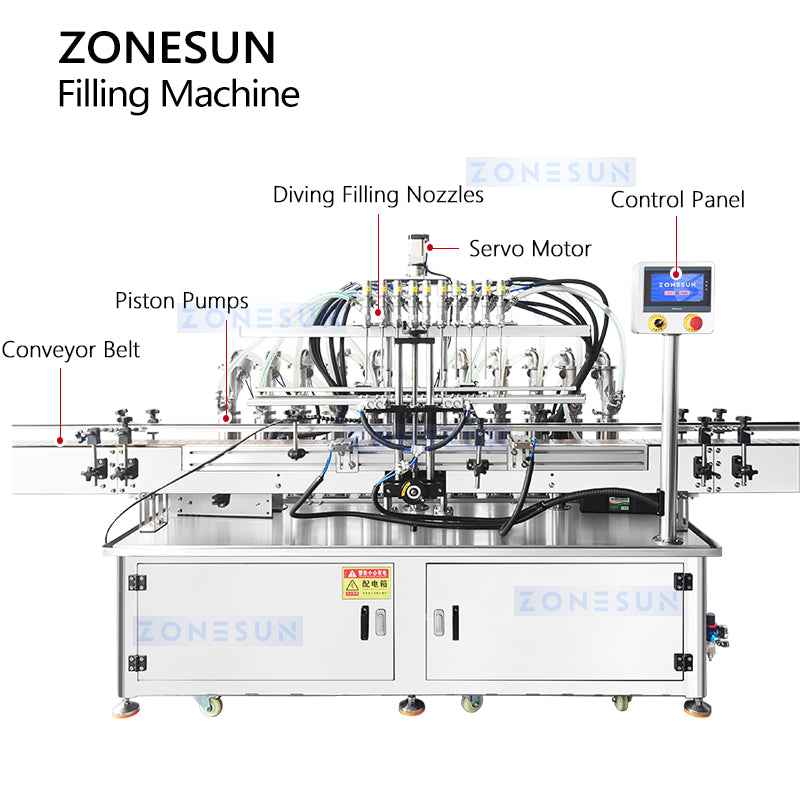

The ZONESUN ZS-SV10HS Automatic 10-Head Piston Filling Machine offers high-precision quantitative control, allowing accurate and consistent dosing for each container. Its servo-driven piston system ensures repeatable volume delivery, while diving nozzles minimize splashing—ideal for foamy or viscous liquids. Designed for seamless integration with capping and labeling machines, it enables a fully automated production line that maximizes efficiency, precision, and hygienic operation.

Parameter

• Model: ZS-SV10HS
• Voltage: 220V / 110V
• Power Consumption: 4 kW

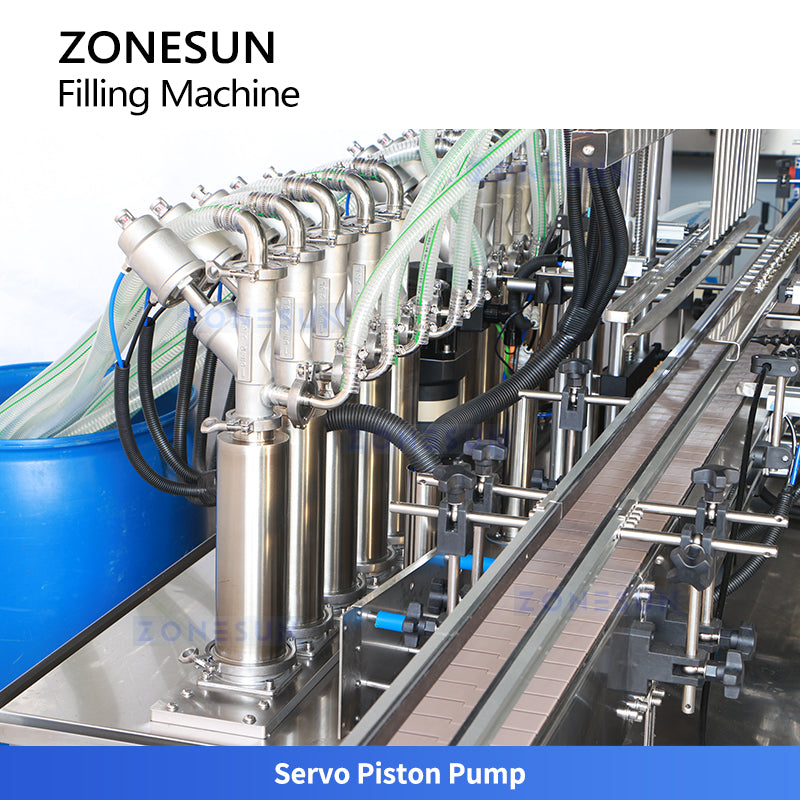

• Filling Pump Type: Servo Piston Pump
• Filling Nozzles: 10 heads (customizable)
• Filling Speed: Approx. 30–80 bottles/min (depends on filling range and material)
• Filling Range: 50–1000 ml (customizable)
• Filling Accuracy: ±0.5%

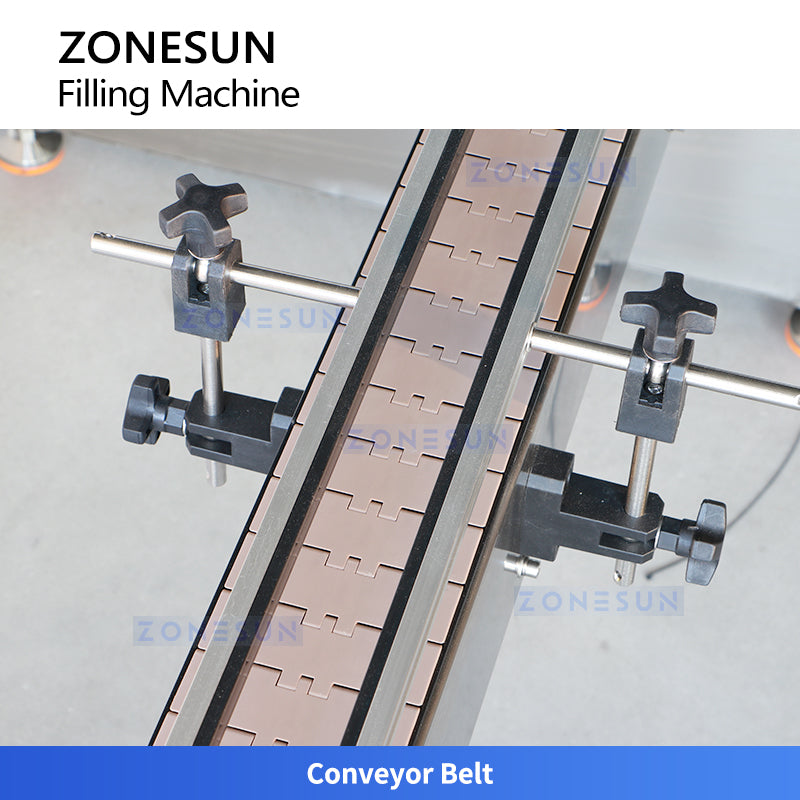

• Conveyor Dimensions (L × W): 5000 × 114 mm
• Air Pressure Requirement: 0.5–0.7 MPa
• Machine Dimensions (L × W × H): 5000 × 1020 × 1610 mm
