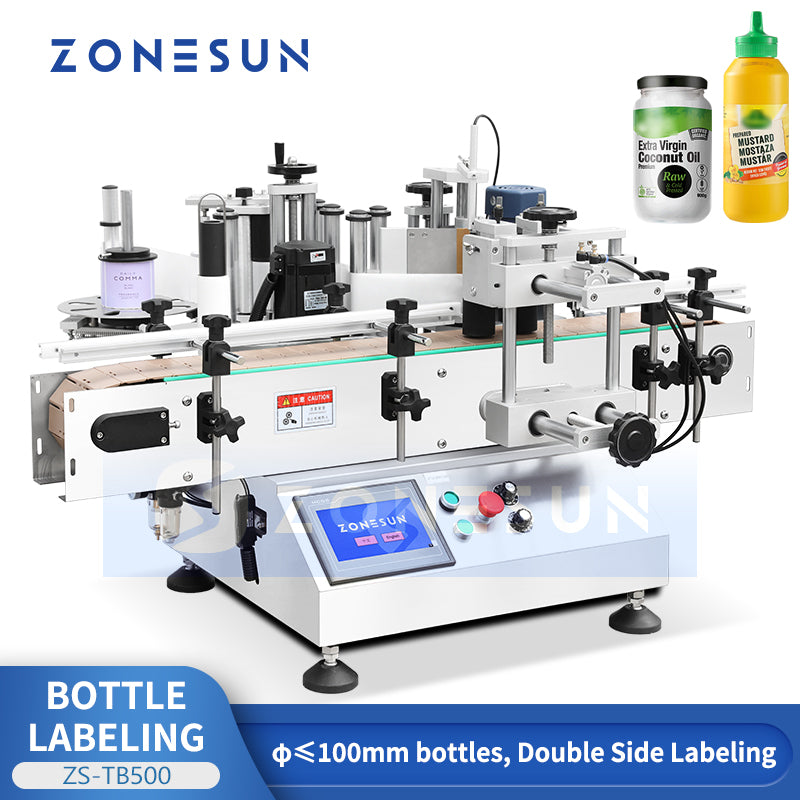

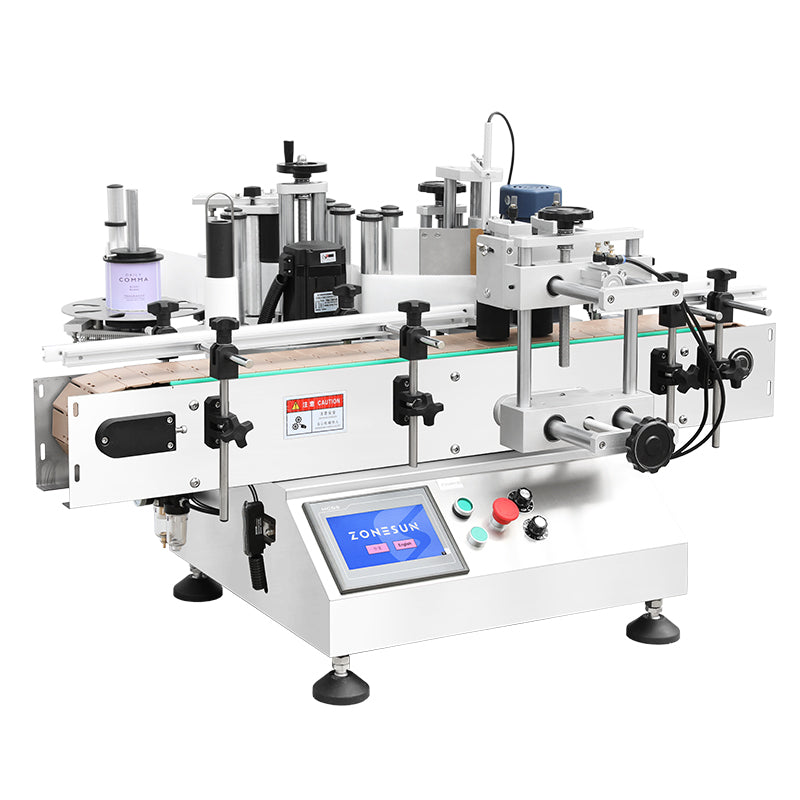

ZONESUN ZS-TB500 Double Side Round Bottle Positioning and Labeling Machine With Coder

ZONESUN ZS‑TB500 Double Side Round Bottle Labeling Machine with Coder

The ZS‑TB500 desktop round bottle labeling machine is designed for precise double‑side labeling, making it ideal for bottles such as wine and other cylindrical containers. Its space‑saving design offers full automation once settings are adjusted, ensuring consistent, high‑accuracy application. Equipped with a date coder option, it streamlines production for food, beverage, cosmetics, and chemical packaging lines requiring both efficiency and professional presentation.

Parameter

• Model: ZS-TB500
• Voltage: 110V-60HZ / 220V-50HZ
• Working Speed: 20-50bottles/min
• Suitable Labeling Size: 15-140mm (W) X 25-300mm (L)
• Roll inside diameter (mm): Φ76mm
• Roll outside diameter (mm): ⩽240mm
• Suitable Bottle Diameter: ⩽100mm
• Package Size: 1285*795*840mm
• Package Weight: 118kg

Product Highlights

• High Speed: 20–50 bottles/min for efficient production
• Single & Double-Side Labeling: Versatile for various packaging needs
• Wide Label Compatibility: Supports labels 15–140 mm (W) × 25–300 mm (L)
• Universal Bottle Fit: Suitable for bottles up to φ100 mm diameter
• Compact Desktop Design: Saves workspace without sacrificing automation

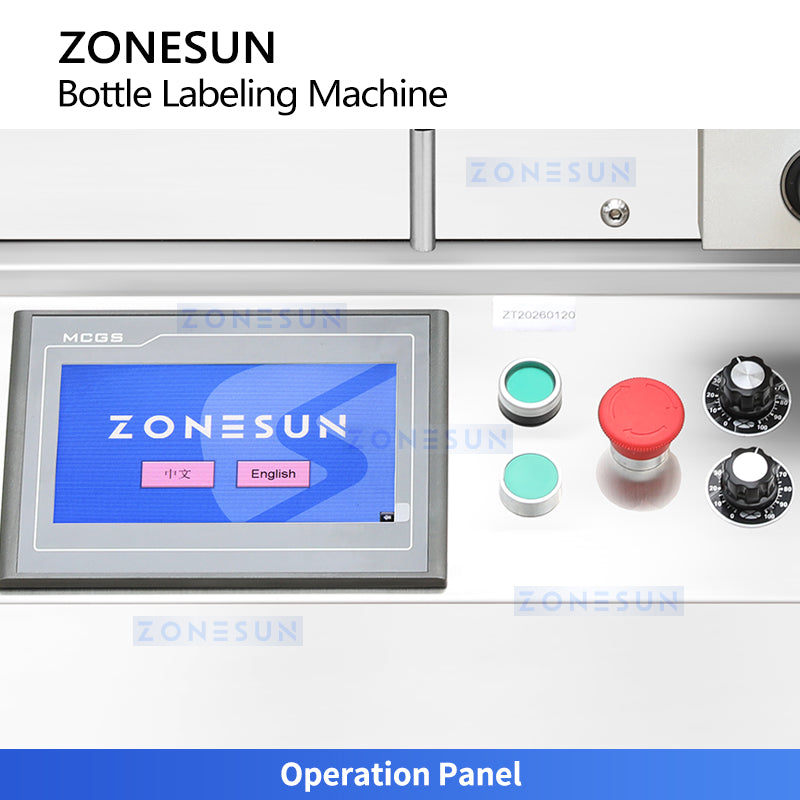

Operation Panel

Can be set into English interface to easily manage delay times and working speeds via a touchscreen, featuring an auto-stop counter to achieve zero-waste target production.

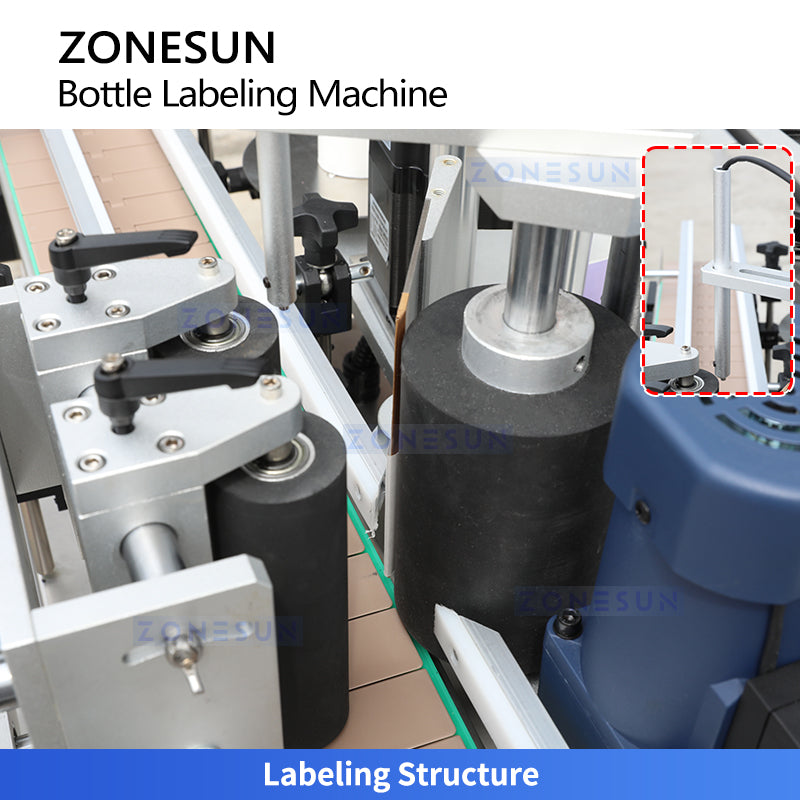

Labeling Structure

Rotates bottles via three wheels for bubble-free double-side labeling, using an electric eye to detect containers and prevent missed labels.

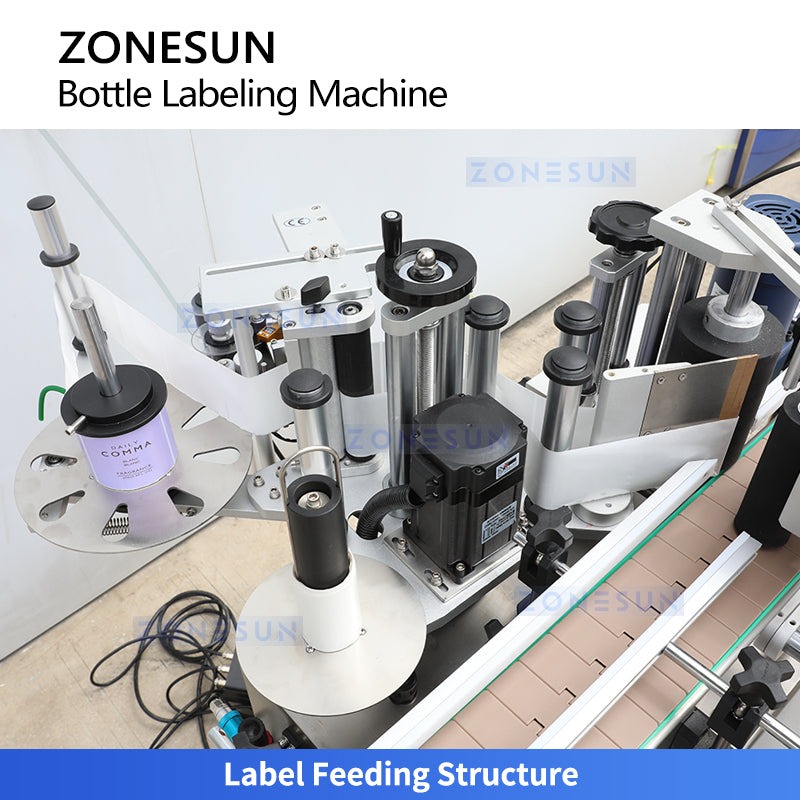

Label Feeding Structure

Unwinds and transports label rolls smoothly into the labeling structure via guiding rollers and a motor drive, maintaining precise web tension to prevent tearing.

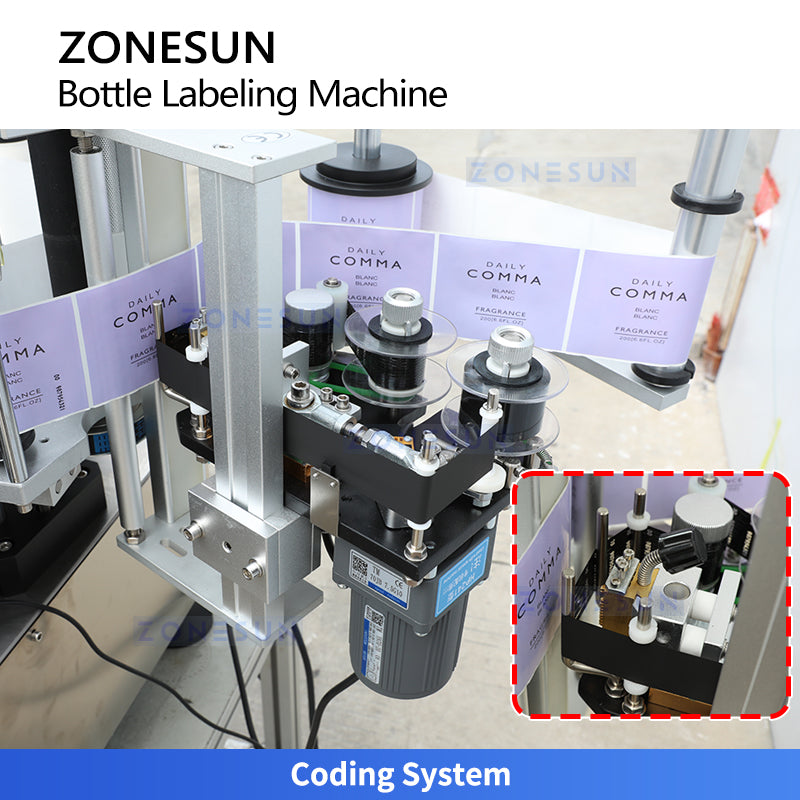

Coding System

Prints dates and batch numbers clearly onto labels via a heat-transfer mechanism before labeling, guaranteeing smudge-free tracking.

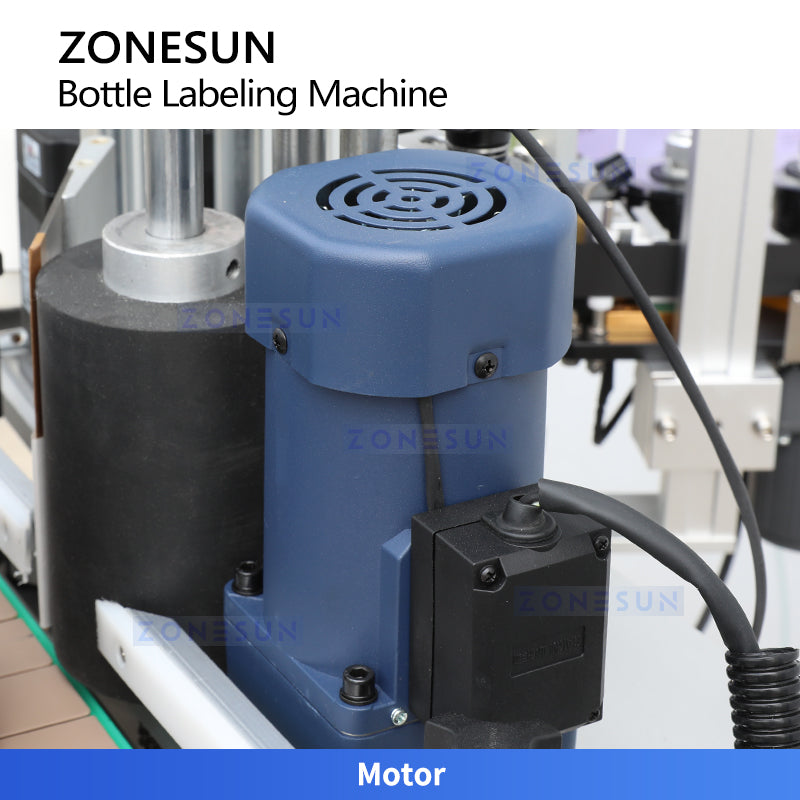

Motor

Drives core labeling mechanisms via a high-quality motor to ensure stable, non-stop, and long-term operation under intensive workloads.

Conveyor Belt

Transports containers smoothly via a variable-speed conveyor belt, supporting flexible guide rail adjustments to fit bottle diameters under 100mm and enhance layout efficiency.

Why choose the ZS-TB500?

• Precise Double-Side Labeling: Designed specifically for accurate double-sided labeling, making it ideal for wine and other cylindrical containers.
• Space-Saving & Automated: Its compact desktop design saves valuable workspace. Once the settings are adjusted, it operates fully automatically to ensure consistent, high-accuracy label application.
• Customizable Date Coding: It comes with an optional date coder, allowing you to streamline production and print essential batch or date information directly onto the labels.
• Versatile Compatibility: It accommodates a wide range of label sizes (15-140mm W x 25-300mm L) and bottles with a diameter of up to 100mm.
• Efficient Production Speed: Capable of labeling 20 to 50 bottles per minute, it provides a highly efficient solution for packaging lines.
• Broad Industry Application: Perfectly suited for food, beverage, cosmetics, and chemical packaging lines that require both operational efficiency and a professional presentation.

Applications

It is highly suitable for packaging lines across multiple sectors, including food, beverages, cosmetics, and chemical industries. Such as wine bottles and other round bottles with a diameter of up to 100mm.
