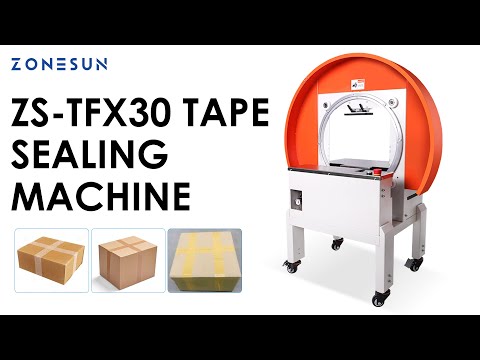

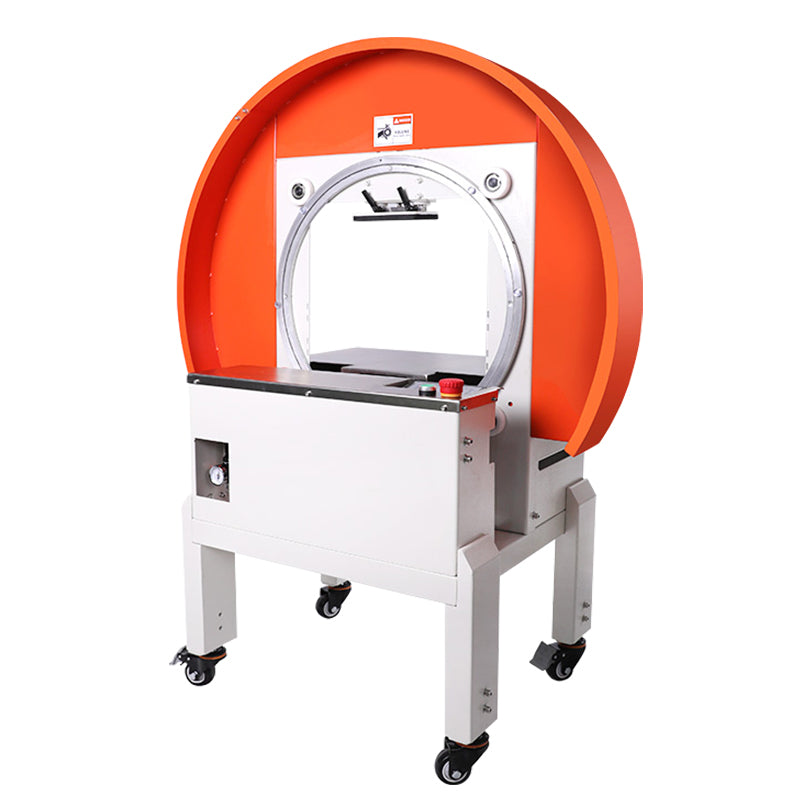

ZONESUN ZS-TFX30 Carton Orbital Wrapper Cross-Taping Machine Ring‑type Tape Sealer
ZONESUN ZS-TFX30 Carton Orbital Wrapper Cross-Taping Machine Ring‑type Tape Sealer
Regular price
$1,450.00 USD
Regular price
Sale price
$1,450.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
DESCRIPTION

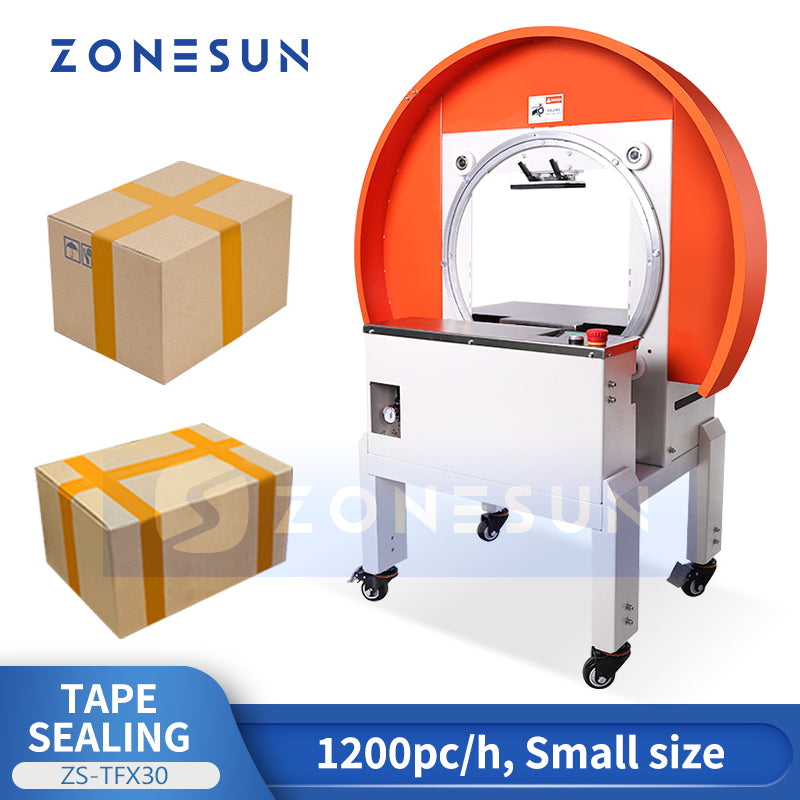

Introducing our ZONESUN ZS‑TFX30 double‑seal orbital taping machine—also known internationally as a ring‑type carton tape sealer / cross‑taping box wrapper. This innovative machine automatically seals the carton flaps and then wraps adhesive tape 360° around the box, creating a strong, tamper‑evident double seal that prevents tape from unraveling during shipping. With a compact footprint, 1200 pcs/h throughput, and plug‑and‑play, user‑friendly operation, it’s the ideal solution for e‑commerce fulfillment centers, logistics hubs, and production lines seeking high‑speed, small‑size, automatic carton packaging.
ZS-TFX30 Carton Sealing Machine – Technical Specifications
- Model: ZS-TFX30
- Voltage: AC220V / 50–60Hz
- Power Consumption: 120W
- Sealing Speed: 15–20 pcs/min
- Sealing Tape Width: 45 mm
- Workbench Height: 600–650 mm
- Max Sealing Size: Unlimited × 400 × 300 mm (L × W × H)
- Min Sealing Size: 100 × 80 × 40 mm (L × W × H)

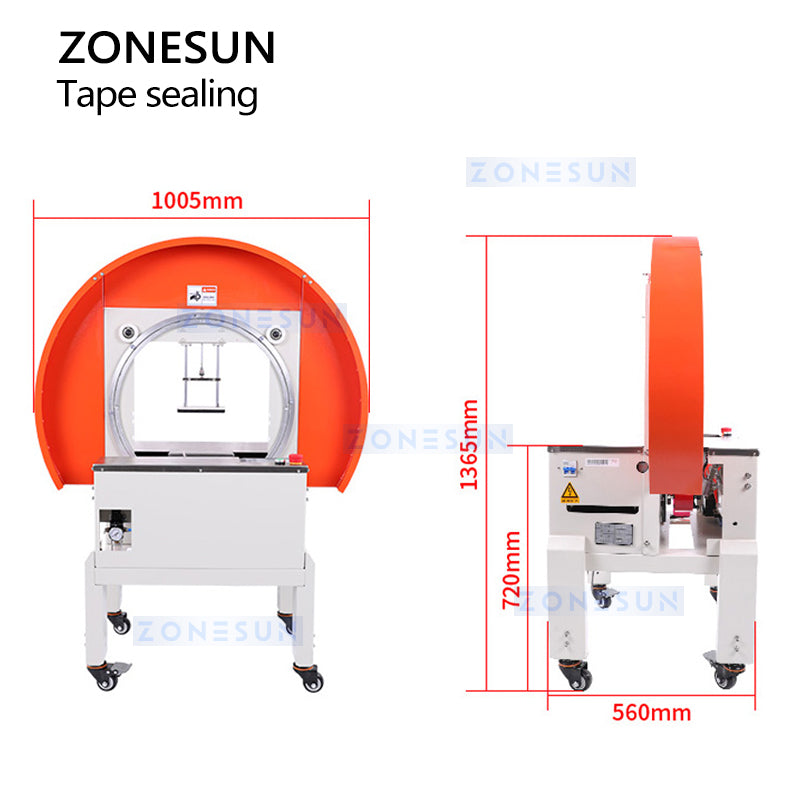

- Machine Package Size:
- ZS-TFX30: 62 × 80 × 121 cm
- ZS-FXC5050: 122 × 97 × 147 cm

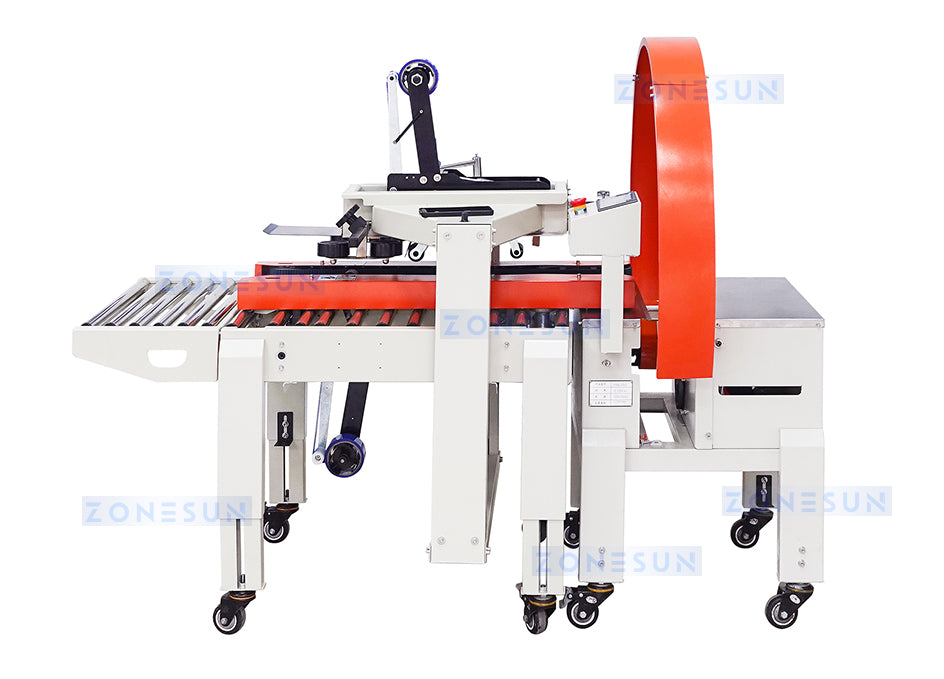

ZS-TFX30 + ZS-FXC5050 Combination Carton Sealer – Technical Specifications
- Model: ZS-TFX30 + ZS-FXC5050
- Voltage: AC220V / 50–60Hz
- Power Consumption: 120W
- Sealing Speed: 15–20 pcs/min
- Sealing Tape Width: 45 mm
- Workbench Height: 600–650 mm
- Max Sealing Size : Unlimited × 400 × 300 mm (L × W × H)
- Min Sealing Size: 100 × 80 × 40 mm (L × W × H)
- Min Combined Working Size : 195 × 80 × 90 mm (L × W × H)
- Combined maximum working size:Unlimited*400*300mm(L*W*H)
-
Machine Package Size:
- ZS-TFX30: 62 × 80 × 121 cm
- ZS-FXC5050: 122 × 97 × 147 cm
