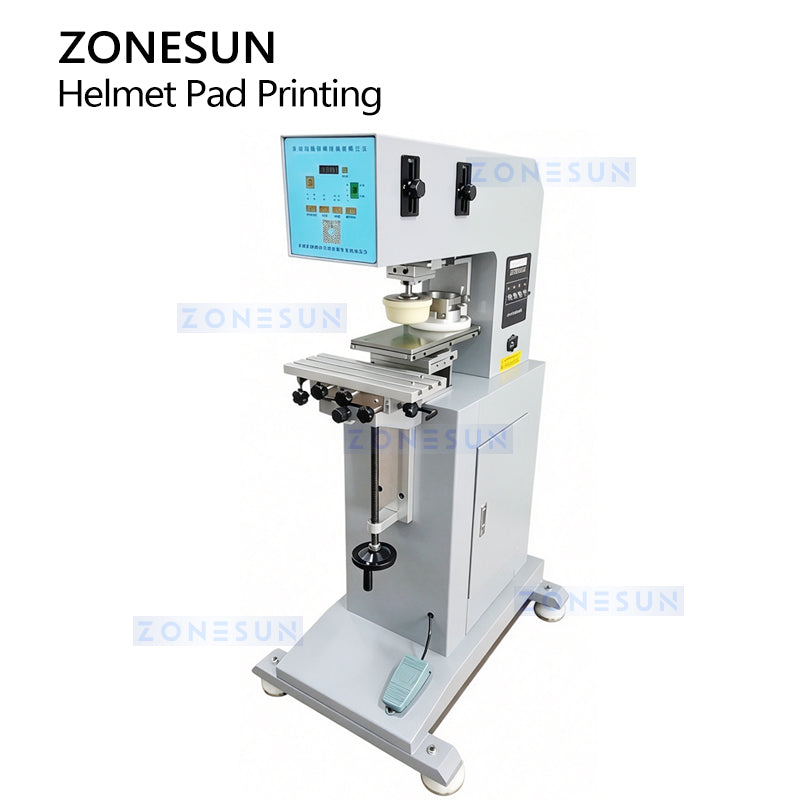

ZONESUN ZS-VTQYY2: Semi-Automatic Single-Color Helmet Pad Curved Surface Logo Printing Machine

ZONESUN ZS-VTQYY2: Semi-Automatic Single-Color Helmet Pad Curved Surface Logo Printing Machine

Description

The ZONESUN ZS-VTQYY2 Semi-Automatic Single-Color Helmet Pad Printing Machine is designed for printing logos, graphics, text, and patterns on curved and uneven surfaces such as helmets. It uses a silicone printing pad and pneumatic drive system to transfer inked images from the printing plate onto the product surface, with a printing speed of up to 4,000 pcs/hour. Featuring a digital control panel, adjustable printing position, ink application system, and foot pedal control, the machine provides flexible operation for products with different shapes and printing areas. It supports 100 × 300 mm and 150 × 300 mm printing specifications and is also suitable for compatible plastic, hardware, textile, electrical, toy, gift, and other products.

Parameter

• Machine Model: ZS-VTQYY2
• Power Supply: AC 220 V
• Printing Speed: Up to 4,000 pcs/hour
• Maximum Printing Diameter: Φ120 mm
• Workpiece Thickness Range: 0–50 mm
• Drive Type: Pneumatic
• Printing Specification: 100 × 300 mm / 150 × 300 mm
• Machine Dimensions (L × W × H): 550 × 750 × 1255 mm
• Machine Weight: 65 kg
• Applications: Automotive, Stationery, Advertising, Daily Necessities, Gifts, Electronics, Toys, Instruments, Garments, Washing Products

Key Features

Digital Control Panel

Provides centralized machine control for convenient setup, operation, and adjustment of the semi-automatic printing cycle.

Silicone Printing Pad

Picks up the inked image from the printing plate and transfers it onto compatible curved, concave, convex, or irregular product surfaces.

Ink Application System

Applies ink to the printing plate and prepares the engraved image for transfer by the silicone printing pad.

Printing Position Adjustment System

Allows precise mechanical adjustment of the printing position to accommodate different product sizes, shapes, and printing areas.

Foot Pedal Switch

Enables convenient activation of the printing cycle, allowing operators to position the workpiece manually before printing.

Pneumatic Drive System

Uses pneumatic operation to drive the pad printing process and support stable semi-automatic production.

Single-Color Printing

Designed for transferring single-color logos, text, graphics, and decorative patterns onto compatible product surfaces.

Curved Surface Printing

The flexible silicone pad adapts to compatible curved surfaces, helping transfer images onto areas that are difficult to print using flat printing methods.

Adjustable Printing Position

Allows the printing location to be adjusted according to the dimensions and geometry of the workpiece.

Two Printing Specifications

Supports documented printing specifications of 100 × 300 mm and 150 × 300 mm for different production requirements.

Compact Machine Structure

Features machine dimensions of 550 × 750 × 1255 mm, helping save installation space in production facilities.

Low-Noise Operation

Designed for low-noise operation during semi-automatic pad printing.

Benefits

Up to 4,000 Pieces/Hour

Provides a documented printing speed of up to 4,000 pieces/hour, supporting efficient production for compatible printing applications.

Consistent Image Transfer

The silicone printing pad transfers inked images from the printing plate onto the workpiece to support clear and consistent printing results.

Curved & Irregular Surface Printing

Suitable for compatible curved, concave, convex, and irregular surfaces that are challenging for conventional flat printing methods.

Flexible Printing Position Adjustment

Allows operators to adjust the printing position according to different workpiece dimensions and required printing locations.

Convenient Foot Pedal Operation

Enables the operator to activate the printing cycle while keeping both hands available for workpiece positioning.

Pneumatic Printing Operation

The pneumatic drive system supports the machine's semi-automatic pad printing process.

Single-Color Logo Printing

Provides a practical solution for printing logos, text, graphics, and decorative patterns in a single color.

Multiple Printing Specifications

Supports 100 × 300 mm and 150 × 300 mm printing specifications for different compatible products.

Compact Installation Footprint

The compact machine structure helps optimize available workspace in production facilities.

Flexible Product Compatibility

Suitable for compatible products across automotive, stationery, advertising, daily necessities, gifts, electronics, toys, instruments, garments, and related industries.

Straightforward Semi-Automatic Operation

Combines a digital control panel, adjustable printing position, silicone pad, and foot pedal for convenient operation.

Reduced Manual Printing Work

Automates the image-transfer portion of the printing cycle, reducing repetitive manual printing operations while retaining manual workpiece positioning.

Application

Ideal for single-color pad printing of logos, text, graphics, and decorative patterns on helmets and other compatible products with curved, concave, convex, or irregular surfaces. The ZS-VTQYY2 uses a pneumatic drive system and flexible silicone printing pad to transfer inked images from the printing plate onto the workpiece. With an adjustable printing position, foot pedal operation, and support for printing specifications of 100 × 300 mm and 150 × 300 mm, the machine is suitable for compatible printing applications in automotive, stationery, advertising, daily necessities, gifts, electronics, toys, instruments, garments, washing products, and related industries.

Silicone Printing Pad

Picks up the inked image from the printing plate and transfers it onto curved helmet surfaces for consistent printing.

Ink Application System

Applies ink to the printing plate and prepares the engraved image for transfer by the silicone printing pad.

Printing Position Adjustment System

Allows precise adjustment of the printing position to accommodate different helmet sizes, shapes, and printing areas.

Foot Pedal Switch

Allows convenient hands-free activation of the printing cycle for easier product positioning and operation.

Why Choose the ZONESUN ZS-VTQYY2?

Up to 4,000 Pieces/Hour Printing Speed

Provides a documented printing speed of up to 4,000 pieces/hour for efficient semi-automatic production.

Single-Color Pad Printing

Designed for printing logos, text, graphics, and decorative patterns in a single color.

Flexible Silicone Printing Pad

Transfers inked images onto compatible curved and irregular surfaces for consistent printing results.

Pneumatic Drive System

Uses pneumatic operation for the pad printing cycle.

Adjustable Printing Position

Allows the printing location to be adjusted according to workpiece size, shape, and printing requirements.

Digital Control Panel

Provides centralized machine control for convenient setup and operation.

Convenient Foot Pedal Control

Allows operators to activate the printing cycle while keeping both hands available for product positioning.

Two Printing Specifications

Supports 100 × 300 mm and 150 × 300 mm printing specifications.

Φ120 mm Maximum Printing Diameter

Supports a documented maximum printing diameter of Φ120 mm for compatible workpieces.

0–50 mm Workpiece Thickness Range

Accommodates compatible workpieces within the documented thickness range of 0–50 mm.

Compact Machine Design

Features dimensions of 550 × 750 × 1255 mm and a machine weight of 65 kg.

Wide Product Compatibility

Suitable for compatible printing applications across automotive, stationery, advertising, gifts, electronics, toys, instruments, garments, washing products, and daily necessities.

Ideal Applications

Helmet Printing

Designed for printing logos, text, graphics, and decorative patterns on compatible helmet surfaces.

Automotive Components

Suitable for single-color marking and decoration on compatible automotive components with appropriate printing surfaces.

Stationery Products

Can print logos, text, and graphics on compatible stationery products.

Advertising Products

Suitable for printing promotional graphics, logos, and text on compatible advertising products.

Daily Necessities

Designed for decorative printing and product identification on compatible everyday products.

Gift Products

Suitable for printing logos, graphics, and decorative patterns on compatible gift items.

Electronic Products

Can print markings and graphics on compatible electronic product housings and components.

Toys

Suitable for single-color decorative printing on compatible toy surfaces.

Instruments

Can be used for printing identification marks, text, or graphics on compatible instruments.

Garments & Related Products

Suitable for compatible garment-related products that can be processed using the pad printing method.

Washing Products

Can print logos and graphics on compatible washing and cleaning-related products.

Curved & Irregular Products

Ideal for compatible products with curved, concave, convex, or irregular surfaces requiring localized single-color printing.
