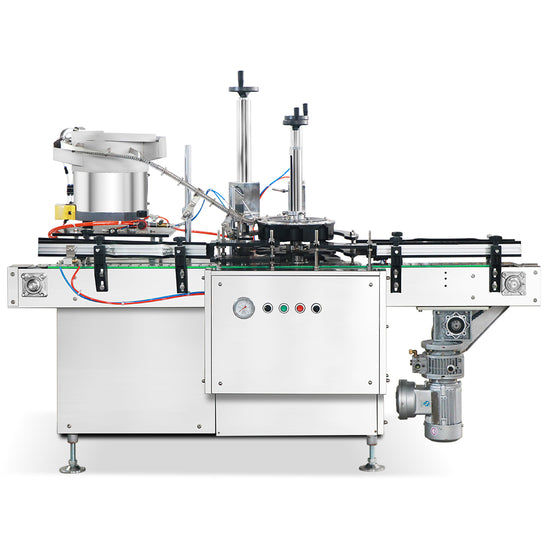

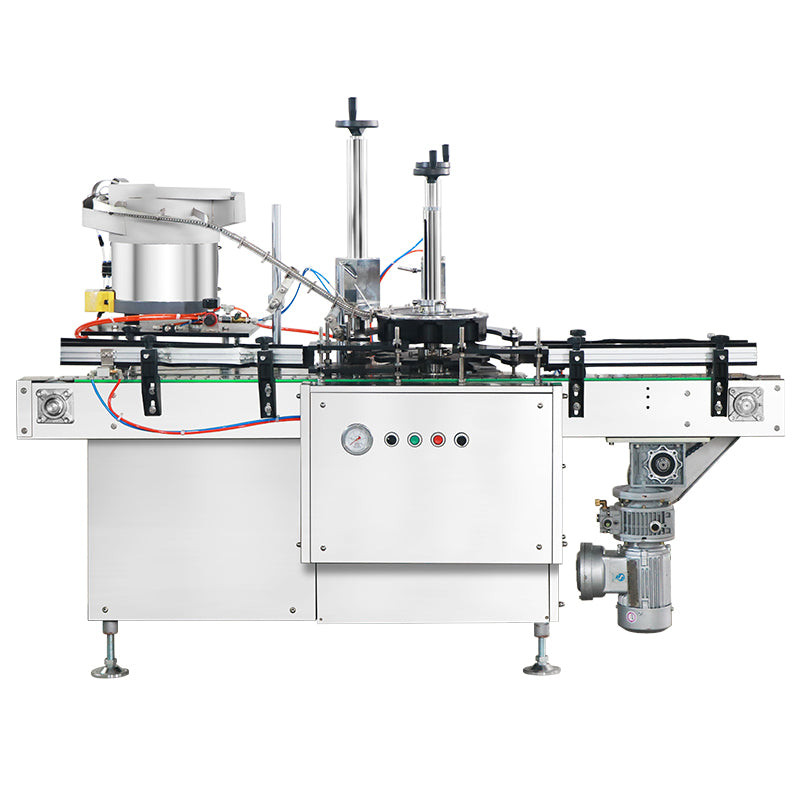

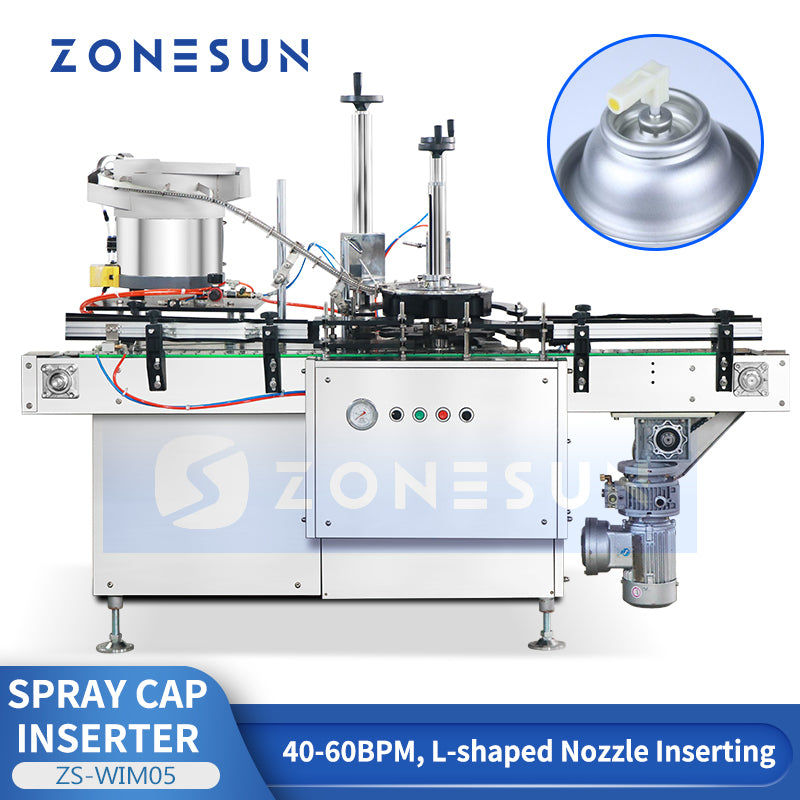

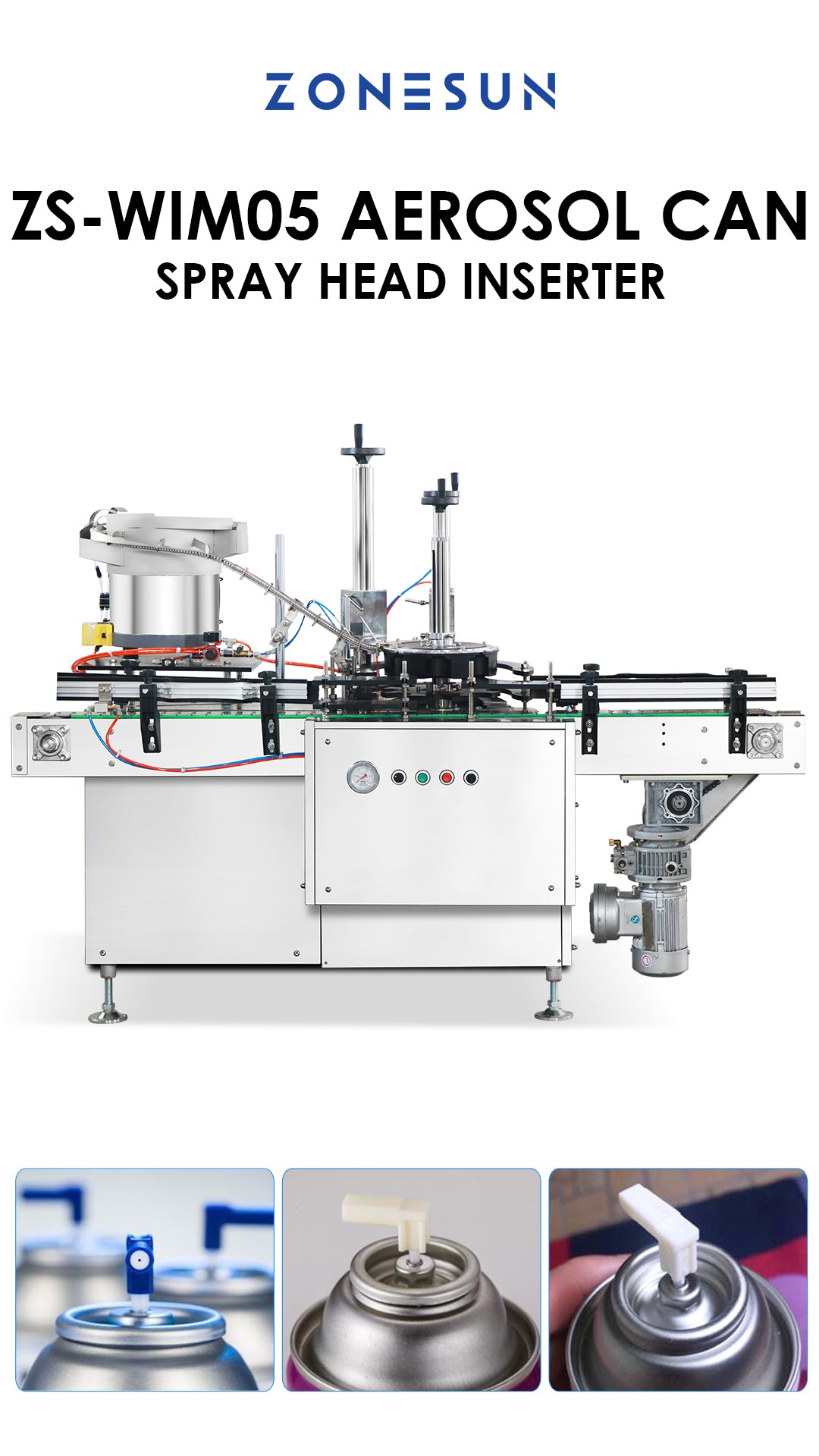

ZONESUN ZS-WIM05 Automatic Spray Nozzle Assembly Machine for Aerosol Cans

DESCRIPTION

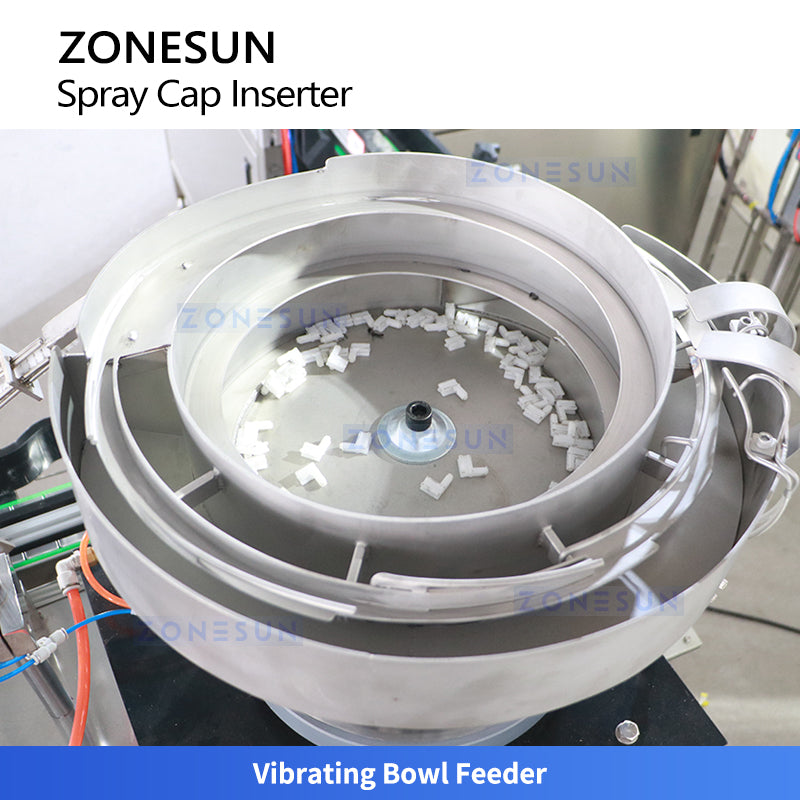

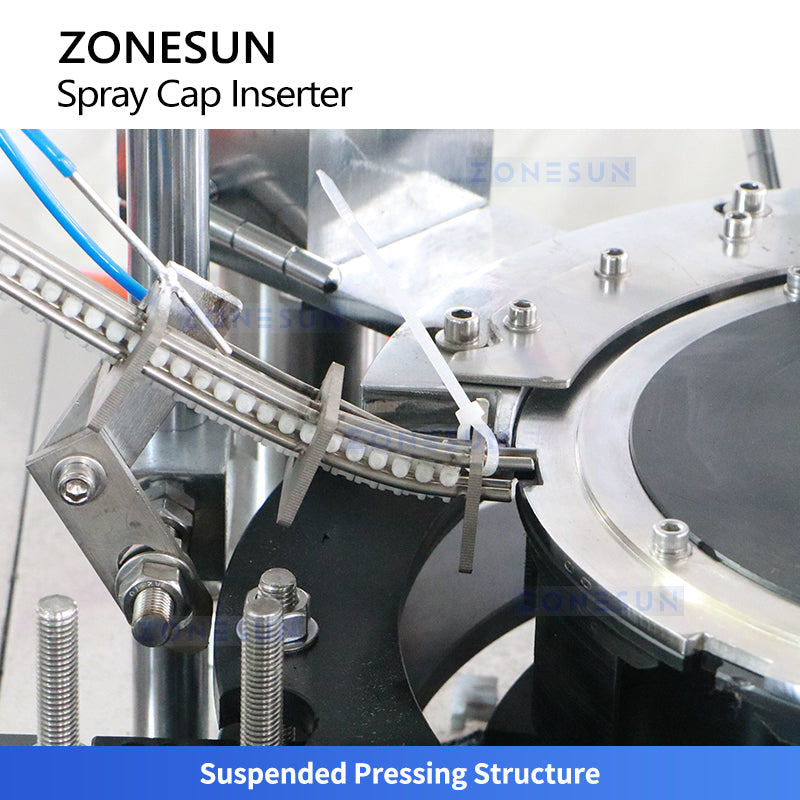

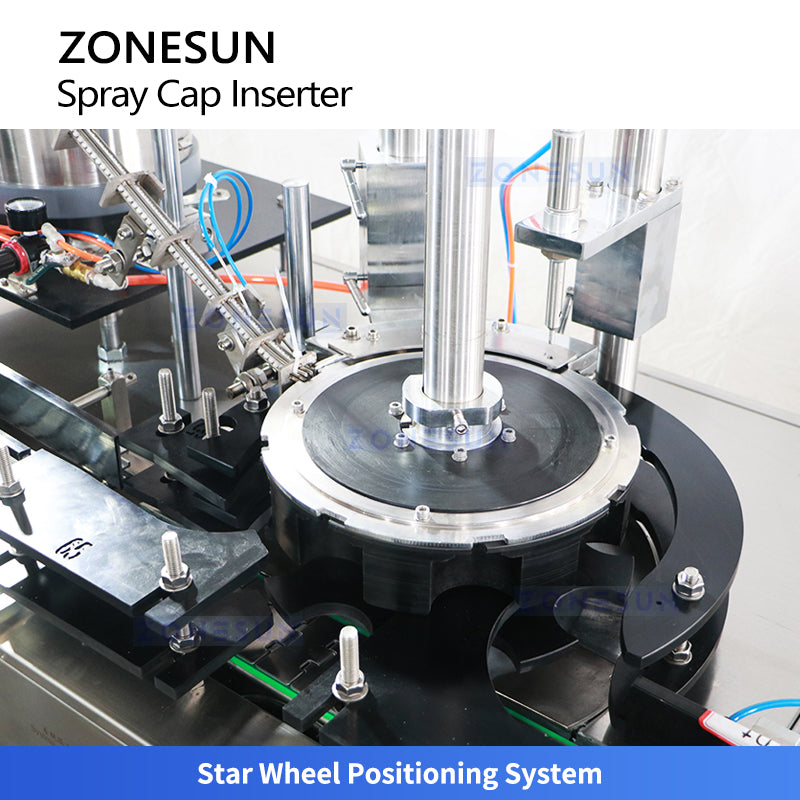

The ZONESUN ZS-WIM05 is a fully automatic spray nozzle assembly machine designed for aerosol cans used in air fresheners, disinfectants, and personal care products. It integrates nozzle sorting, positioning, and pneumatic pressing into a streamlined process that ensures accurate and secure fitting of L-shaped spray heads onto 1-inch valve stems. With a working speed of 40–60 cans per minute, the machine adapts to various can sizes through simple adjustments—no part replacement required. Its star-wheel alignment system, suspended pressing structure, and compact footprint make it an ideal solution for high-speed, multi-format aerosol packaging lines.

Parameter

• Model: ZS-WIM05
• Working Capacity: 40–60 BPM
• Aerosol Can Height: 90–315 mm
• Aerosol Can Diameter: Ø35–Ø65 mm
• Applicable Valve: 1 inch (25.4 mm)
• Air Pressure: 0.6–1 MPa
• Air Consumption: 0.3–0.5 m³/min
• Package Size: 1350 × 870 × 1650 mm
• Package Weight: 487 kg
