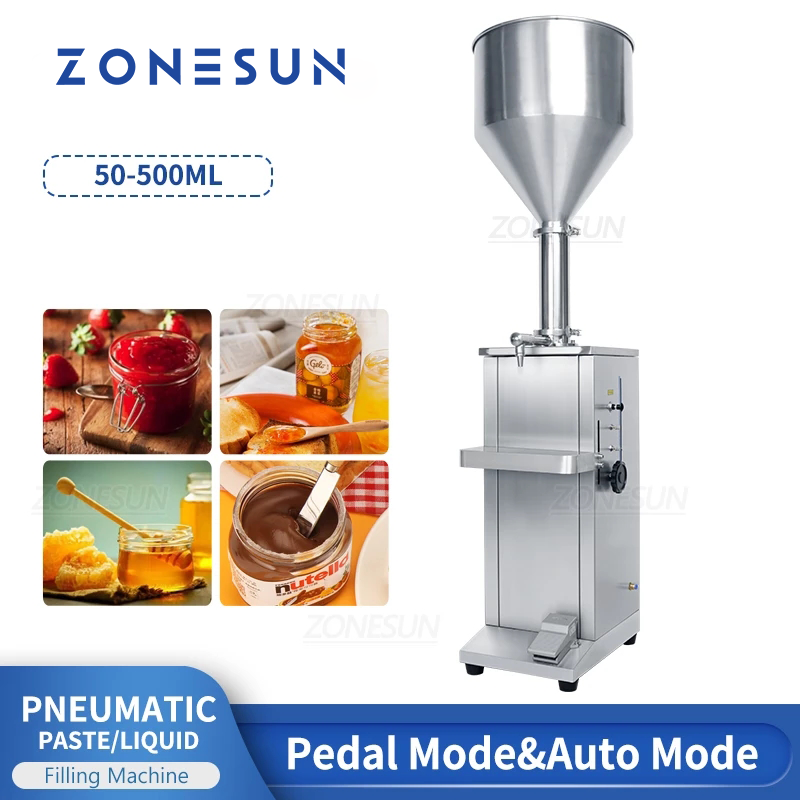

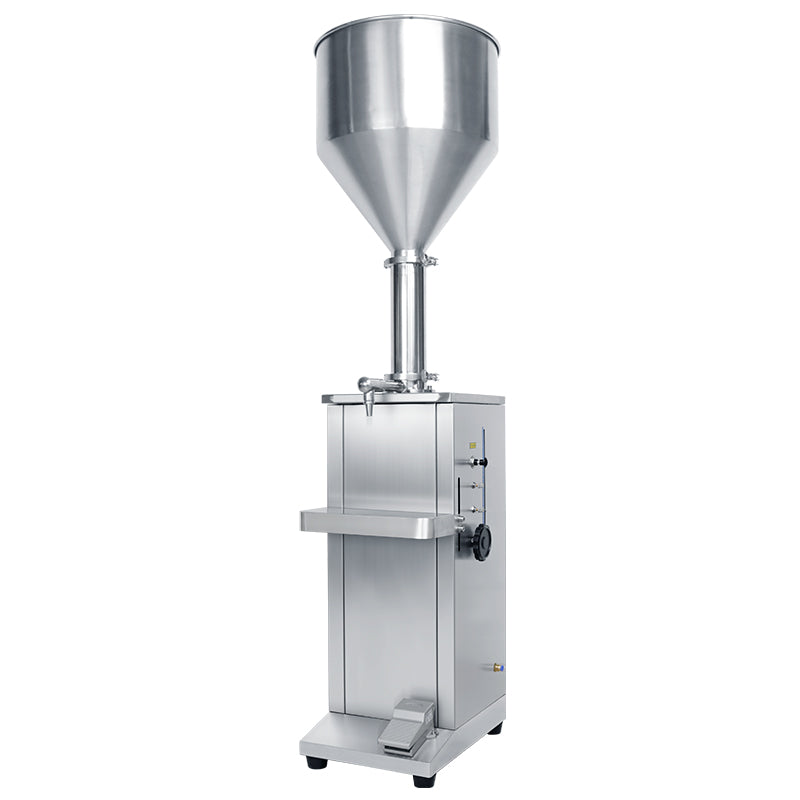

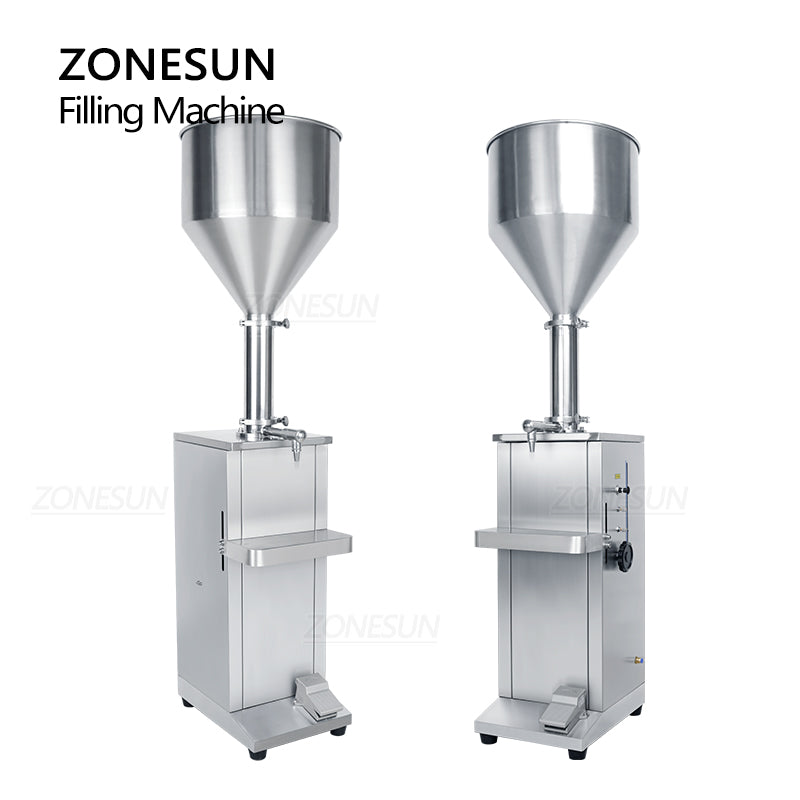

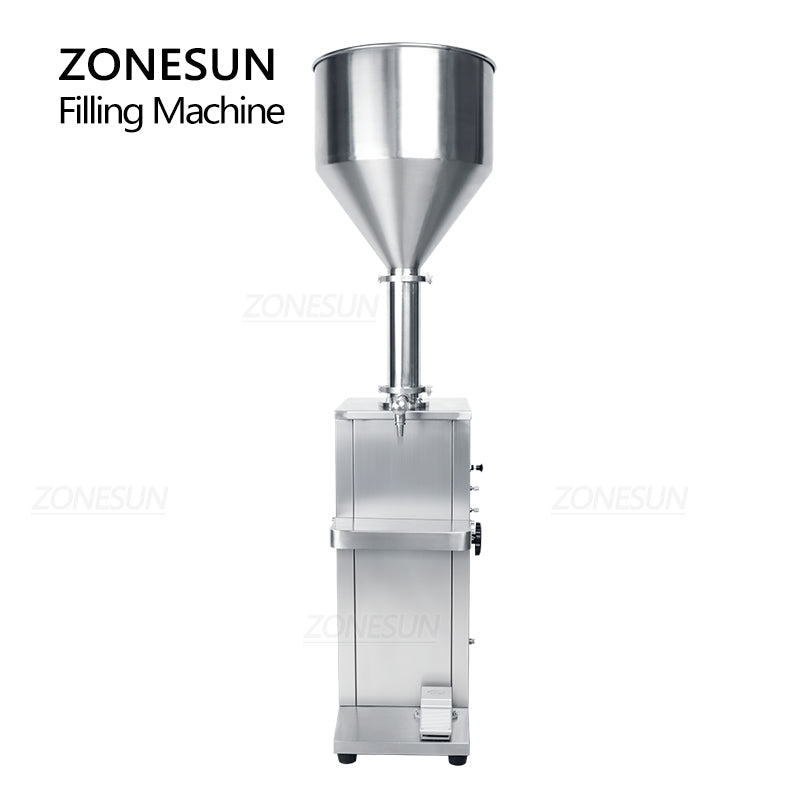

ZONESUN ZS-GT1V Fully Pneumatic Paste Liquid Filling Machine for Ointment Paste

Application

This fully pneumatic filling machine is designed for accurate dispensing of paste and liquid products such as gel, detergent, alcohol, and more. Its robust design and 30L hopper make it ideal for medium-volume production in daily chemical, beverage, and pharmaceutical industries. Easy to operate and maintain, it delivers consistent performance across a wide range of viscosities. Note: Requires external air compressor (sold separately).

Parameter
Machine Name Fully Pneumatic Paste/Liquid Filling Machine
Machine Model ZS-GT1V
Filling Range 5–100 ml / 10–300 ml / 50–500 ml / 100–1000 ml
Filling Speed Approx. 1–25 bottles/min (depends on bottle & material)

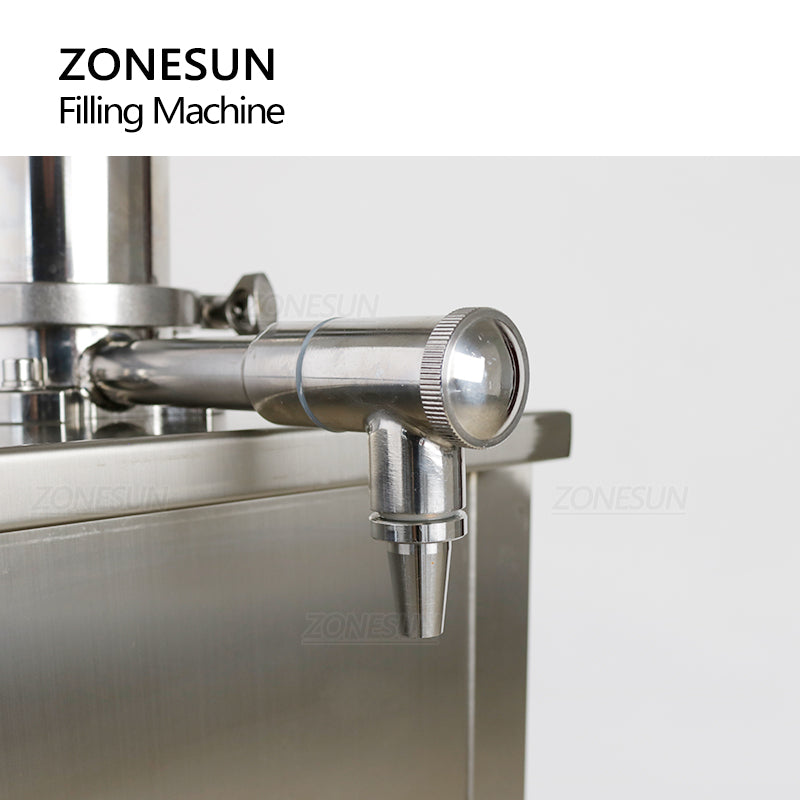

Filling Nozzle Diameter 8 mm (OD)

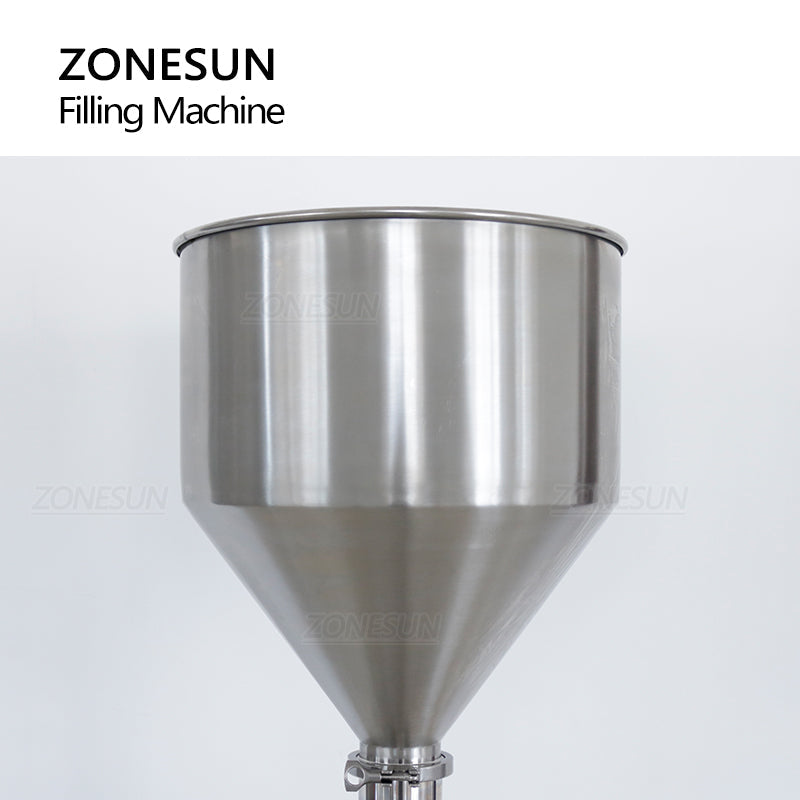

Hopper Capacity 30 L
Filling Accuracy ±1%
Air Pressure 0.4–0.6 MPa
Air Compressor Connector Size 8 mm (OD)
Machine Weight 32 kg
Machine Size 300 × 320 × 1555 mm (L × W × H)
Package Weight Approx. 46 kg
Package Size 1595 × 450 × 460 mm

Notice

This machine should work with air compressor, which should be bought separately. Please contact us if you need.
