DESCRIPTION

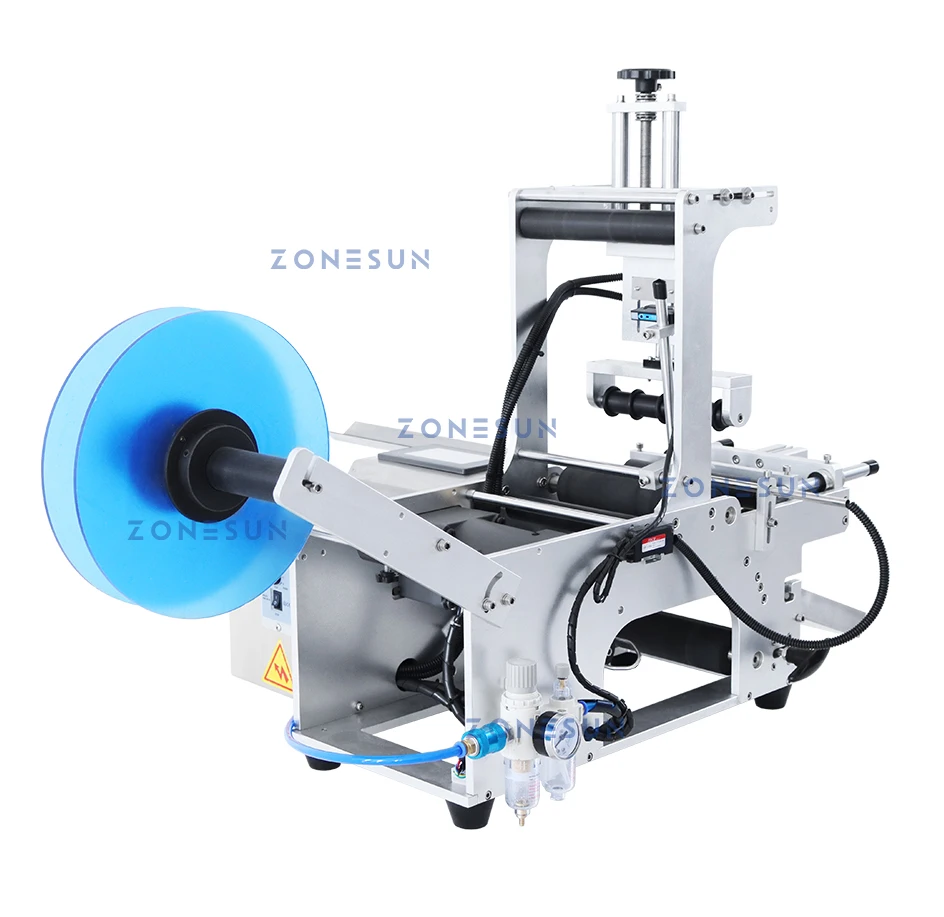

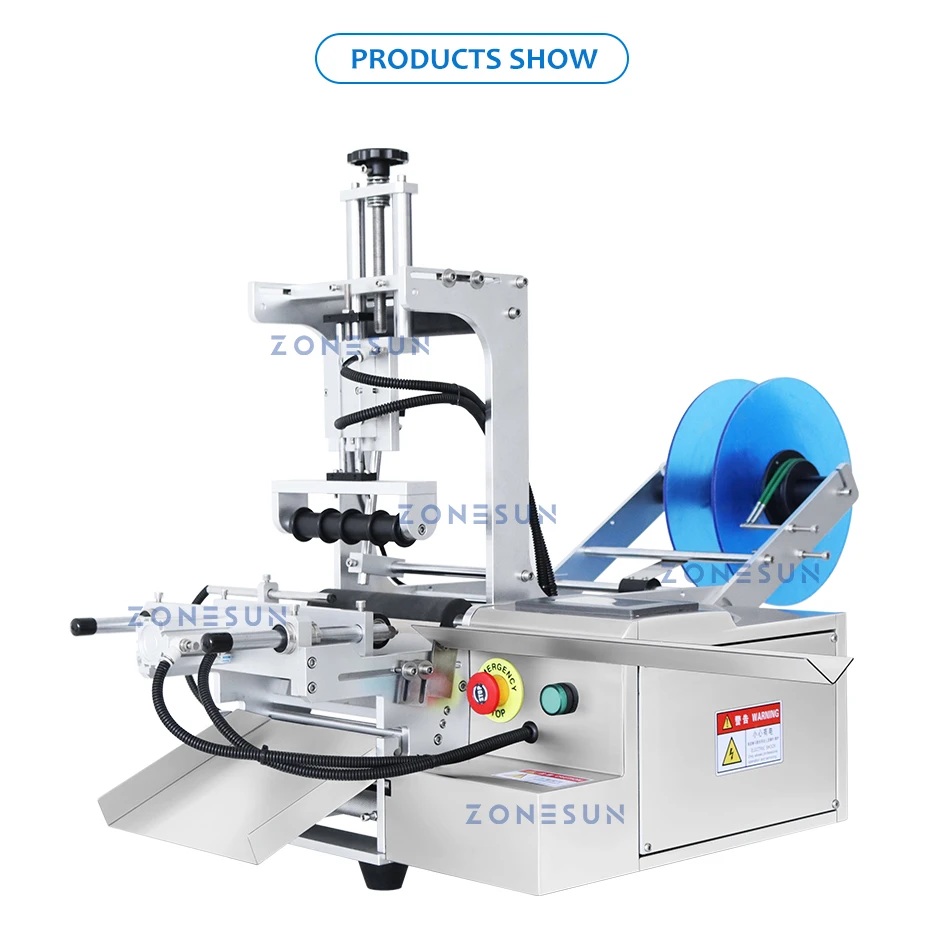

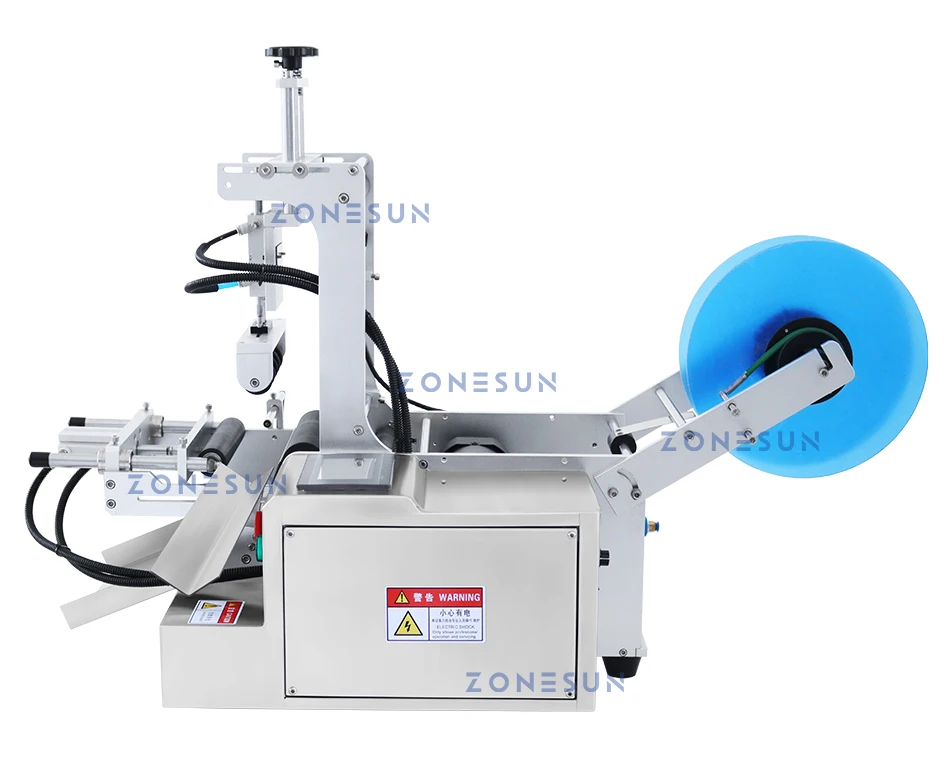

The ZONESUN ZS-TB101 is a compact tabletop labeling machine designed for round bottles. It features a slideway and unloading slide for smooth bottle feeding and efficient operation. Suitable for single or double-sided labeling, this machine supports bottles with diameters from Φ10–120 mm and heights up to 200 mm. With a labeling speed of 20–40 pcs/min, it offers reliable performance for small to medium-scale production. Its durable build, precise label placement, and user-friendly design make it ideal for cosmetics, beverages, pharmaceuticals, and more.

PARAMETER

• Machine Model：ZS-TB101

• Voltage：110V / 220V, 50–60Hz

• Power：100W

• Labeling Capacity：20–40 pcs/min

• Suitable Bottle Size Diameter: Φ10–120 mm, Height: ≤200 mm

• Air Pressure：0.4–0.6 MPa

• Label Roll Inner Diameter：Φ76 mm

• Label Roll Outer Diameter：≤250 mm

• Label Exit Direction：Right

• Air Compressor Port：8 mm

• Package Size Approx.：820 × 620 × 480 mm

• Package Weight Approx. ：53 kg

PRODUCT DETAILS

CONTROL PANEL

PLC controls, touch screen, easy to use.

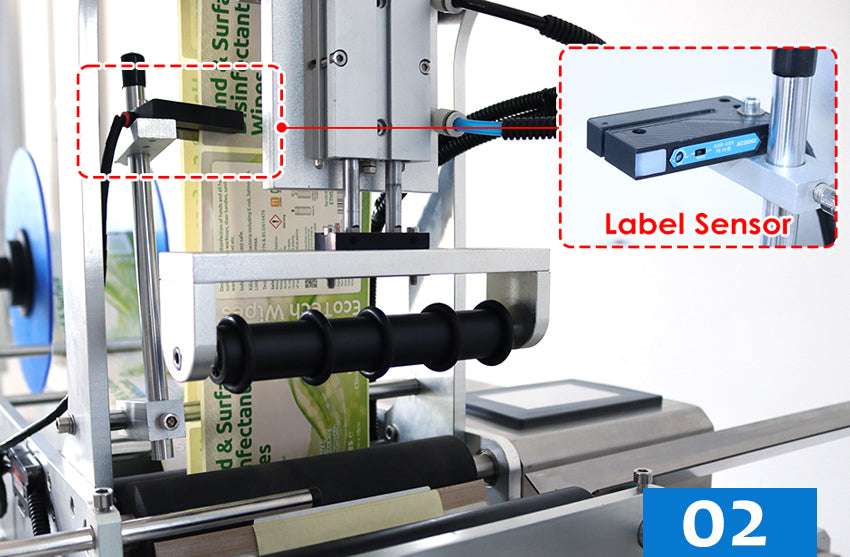

LABEL SENSOR

For labels, smart detecting, high accuracy.

ELECTRIC EYE

For products, simple and efficient.

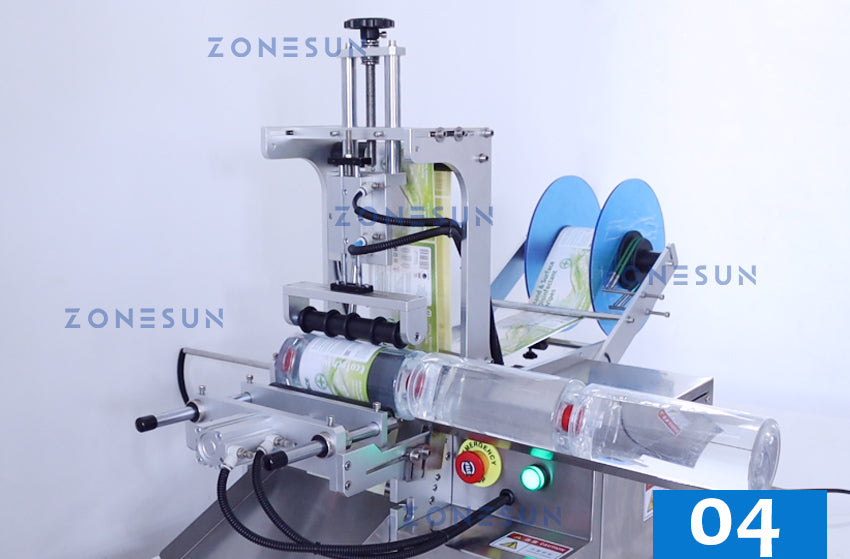

FEEDING

A slide way design for manually loading, efficient

ADJUSTMENT

Automatically unload the products afterl abeling. This function can be turned off when it comes to big bottles.
